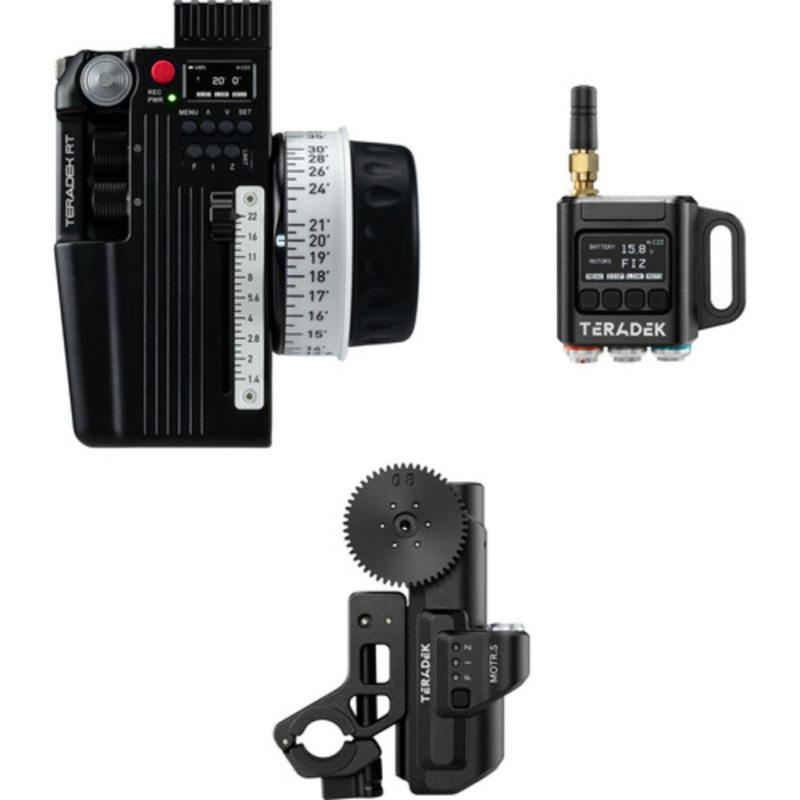

Teradek RT FIZ Wireless Lens Control Kit with CTRL.3, MDR.X & MOTR.S - 15-0047-1S

Wirelessly control your lens focus, iris, and zoom with this RT FIZ Wireless Lens Control Kit from Teradek, featuring the upgraded MOTR.S lens motor.
The kit includes a CTRL.3 wireless lens controller, an MDR.X 3-channel wireless receiver, and the compact MOTR.S.
The improved MOTR.S is more lightweight than previous models and is capable of fast focus, iris, and zoom adjustments.
Other accessories include six imperial focus overlay mapping disks, five metric focus overlap mapping disks, and RT CTRL iris strip sliders.
Easily set up your kit thanks to its included cables, mounting brackets, and LP-E6 battery.
An extra-large, hard-shell case with custom foam allows you to take the entire kit on the go.

- MDR.X 3-Channel Lens Control Receiver
- MOTR.S Lens Motor
- CTRL.3 Wireless Lens Controller
- Pre-Marked Focus Rings, Iris Strips
- Motor, Controller, USB & Power Cables
- LP-E6 Battery with Charger
- Mounting Brackets, Neck Strap
- Hard-Shell Case with Custom Foam

In The Box:
Teradek MDR.X 3-Channel Lens Control Receiver with Bluetooth
Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
5 x Teradek White Disc for CTRL.1/CTRL.3 Controller
USB Type-A to Micro-USB Type-B Cable (3')
5-Pin to Micro-USB SmallHD Monitor Interface Cable (1.3')
Pre-Marked Focus Ring (0.25m Minimum Focus)
Pre-Marked Focus Ring (0.5m Minimum Focus)
Pre-Marked Focus Ring (1m Minimum Focus)
Pre-Marked Focus Ring (2m Minimum Focus)
Pre-Marked Focus Ring (3m Minimum Focus)
Pre-Marked Iris Ring (1 - 32)
Iris Strip Slider 0 (1 - 22)
Iris Strip Slider 10 (1.4 - 22)
Iris Strip Slider 20 (2 - 22)
Iris Strip Slider 30 (2.8 - 22)
Large Teradek Case with RT Motion 3 Motor
Teradek RT MOTR.S Lens Motor
0.8 MOD Gear
MOTR.S Bracket
Teradek Bit 718 2-Pin LEMO to LEMO Alexa Cable (18")
Teradek 2-Pin LEMO to P-Tap Cable (18")
Teradek ARRI Run/Stop Cable for MDR.X Receiver (24")
Teradek RED Run/Stop Cable for MDR.X Receiver (16")
Teradek LANC Run/Stop Cable for MDR.X Receiver (16")
Teradek 5-Pin to Micro-USB 2.0 Type-B Monitor Cable for SmallHD Overlays (16")
Teradek RT 5-Pin to USB Type-A Interface Cable for SmallHD 1300 & 1700 Series Monitors
Teradek RT SmallHD Monitor Interface Cable (24")
Teradek RT Wired-Mode Controller Cable (6.6')
Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (24")
Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
Teradek White Disc for CTRL.1/CTRL.3 Controller
Teradek Pre-Marked Focus Ring (10", Imperial)
Teradek Pre-Marked Focus Ring (20", Imperial)
Teradek Pre-Marked Focus Ring (3.5', Imperial)
Teradek Pre-Marked Focus Ring (6', Imperial)
Teradek Pre-Marked Focus Ring (10', Imperial)
CTRL 9-Pin EXT to 6-Pin Cable for RED KOMODO/RAPTOR
Pre-Marked Focus Ring (14", Imperial)
Canon LP-E6 Lithium-Ion Battery (1600mAh)
Canon LP-E6 Charger
Extra-Large Hard-Shell Case with Custom Foam

MDR.X 3-Channel Lens Control Receiver with Bluetooth
General
Compatibility: Teradek RT FIZ Controllers
Display
Panel Type: OLED
USB I/O: 1 x Mini-USB Integrated Male Input
Power
Power Source: Battery (Not Included)
DC Input Power: 7 to 17 VDC
Environmental
Operating Temperature: -4 to 122°F / -20 to 50°C
Storage Temperature: -40 to 185°F / -40 to 85°C
Physical
Mounting:
- Side: 1 x Through Hole
- Multiple x 1/4"-20 Threaded Hole
Material of Construction: Sluminum Slloy
Dimensions: 3.7 x 2.3 x 0.7" / 9.4 x 5.8 x 1.8 cm
Weight: 4.8 oz / 136 g

CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
System
Number of Channels: 3
Maximum Range:
- Outdoor: 5000' / 1524 m
- Indoor: 500' / 152.4 m
Wireless Frequency: 2.4 GHz
Receiver / Motor
Bluetooth: No
Included Drive Gear: No
Operating Temperature: -4 to 122°F / -20 to 50°C
Storage Temperature: -40 to 185°F / -40 to 85°C
Transmitter / Controller
Transmission Delay: 2 ms
Transmitter I/O:
- 1 x LEMO 5-Pin
- 1 x USB-A
Battery Type: LP-E6
Material of Construction: Aluminum
Dimensions: 5.1 x 3.3 x 6.2" / 12.95 x 8.38 x 15.75 cm
Weight: 1.66 lb / 754 g

RT MOTR.S Lens Motor
General
Gear Pitch: 0.8 MOD
Maximum Torque:
- 0.95 nm (Peak)
- 0.3 nm (continuous)
Maximum Speed: 297 teeth per second
Connectors: 2 x 0B 4-Pin
Power
Power Source: Plug-In Power
DC Input Power: 7 to 32 VDC
Operating Current:
- 1 A (Standby)
- 2 A (Maximum)
Environmental
Operating Temperature: 32 to 82°F / 0 to 50°C
Physical
Mounting:
- 1 x 15mm Rod Clamp
- 1 x 19mm Rod Clamp
Color: Black
Material of Construction: Aluminum
Dimensions: 4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
Weight: 6.5 oz / 184 g

Bit 718 2-Pin LEMO to LEMO Alexa Cable (18")
Connector 1: 2-pin LEMO
Connector 2: 2-pin LEMO
Length: 18" / 46 cm

2-Pin LEMO to P-Tap Cable (18")
Length: 18" (46 cm)
Connector 1: 2-pin LEMO, male
Connector 2: P-Tap, male

ARRI Run/Stop Cable for MDR.X Receiver (24")
Physical
Connector 1: 6-Pin Push-Pull
Connector 2: 3-Pin Fischer
Compatible Camera: ARRI ALEXA/AMIRA Camera
Length: 24" / 60 cm

RED Run/Stop Cable for MDR.X Receiver (16")
Physical
Connector 1: 6-Pin Push-Pull
Compatible Camera: RED Camera
Length: 16" / 40 cm

LANC Run/Stop Cable for MDR.X Receiver (16")
Physical
Connector 1: 6-Pin Push-Pull
Compatible Camera: LANC-Equipped Camera
Length: 16" / 40 cm

5-Pin to Micro-USB 2.0 Type-B Monitor Cable for SmallHD Overlays (16")
Connector 1: 5-Pin Circular Locking Connector
Connector 2: Micro-USB 2.0 Type-B
Length: 16" / 40 cm
Weight: 0.5 oz / 14.2 g

RT 5-Pin to USB Type-A Interface Cable for SmallHD 1300 & 1700 Series Monitors
Physical
Connector 1 : 5-Pin
Connector 2 : USB Type-A

RT SmallHD Monitor Interface Cable (24")
Transmitter / Controller
Connectors:
- Monitor End: 5-Pin (Straight)
- Teradek RT End: 5-Pin (Right-Angle)
Length: 24" / 0.6 m

RT Wired-Mode Controller Cable (6.6')
Cable Length: 6.6' (200 cm)

4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
Transmitter / Controller
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 7.8" / 20 cm
Connector: 4-Pin Straight Angle

4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
Transmitter / Controller
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 15.7" / 40 cm
Connector: 4-Pin Straight Angle

4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (24")
Transmitter / Controller
Compatibility: RT MOTR.X Brushless Lens Motor
Length: 23.6" / 60 cm
Connector: 4-Pin Straight Angle

White Disc for CTRL.1/CTRL.3 Controller
Transmitter / Controller
Compatibility: CTRL.1 and CTRL.3
Dimensions: 3.2 x 0.87 x 3.2" / 81 x 22 x 81 mm
Weight: 0.6 oz / 18 g
