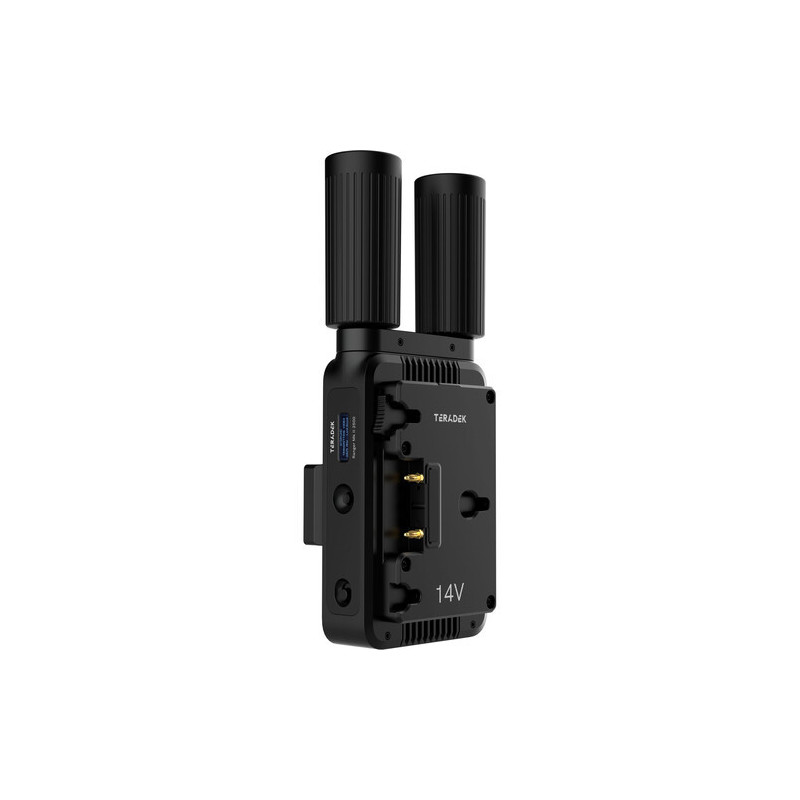

Teradek Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter (Gold Mount) - 10-2591-G

Transmit lossless HD video up to 2500' (762 m) with the Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter from Teradek.
Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support and transmit up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum.
The transmitter unit provides a powerful signal that can travel up to 2500' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes.
It can transmit visually lossless video to any Ranger series receiver with zero delay.
The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or the included Gold mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

° Premium Wireless Hardware
The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission.
This model boasts a maximum range of 2500', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

° Ranger Compatibility
Pair any combination of Ranger TX and RX together, regardless of model.
That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range.
Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

° Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience.
Ranger's patented zero-delay technology solves this problem.
With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.

° Configure Ranger from PC or Phone
Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
Bluetooth 5 LE connection support
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

° Wide Transmission Frequency Range
With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption.
But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
