Teradek 3G-SDI/HDMI Transmitter/Receiver Kit 1500' / 457.2 m (HDMI: 2-Channel, SDI: 2-Channel) - 10-2270 - no mount

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 LT 1500 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek.

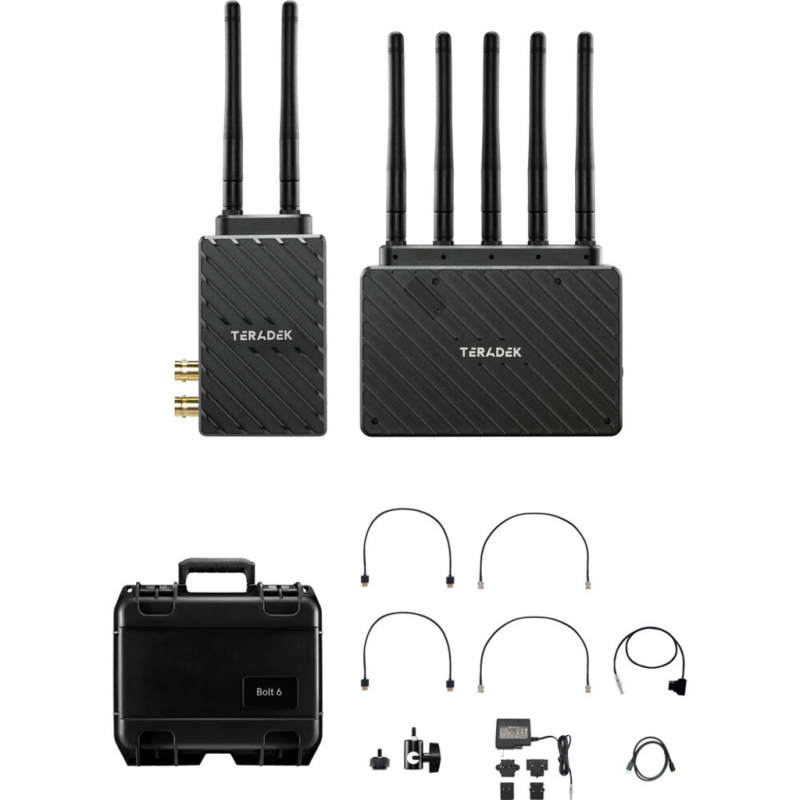

The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI.
Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video, input up to 1080p60 via SDI, SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Inputs / Outputs
Antenna I/O:
- Transmitter: 2 x RP-SMA Female
- Receiver: 5 x RP-SMA Female
Video I/O:
- Transmitter: 1 x HDMI 1.4b Input
- Transmitter: 1 x BNC (3G-SDI) Input
- Transmitter: 1 x BNC (3G-SDI) Loop Output
- Receiver: 1 x HDMI 1.4b Output
- Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio:
- HDMI: 2-Channel
- SDI: 2-Channel
Audio I/O: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x Micro-USB Input
Encryption: 256-Bit AES

Power
DC Input Power: 6 to 28 VDC
Power Consumption:
- Transmitter: 9 W
- Receiver: 11 W

Mounting: 1 x 1/4"-20 Female

Environmental
Environmental Protection: None
Operating Temperature: 32 to 72°F / 0 to 40°C

General
Material of Construction: Aluminum, Polycarbonate
Dimensions:
- Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
- Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight:
- Transmitter: 7.3 oz / 206 g
- Receiver: 10.3 oz / 292 gWireless
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth: 40 MHz
Frequency Range:
° Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
° DFS Frequencies:
US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes

Format Support
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC):
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes
