The Bolt 6 RX Monitor Module is a real-time wireless video receiver that supports 4K video with Teradek's patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This Receiver Monitor Module integrates directly with the SmallHD Smart 7 Monitor Series. Receive color-accurate, 4K HDR videos in under 0.001 milliseconds.


Zero Delay
6GHz Wireless Frequency Access
Bolt 4 Cross-Compatibility
Direct SmallHD Integration
Outputs: HDMI


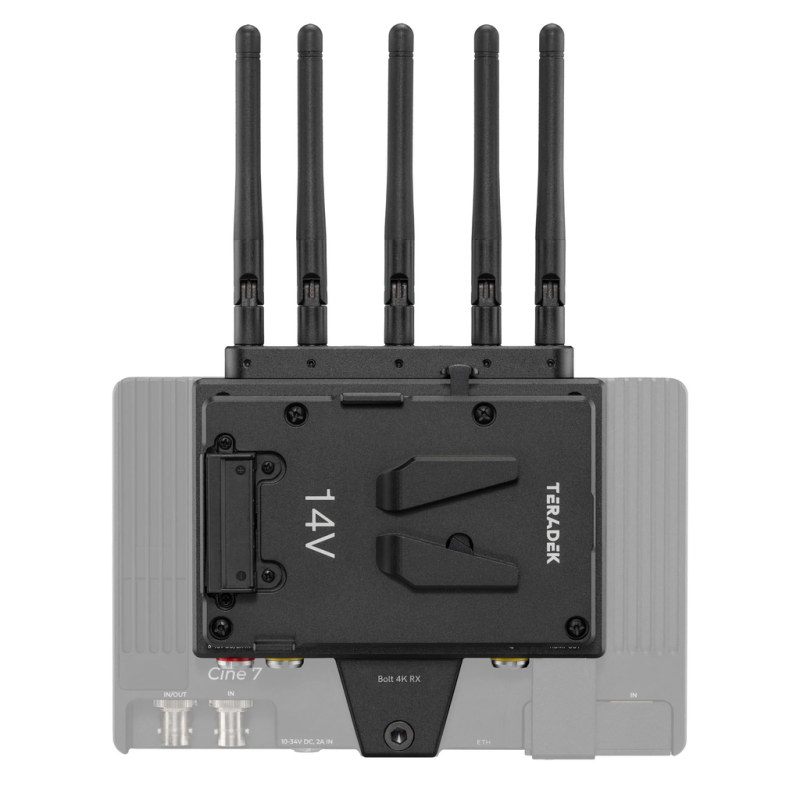

The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD's Cine 7, 702 Touch, and Indie 7 Smart Monitors. With direct integration, the Bolt 6 and Smart monitor are able to share power and video, allowing you to reduce the amount of cables on set.

Key features of the Bolt 6 RX Monitor Module include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, because it integrates directly into SmallHD Smart Monitors. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The Bolt 6 RX Monitor Module is cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 Receiver Monitor Module offers two line-of-sight options: 750 ft., and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

About 6GHz
Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you'll likely encounter frequent interference and even video dropouts. Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility). In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience. 6GHz frequency is now available in the US and Canada under UNII-5 government specifications. More countries will open the 6GHz frequency in 2023.

Video Outputs

1 x HDMI 1.4b Type-A receptacle

Sdi Ancillary Data Support

Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

<0.001sec

Supported Resolutions -
Supported Resolutions

4Kp23.98/24/25/29.97/30
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)

Video Processing -
Video Compression

Visually Lossless

Color Correction

None

Audio Processing -
Audio Compression

48kHz 24-bit PCM

Outputs -
Audio Output

Embedded HDMI Audio Output (2 Channel)

Physical -
Dimensions

122mm x 94mm x 27mm

Weight

292g (10.3oz)

Construction

Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

SmallHD 7" Monitor

Interfaces -
Configuration Interfaces

SmallHD Monitor UI

Mobile App

Bolt App

Usb Interface Functionality

SmallHD Monitor UI
2x 5pin Locking Connector CCU (Host)

Bluetooth

Via SmallHD Monitor

Network -
Antennas

5 External 2 dBi antennas (included)

Wireless

Non-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz

Rf Channel Selection

Auto, Manual

Encryption

AES-256, RSA-1024 key exchange

Rf Power

21 dbm EIRP

Range

Up to 1500 ft, line of sight

Unicast Multicast

Can connect one Transmitter to up to 6 Receivers

Noise Rejection

Can coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location

Interoperability

Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

Power -
Power Input

2-Pin Circular locking Connector 6-18 VDC

Battery

None, optional Sony/Canon dual battery plate

Nominal Power Consumption

6 Watts
