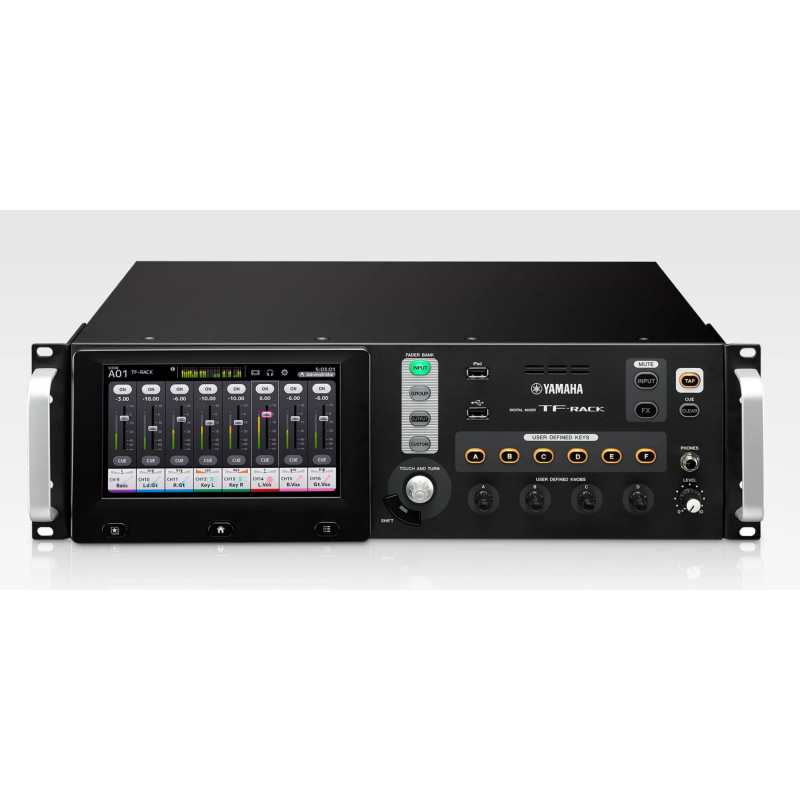

The Yamaha TF-Rack is a rack-mountable digital audio mixing console that features a touchscreen display, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF-Rack can also be used for live recording, offering 34x34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2x2 channel recording and playback using any USB storage device.

The TF-Rack console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as an analog RCA stereo line input, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF-Rack ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities.

Mixer
Input Channels: 40 (32 mono + 2 stereo + 2 return)
Aux Buses: 20 (8 mono + 6 stereo)
Stereo Buses: 1
Sub Buses: 1
Input Channel Functions: 8 DCA Groups
I/O
Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
Outputs: 16 (XLR)
Expansion Slots: 1
DSP
8 effects + 10 GEQ
USB
34 x 34 USB audio interface, 2-track recording via USB storage device
Sampling Frequency
48 kHz, internal
Signal Delay
Less than 2.6 ms, Input to Omni Out, Fs=48 kHz
Total Harmonic Distortion
Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 Ohms, Input to Omni Out, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz)
Frequency Response
+0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, Input to Omni Out
Dynamic Range
110 dB typ., DA converter, 108 dB typ., Input to Omni Out, input gain = min
Noise
Equivalent Input Noise: -128 dBu typ., input gain = max. (measured with an A-weight filter)
Residual Output Noise: -85 dBu, ST master off (measured with an A-weight filter)
Crosstalk
-100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent Input/Omni Out channels, input gain = min
Power Requirements
100 - 240 VAC 50/60 Hz
Power Consumption
85 W
Analog Inputs
Input Terminals: Input 1-16, ST In 1,2
Gain: -6 dB / +66 dB (Input 1-16)
Load Impedance: 7.5 kOhms (Input 1-16); 10 kOhms (ST In 1,2)
For Use with Nominal: 50 - 600-Ohm mics or 600-Ohm lines (Input 1-16); 600-Ohm lines (ST In 1,2)
Sensitivity: -82 dBu (61.6 µV), -10 dBu (245 mV) (Input 1-16); -30 dBV (31.6 µV) (ST In 1,2)
Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (Input 1-16); -10 dBV (316 mV) (ST In 1,2)
Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (Input 1-16); +10 dBV (3.16 V) (ST In 1,2)
Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (Input 1-16); RCA pin jack unbalanced (ST In 1,2)
Analog Outputs
Output Terminals: Omni Out 1-16, Phones
Source Impedance: 75 Ohms (Omni Out 1-16); 100 Ohms (Phones)
For Use with Nominal: 600-Ohm lines (Omni Out 1-16); 40 Ohms (Phones)
GAIN SW: +24 dBu position (default) (Omni Out 1-16)
Nominal Output Level: +4 dBu (1.23 V) (Omni Out 1-16); 3 mW (Phones)
Max. Output Level Before Clip: +24 dBu (12.3 V) (Omni Out 1-16); 75 mW (Phones)
Connector: XLR-3-32 type balanced (Omni Out 1-16); stereo phone jack (TRS) unbalanced (Phones)
Digital Input/Output
Terminals: USB (to Host), iPad
Format: USB
Data length 24-bit (USB to Host)
Audio: 34-ch input / 34-ch output, PCM (USB to Host); Playback: MP3 or WAV file data / Record: WAV file data (iPad)
Connector: USB (B-type) (USB to Host); USB (A-type) (iPad)
Control I/O
Terminals: Network, Foot SW
Format: IEEE802.3 (Network)
Level: 10Base-T/100Base-TX (Network)
Connector: RJ-45 (Network); TS Phone (Foot SW)
Dimensions
18.9 x 5.2 x 16.1" / 48.0 x 13.2 x 40.9 cm
Net Weight
20.3 lb / 9.2 kg
