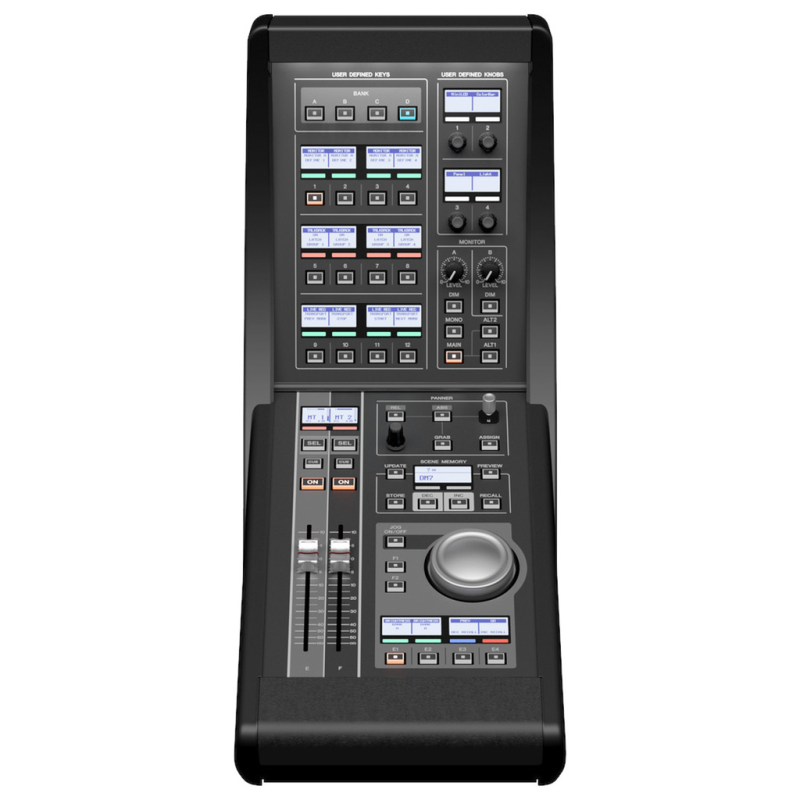

Yamaha CTL-DM7 DM7 Control Expansion, 3.94" touch-sensitive motorized fader × 2, Power Consumption 20W

The Yamaha CTL-DM7 is a flexible control expansion for the DM7 and DM7C professional digital consoles.
By adding this arm to your console, the user has an increased ability to perform key actions quickly.
The expanded user interface includes 4 additional banks of 12 user-defined knobs, bringing a total of 48 independent knobs.
The CTL-DM7 is also equipped with a programmable jog wheel, 2 assignable faders, and quick access to scene controls, as well as immersive and surround controls.
Broadcast and theater software packs are also included.

- Expanded User Interface for DM7 or DM7C professional digital consoles
- Ideal for live sound including broadcast and theater applications
- 4 additional banks of 12 UDK - total of 48 independent UDKs
- 4 additional UDK's at bottom
- 4 User Define Knobs
- Quick access to scene controls
- Immersive and Surround Controls
- Programable Jog Wheel
- 2 assignable faders (E/F)
- Flexible and dedicated Monitor Controls
- Includes Broadcast and Theater Packages

Fader: 3.94" touch-sensitive motorized fader × 2
Power Requirements:
- AC INPUT: 100-240 V, 50/60 Hz, AC power input: V-lock type
- EXT DC INPUT: DC 24 V±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector (4pin=DC 24 V, 1pin=GND, 2,3pin=N.C.)
Power Consumption: 20W
NC Value [Measured 30 cm horizontally away and vertically up from the unit (front pad).]: Fan Speed LOW: NC=20 | Fan Speed HIGH: NC=30
Operating Temperature Range: Min: 0°C, Max: 40°
Storage Temperature Range: Min: -20°C, Max: 60°C
Dimensions (WxHxD):
- DM7 CONTROL only: 7.52×12.72×22.12" (including link brackets and screws, and rubber feet)
- Linked with DM7: 38.3x12.75×22.2" (including side pads and rubber feet)
- Linked with DM7 COMPACT: 25.51×12.75×22.2" (including side pads and rubber feet)
Weight: 15.43 lbs / 7 kg
