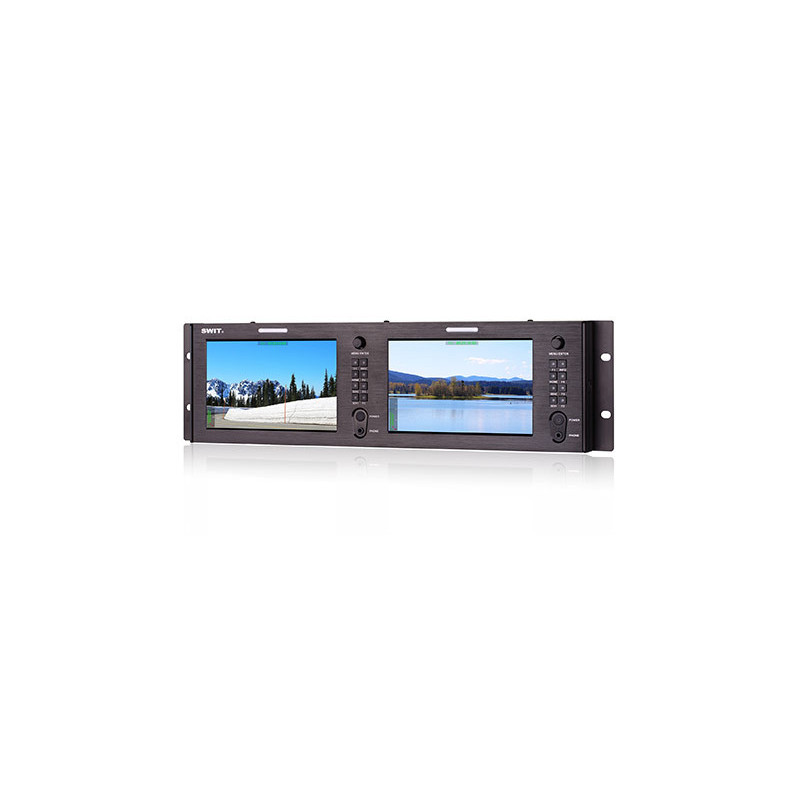

The M-1073H adopts dual 7-inch LCD panels with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°
M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
Each LCD of M-1073H supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output

Features:
==================
Dual 7" non-glaring LCD, 1920×1200
19-inch 3U rack mount, ±30° rotatable
2K/3G/HD/SD-SDI input & loop output
HDMI 2.0 (4K60p) input & loop output
16-ch embedded audio meters with alert
Select any 2 audio channels to output
9 steps quick zoom-in and mapping
Focus assist with precision adjustment
Build-in multi-camera logs to Rec.709
User 3DLUT cube file import by USB
On-screen TALLY display and GPI
Zebra stripes, False color, R/G/B/Mono
H/V delay, AFD, Timecode display
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
USB firmware upgrade
