Moniteur SmallHD Cine-7 Red RCP2 Camera control kit

Cine 7 RED RCP2 Kit (KOMODO, DSMC3 / RAPTOR ) FHD 7" 1800 cd/m², 10-Bit

7" 1920 x 1200 Touchscreen Display
RED RCP2 Camera Control Upgrade
Micro-USB to 5-Pin Adapter & Cable
Microfiber Cleaning Cloth
L-Series Battery Plate
1800 cd/m², 10-Bit IPS LCD Panel

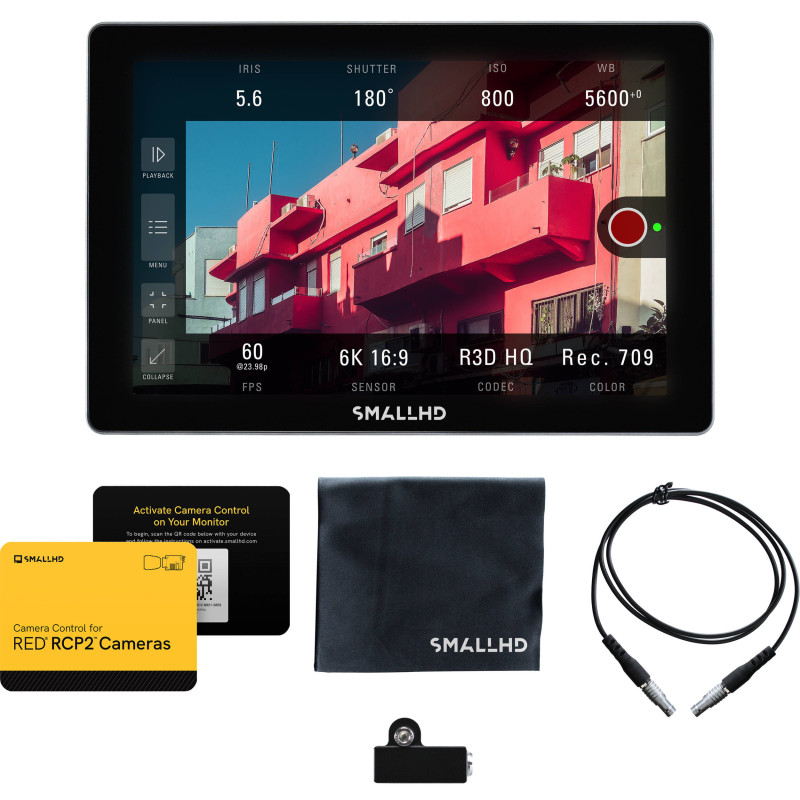

Use the lightweight Cine 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Cine 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.

The Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series)

Monitor your camera with the Cine 7 Touchscreen On-Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
Key Features
Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness
Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
Uses SmallHD PageOS 4 to organize and save customized function and settings pages
The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates
Four 1/4"-20 mounting points on top, left, right, and back
RED Control Features
Run/stop
Color controls
Exposure controls
Status
Color temperature
Video format
Playback
Shutter
Menu control
Software Features
Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Dual zebra: Customizable
Waveform: Luma and RGB, customizable with region of interest highlighting
Vectorscope: Yes
RGB parade: Customizable
Histogram: Luma and RGB
Image capture: With dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Audio meters: HDMI and SDI up to 8 channels



SmallHD Microfiber Cleaning Cloth

Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
UPC: 850246006126
SmallHD Micro-USB to 5-Pin LEMO Adapter

Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.

The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Compatibility
SmallHD monitors running OS3
Teradek RT CTRL.1 and CTRL.3 lens controllers

Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Screen Area 5.95 x 3.72" / 15.11 x 9.45 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Touchscreen Yes
Maximum Brightness 1800 cd/m2
Contrast Ratio 1000:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility None
Pixels Per Inch (ppi) 322 ppi
Color Gamut 100% DCI-P3
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type D Input
1 x HDMI Type D Output
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Input/Output
Embedded Audio HDMI: 8-Channel
SDI: 8-Channel
Audio 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x LEMO 2-Pin (34 VDC) Input
Other I/O 1 x USB 2.0 (Micro-USB)
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC
Wi-Fi None
Format Support
Video Format HDMI (8/10/12/16-Bit 4:4:4/4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i: 50
480i: 59.94
Video Signal Conversion SDI to HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 119.88/100/60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 240/239.76
HDMI to SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100
720p: 60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
Power
DC Input Power 6 to 16 VDC at 2.5 A
Battery Type 2 x L-Series
Mounting
Mounting 4 x 1/4"-20 Female
Environmental
Certifications CE, IC, RoHS, as per Manufacturer
Operating Temperature 30 to 100°F / -1 to 37°C
Storage Temperature 0 to 120°F / -17 to 48°C
General
Dimensions 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm
Weight 20 oz / 567 g
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 1.93 lb
Box Dimensions (LxWxH) 9.5 x 7 x 2"
SmallHD Microfiber Cleaning Cloth Specs
Packaging Info
Package Weight 0.025 lb
Box Dimensions (LxWxH) 4.1 x 4 x 0.2"
SmallHD Micro-USB to 5-Pin LEMO Adapter Specs
Connector 1 Micro-USB, Male
Connector 2 5-Pin LEMO, Female
Power 5 VDC
Mounting 1 x 1/4"-20 Thumbscrew
Packaging Info
Package Weight 0.07 lb
Box Dimensions (LxWxH) 6.95 x 3.85 x 0.85"
