Blackmagic PYXIS Monitor Kit , 5" HDR Touchscreen, 1500 cd/m² Brightness, 1920 x 1080 Native Resolution - CINEURSABB/AMKIT

Blackmagic PYXIS Monitor is a versatile 5" HDR touchscreen monitor with full camera control that can be mounted almost anywhere.

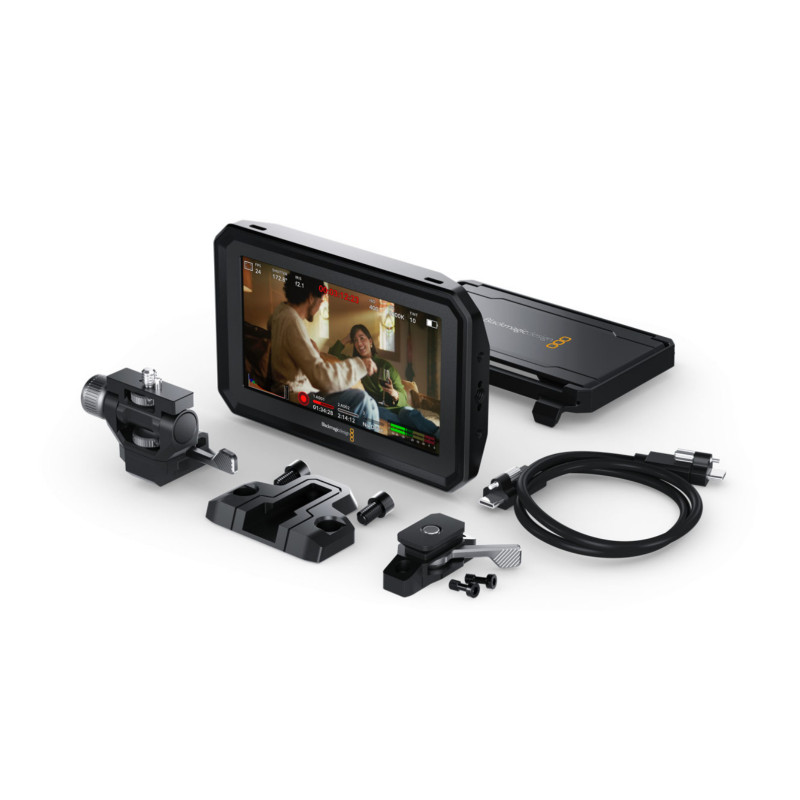

Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras.
The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera.
The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.

Compatible Cameras
- Blackmagic PYXIS 6K
- Blackmagic PYXIS 6K PL
- Blackmagic PYXIS 6K EF
- Blackmagic URSA Cine 12K LF
- Blackmagic URSA Cine 17K 65

Connections
___________________________
USB-C with Locking Connector

Features
___________________________
Display Size: 5"
Display Resolution: Full 1920 x 1080
Display Type: LCD capacitive touchscreen
Display Brightness: 1500 nits
Frame Rates: Up to 60fps
Tally: Rear facing LED tally light
Accelerometer: Automatically rotates image when monitor mounted upside down


Control
___________________________
On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function Button Presets:
- FPS: Preset Value
- Iris: Preset Value
- WB: Preset Value
- ISO: Preset Value
- Shutter: Preset Value
Function Button Toggle:
- Clean Feed
- Status Text
- Display LUT
- Frame Guides
- Focus Assist
- False Color
- Zebra
- Grid
- Safe Area Guide
- Off Speed Rec
- Focus Zoom
- Focus
- Record
- Auto White Balance
- Color Bars
- Playback
- False Color + Zebra
- OIS
- Stream
- Still

Mounting
___________________________
Mounting Points:
- 1x 1/4-20 bottom mounting point with ARRI locating pin pattern.
- 2x M4 bottom mounting points.
- 1x 1/4-20 side mounting point with ARRI locating pin pattern.
- 2x M4 side mounting points.

Operating Systems
___________________________
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later
Windows 10 and 11

Power Requirements
___________________________
Powered over USB-C

Environmental Specifications
___________________________
Operating Temperature: 0°to 40°C (32° to 104°F)
Storage Temperature: -20°to 60°C (-4° to 140°F)
Relative Humidity: 0% to 90% non-condensing
