Hollyland Pyro 5 Wireless Transceiving Monitor, 5.5" & 1500 nits, SDI & HDMI Ports


- More Than a Screen
- 5.5 Inches & 1500 nits
- 1TX and 4RX & 400m LOS Range
- Camera Control
- Proxy Recording
- Pyro Ecosystem
- Dual-Band & Low Latency
- SDI & HDMI Ports

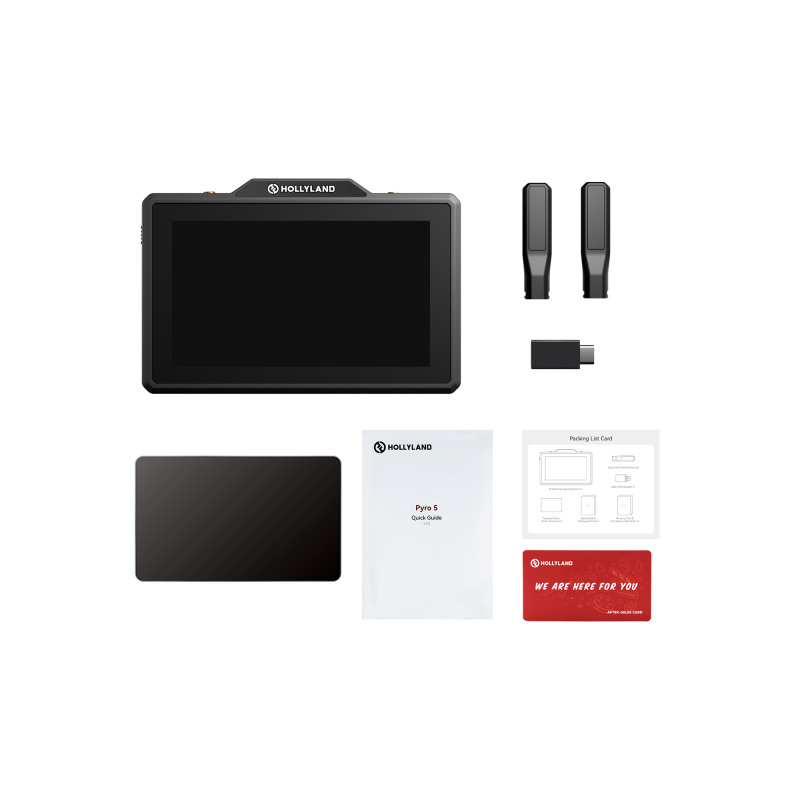

Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance.
With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool.
Proxy recording, real-time overlays, and RTMP live streaming make Pyro 5 more than just a monitor - it's your multi-tasking hub on set, built to simplify and speed up every step of production.

Shoot. Sync. Share
Pyro 5 is a 5.5" wireless monitor built for flexible on-set collaboration.
With advanced Wi-Fi Broadcast tech, one transmitter connect to up to four receivers for stable, real-time video transmission.

Just a Tap Away
Pyro 5's 5.5" touchscreen allows direct control of shutter, aperture, focus, white balance, trigger, and ISO-streamling on-set camera adjustments.

Multi-Cam Switching
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.

More Than a Monitor
Proxy files - with timecode and auto-folder sortin-can be recorded during live monitoring, perfectly synced with your camera for faster, more accurate editing.

Shoot Bright. See Brighter.
The 1500-nit screen stays bright and readable, even in the most challenging outdoor lighting.

Input Port
Transmitter Mode: HDMI 1.4b + 3G SDI

Output Port
Transmitter Mode: Loop-Out HDMI 1.4b
Receiver Mode: HDMI 1.4b

Audio-Video Parameters
Transmitter Mode: Color Depth Capability , Input Audio Format , Output Audio Format
Receiver Mode:
HDMI Input: YUV422/YUV444 8BIT , HDMI 1.4b 8-Channel

Video Processing Technology
Transmitter Mode: Video Bitrate , Video Encoding Format
Receiver Mode: Maximum 12 Mbps , H.264

General
Antenna: SMA Male
Power Input: DC Input (2.0mm core socket)
Headphone Jack: 3.5 mm
Upgrade Port: USB-C (USB 2.0 OTG) / SD Card Slot
Screen Size: 5.5" Touchscreen
Screen Resolution: 1920*1080 Pixels
Color Gamut: Rec.709
Aspect Ratio: 16:9
Screen Brightness: 1.500 nits
Contrast Ratio: 1000:1
Power Input Voltage: NPF: 6V - 16V , DC-in 10-18V DC
Power Consumptions: Transmitter <14W | Receiver Mode <16.5W
Transmit Power: Transmitter Mode <23dBm
Receiver Sensitivity: Receiver Mode: Unicast: -85dBm, Broadcast: -80dBm
Transmission Latency: 60ms (Tested in a laboratory environment with 1080P60 signal transmission)
Bandwidth: Unicast: 20 MHz , Broadcast: 40 MHz
Operating Temperature: -10°C - 45°C
Storage Temperature: -40°C- 60°C
Net Weight: 538 g (19oz)
Dimensions: 180x127x45.8 mm
