Description

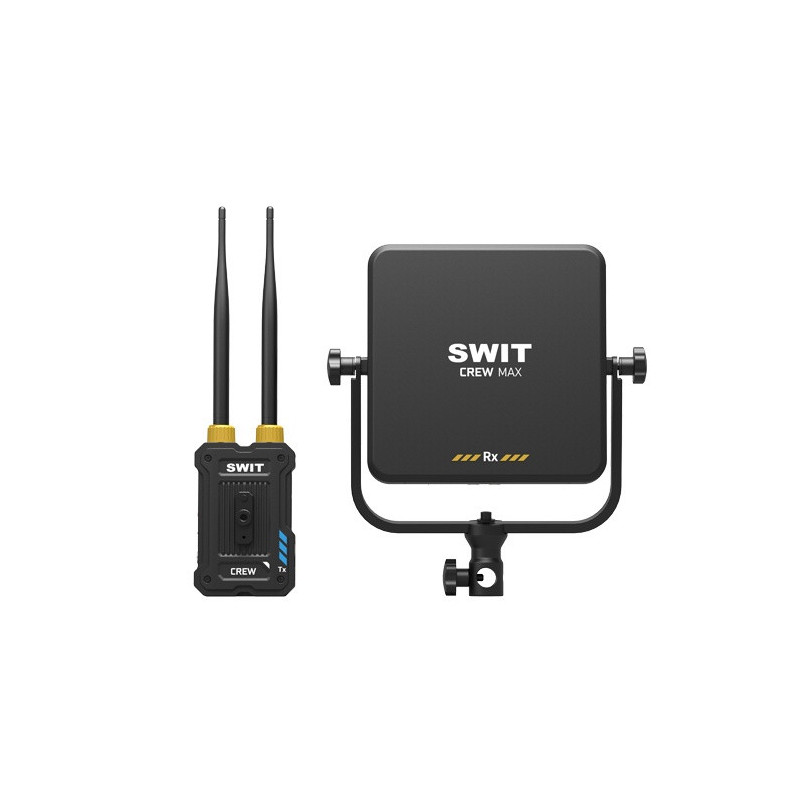

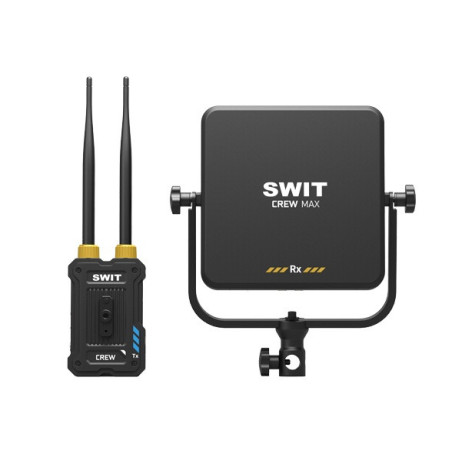

Swit CREW MAX | 3km/10000ft Pro Wireless Video Transmission, 3GSDI & HDMI® HD video transmission, KUWI 2.0 Pro wireless tech, NOT WIFI

- KUWI 2.0 Pro wireless tech, NOT WIFI
- Proprietary anti-interference RF
- 5.1-5.9GHz License-Free DFS Comply
- Auto scan and select optimal channel
- High gain panal antenna with Rx built-in
- 3km / 10000ft (Line-of-Sight) distance
- 3GSDI & HDMI® HD video transmission
- USB-C Video Capture out for PC/Mac
- H.265 up to 26.8Mbps visual lossless
- Consistent 32ms ultra low latenty
- Uncompromised 1T to 4R Multicast
- MetaData & TC trigger transmission
- High bright OLED display & configuration
- AES-256 dual encryption protection
- NP-F Plate Tx and V-mount Rx
- 2-pin LEMO / USB-C Power Supply


3km Long Range Wireless Video
The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities.
The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.

KUWI 2.0 Professional Chip, Stable As Always
The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.

Professional Video Production Applications
The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions.
CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.

Reliable 3km Long Distance, Stronger Wall-cross
CREW MAX provides with a particular panel receiver with high gain directional antenna inside, enabling transmission range of up to 3km (10,000 ft) in line of sight, for large-scale video productions.
Even in environments with heavy obstructions, CREW MAX can ensure stronger wall-cross performance.

32ms Consistent Low Latency
The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency.
The latency is consistent, never changed regardless of the environment interference.
In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.

Uncompromised 1T to 4R Multi-Cast
The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application.
All the CREW family Tx and Rx are fully cross-compatible for multicast.

Panel Rx: 3G-SDI, HDMI and UVC out
The Panel Receiver provides:
3G-SDI out×2, HDMI out×1 and USB-C Video Capture out×1
* Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.

USB-C Video Capture (For PC/Mac Livestreaming)
The CREW MAX wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.

Display and Configuration
Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight.
It displays essential transmission status information such as video format, frequency channel, signal strength, etc.
A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.

MetaData Transmit
CREW supports to wirelessly Transmit SDI embedded MetaData from cine cameras, for DIT livegrading, record and manage the camera information.

TimeCode Trigger Transmit
The CREW wireless system also supports the transmission of SDI embedded timecode and Start/Stop trigger from the camera.

Multiple Power Supply
The Tx can be powered up by NP-F battery, D-tap to 2-pin LEMO cable, and USB-C port,
The Panel Rx can be powered by a V-mount battery, D-tap to 2-pin LEMO cable, and USB-C port as well.

Technical Detail

Input / Output
Transmitter: SDI input×1, loop output ×1 | HDMI® input×1
Receiver: SDI output×2 | HDMI® output ×1 | USB-C Video capture output ×1

Video Formats
SDI / HDMI:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30
1080i60, 1080i59.94, 1080i50,
720p60, 720p59.94, 720p50
Compression: H.265 up to 26.8M bit-rate
Embedded Audio: 2-ch
Metadata: Yes
Timecode & Trigger: Yes

Wireless
Frequency: 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules: OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power: 23dbm
Distance: 1.2km / 4000ft (Line of sight)
Latency: 32ms
Multicast: 1 Tx up to 4 Rx
Encryption: AES-256

Power
Battery Plate: Tx & Rx: NP-F type
DC Input: Tx & Rx: 2-pin LEMO 7-17V
USB-C Input: Tx: 9V/2A, Rx: 5V/2A
Power Consumption: Tx: 16W, Rx: 6W

General
Environmental: -10°C to 40°C
Dimension: Tx: 130×80×36.7mm, Rx: 190×190×50mm
Weight: Net: Tx:333g, Rx: 1511g
