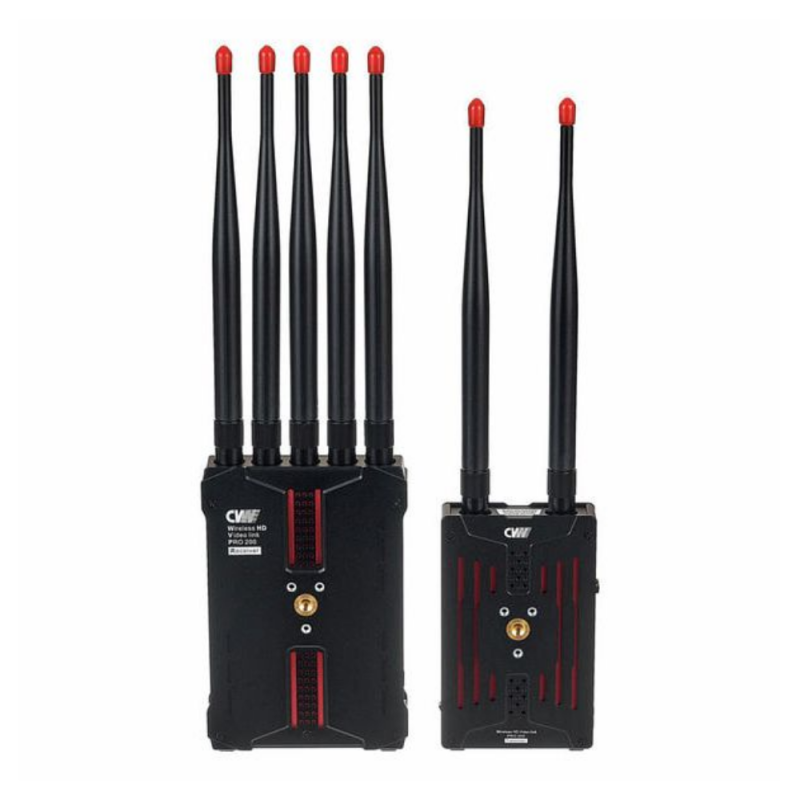

CVW Zero Delay Video Connection Set

For distances up to 200 m without DFS
Ultra-low latency, less than 1 ms
Distance up to 200 m (with line of sight)
Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720p (50/59.94/60 fps)
Uncompressed 4:2:2 10-bit
Audio formats: PCM, DTS-HD, Dolby True HD
Frequency range (EU): 5150 - 5250 MHz and 5725 - 5825 MHz
3G-SDI and HDMI Full HD
Bandwidth: 40 MHz
Without DFS (indoor application)
Frequency selection: Manual with buttons (monitor control) LED)
Mounting options: 1/4" internal thread (hot shoe adapter included)
Timecode transmission
Battery support: SONY F-type battery plate

Recommended compatible NP-F batteries: Baxxtar NP-F970 item no. 496754, Ansmann A-Son NP-F970 item no. 497644 (both not included, available separately)

Color: Black
Power Consumption: 8 W (TX), 7 W (RX)
Operating Temperature: 0° to 40°C
TX Dimensions (W x D x H): 74 x 35 x 120 mm
RX Dimensions (W x D x H): 95 x 35 x 146 mm
Hard Case Dimensions (W x D x H): 335 x 121 x 310 mm
TX Weight: 0.226 kg
RX Weight: 0.31 g
Total Weight: 3.2 g
