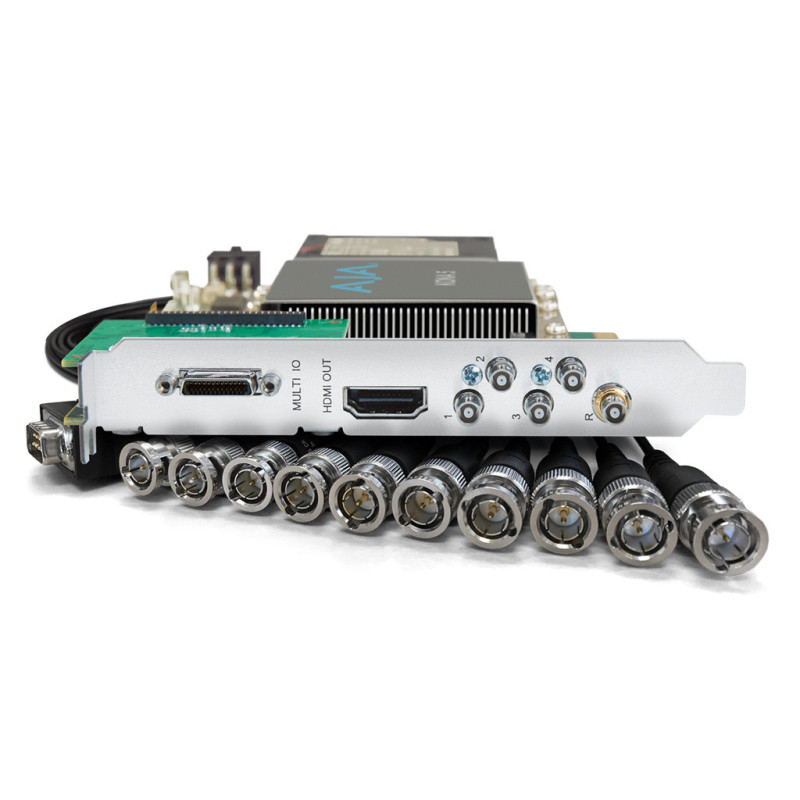

KONA^® 5
Ultimate Performance

Take command of the most challenging projects using the immense power of KONA 5, AJA's blazingly fast, 8-lane PCIe 3.0 I/O card, designed for today's most demanding video and audio workflows.

Whether you are working with HFR 8K/UltraHD2, 4K/UltraHD, 2K/HD, SD, Deep Color, and/or HDR, experience the quality and peace of mind that KONA 5 brings to your world. Supporting 4:2:2, 10-bit 4:2:2 and 4:4:4, 12-bit color spaces for pristine imagery, KONA 5 allows the flexibility to ingest and output with 12G-SDI and monitor with a full-size HDMI 2.0 port. The bidirectional 12G-SDI ports provide immense flexibility for capture and simultaneous pass through, and with the appropriate software, multi-channel capture and streaming, and backward compatible with 6G/3G/HD-SDI.

KONA 5 works with AJA's Control Room and Control Panel software, with powerful drivers and application plug-ins that provide support for leading content creation applications, such as Adobe® Premiere® Pro, Apple® Final Cut Pro, Avid Media Composer®, FilmLight, OBS Studio, vMix and much more. KONA 5 is also compatible with AJA's multi-platform and widely-adopted SDK for Developers.

For HDR* workflows, KONA 5 supports HDR10+, HLG, PQ, and Dolby Vision for rich color delivery over SDI and/or HDMI. KONA 5 has the power for the work you do today and into the future.

*Application dependent

Features
8K/UltraHD2/4K/UltraHD/2K/HD/SD up to 50/60p
4x bidirectional 12G-SDI connections with 16-channel embedded audio
HDMI 2.0 output, 4K/UltraHD HFR, plus 8K to 4K downsampling
RGB 4:4:4 12-bit (4K/UltraHD) workflows supported
YCbCr 4:2:2 10-bit and HFR workflows supported
Up to 12-bit LUT support (.cube)
8K support for Apple Final Cut Pro, Adobe Premiere Pro and Avid Media Composer and much more
Multi-Channel support with OBS Studio, vMix and Telestream Wirecast
8K or multi-channel 4K support for OEM applications with AJA SDK
Dynamic FPGA Firmware Reconfiguration for quick mode changes
4K Closed Caption Support
VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
HDR Metadata Capture and Auto Playback Detection
Includes support for the latest Apple silicon
Reference Input on card (Analog black burst or Tri-level)
Included breakout cable for LTC, RS-422, 8-ch AES/EBU
Three year warranty

Professional Connectivity: 12G-SDI and HDMI 2.0
KONA 5 boasts 4x bi-directional 12G-SDI spigots with a Reference Input and 4K/UltraHD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable, or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single 3G-SDI cable, or dual link 1.5G-SDI, while allowing capture and monitoring via SDI to take place simultaneously.

A full-sized HDMI 2.0 connection offers monitoring and output, with HDR , Deep Color and HFR support. Across the board, KONA 5 is the professionals choice for post, broadcast, graphics, virtual sets, pre-viz, live compositing and more.

Extended Connectivity
KONA 5 ships with an included breakout cable that offers extensive connectivity for AES, RS-422 control support and Reference:

• 8-Channels of AES/EBU (BNC) In
• 8-Channels of AES/EBU (BNC) Out
• RS-422 9-pin connector for control
• LTC In and Out

HDR
HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.

KONA 5 delivers robust HDR compatibility to HDMI displays with support for HLG and HDR 10 with HDR Infoframe metadata, in accordance with HDMI2.0a/CTA-861.3 and HD.

Workflow
KONA 5 offers powerful next-generation performance for a range of workflows. Extensive and flexible connectivity will put KONA 5 at the center of your multi-format projects.

Sync Up
KONA 5 can be locked to an external reference for integration into larger productions, or feed LTC in and out to ensure footage captured with KONA 5 has the proper timecode.

Machine Control
A 9-pin RS-422 port on the included breakout cable allows control of a range of external devices for frame accurate captures and layoffs.

Hardware Keying
The built-in hardware downstream keyer allows graphics and images to be easily overlaid on the input video in realtime.

Legendary Support
AJA Technical Support is recognized as one of the best in the industry and is provided at no additional charge. Our support team will work with you to solve any issues you might encounter and get you working as quickly as possible.

Integration
KONA 5 supports macOS, Windows and Linux, providing incredible 4K and multi-channel power for a wide range of creative applications.

Software Compatibility of the KONA Family »

Tech Specs

Video Formats	(4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (HD) 1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1080i 50, 59.94, 60 (HD) 720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.
Video Inputs Digital	12G-SDI*, SMPTE-2082, 12-bit**, 10-bit and 8-bit 6G-SDI*, SMPTE-2081, 10-bit and 8-bit 3G-SDI, SMPTE-259/292/296/424/425, 12-bit*, 10-bit and 8-bit 4K/UltraHD 4:4:4 (4x BNC) 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit**, 10-bit and 8-bit 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit *SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous. For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured inputs support UltraHD / 4K only. **Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Video Outputs Digital	12G-SDI*, SMPTE-2082, 12-bit**, 10-bit and 8-bit 6G-SDI*, SMPTE-2081, 10-bit and 8-bit 3G-SDI, SMPTE-259/292/296/424, 12-bit*, 10-bit and 8-bit 4K/UltraHD 4:4:4 (4x BNC) 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit**, 10-bit and 8-bit 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit HDMI v2.0 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component 4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3 HLG Support - compatible with HDMI 2.0b/CTA-861-G*** *SDI connections are bidirectional. For 2K/HD, capture and monitoring can be simultaneous. For 4K/UltraHD with 12G-SDI, capture and monitoring can also be simultaneous. For 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output. Additionally, 12G-SDI, 6G-SDI configured outputs support UltraHD / 4K only. **Bit depth support is application dependent. Check with your software manufacturer for compatibility. ***HLG support is application dependent. Check with your software manufacturer for compatibility.
Audio Inputs Digital	16-Channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous 8-Channel, 24 and 16-bit HDMI embedded audio, 48 kHz sample rate, synchronous 8-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)
Audio Outputs Digital	16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous\ 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous 8-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)
Downstream Keyer	Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte
Reference	Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket) Reference input is terminated into 75 ohms when Genlock is set to Ref In
Timecode	LTC timecode input and output (via 2x BNC on breakout cable) LTC timecode input (via 2-pin header on PCIe card) LTC timecode input (via HD-BNC at PCIe bracket)
Electrical Interface	8-lane PCIe 3.0
Machine Control	RS-422, Sony 9-pin protocol (via breakout cable) 9-pin D-connector pinout is as follows: 1 GND 2 RX- 3 TX+ 4 GND 5 No Connection 6 GND 7 RX+ 8 TX- 9 GND Shell GND
Noise	<50dBA (A-weighted at 1m in free air)
Size (w x d x h)	0.75" x 6.9" x 5.0" (19.05 x 175.26 x 127.00 mm)
Weight	PCIe Card: 0.6 lbs (0.3 kg) Cables (all combined): 1.3 lbs (0.6 kg)
Power	28W typical, 35W maximum
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
