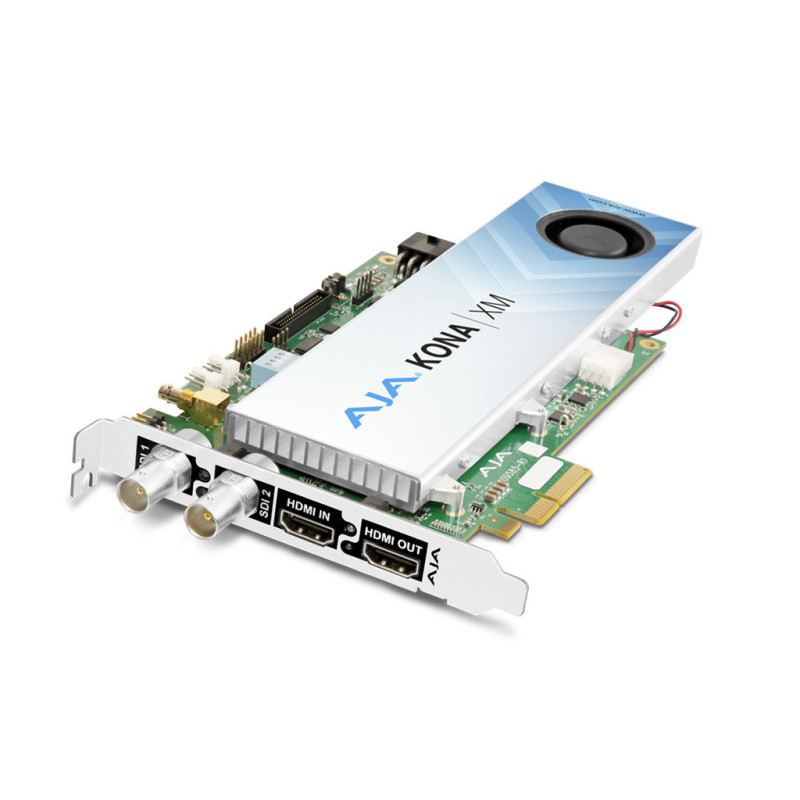

KONA XM
For medical: 12G-SDI and HDMI 2.0 Ultra Low Latency PCIe card, no Fan, Passive Cooling

KONA XM represents a new generation of I/O technology from AJA that allows medical OEM developers to leverage streaming DMA (Direct Memory Access) to ensure ultra-low latency for the most mission-critical video applications, including surgical and medical video hardware devices. KONA XM is designed and certified to be the heart of the next generation medical video technology solutions.

4K/UltraHD/2K/HD/SD capture and playback, up to 60p
Ultra-Low Latency: As low as sub-frame delay on processed video output
2x uni-directional 12G-SDI connections with 16-channel embedded audio
HDMI 2.0 input and output, with VESA support
RGB 4:4:4 12-bit workflows supported
YCbCr 4:2:2 10-bit workflows supported
Windows and Linux support for OEM applications via the AJA SDK
In Firmware Microcontroller
Supports graphics up to 4K/UltraHD with alpha channel
VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
HLG and HDR10 HDR support, via HDMI
Audio accessed through the AJA SDK
Available in active and passive cooling options
Three year warranty
