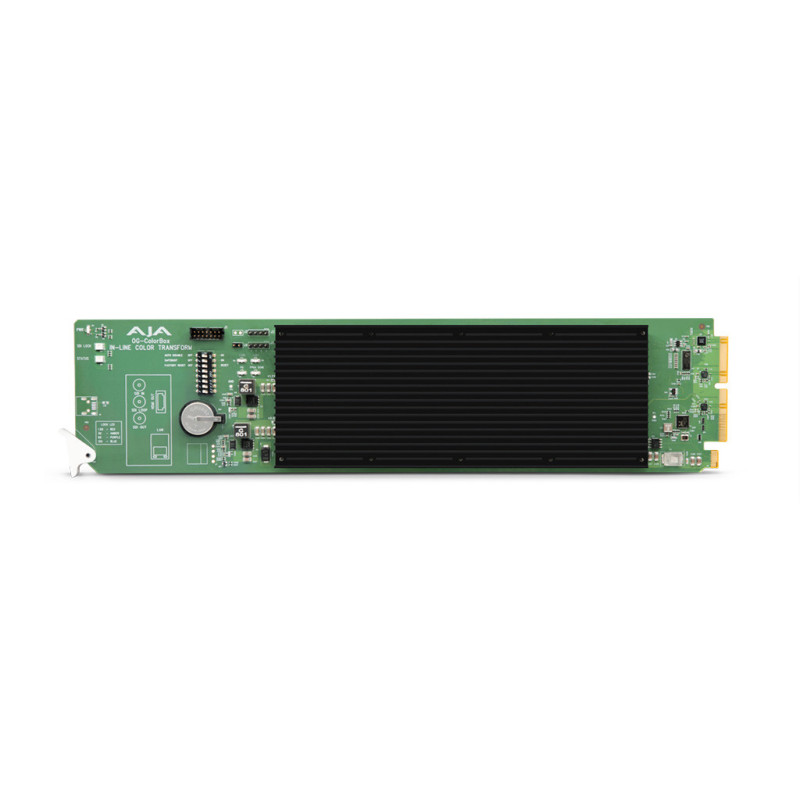

AJA OG-ColorBox
openGear In-line HDR/SDR Algorithmic and LUT Color Transforms

OG-ColorBox from AJA is a high performance color management openGear card specifically designed to meet the color conversion and color correction needs of broadcast,
live events, and on-set applications. Supporting HDR, SDR, and Wide Color Gamut (WCG) signals, it utilizes 12G-SDI for single wire 4K/UltraHD up to 4:2:2 10-bit 60p
or 4:4:4 12-bit 30p, with a unique color processing pipeline, and down-conversion. The OG-ColorBox's ultra-low latency, less than ½ of a video line, makes it ideal for
color managed workflows for live productions.

Features
openGear compatible card
12-bit 4:4:4 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 30p
10-bit 4:2:2 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 60p
12-bit 4:4:4 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 30p
10-bit 4:2:2 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 60p
Ultra-low latency, less than ½ a video line
Extensive AJA Color Pipeline built around the 33pt. 3D LUT processor with tetrahedral interpolation
7x nodes plus Overlay
1x 3D LUT processor, user configurable as 3D LUT or Dynamic
4x 1D LUT processors, user configurable as 1D LUT, Dynamic, or Color Corrector
2x 3x3 Matrix processors, user configurable as 3x3 Matrix, Dynamic, or ProcAmp
Supports industry standard file types, no conversion to proprietary format required
Configurable Color Space, Range, and Transfer Characteristic
Full frame LUT processing
Six Color Processing Pipelines
AJA Color
Colorfront (Licensable option)
ORION-CONVERT (Licensable option)
BBC HLG LUT (Licensable option)
NBCU LUTs
ACES
Down-convert 4K to 2K or UltraHD to HD via SDI and/or HDMI outputs
4K/2K Crop for HDMI output
Video Preview in web user interface for confidence monitoring
Built-in Frame Store
Up to 4K/UltraHD frame capture and recall
Capture pre or post processed images
Test Pattern up to 4K/UltraHD, 14 test patterns built-in
Overlay information on output
User Text
User Overlay
Input and Output signal information
Pipeline Configuration
Overlay can be captured with image for future reference
Onboard library for file management
16x 1D LUTs
16x 3D LUTs
16x 3x3 Matrices
16x Images
16x Overlays
16x AMFs
Preset Management, 10 per Pipeline plus Startup Preset
HDR signaling metadata management
ANC metadata pass-through
Embedded audio pass-through, SDI 16-ch, and HDMI 8-ch
Support for ARRI Alexa 35's Wireless Video Optimized LogC4 (WVO)
Extensive API for third party control integrations
Embedded web server for remote control
IP configuration and monitoring through Ross DashBoard software
Power: 19 watts
Hot-swappable
Rear I/O card included
Two slots required for each card
Compatible with OG-X-FR and OG-3-FR openGear frames
Redundant power supply option available on openGear frames
Five year warranty
