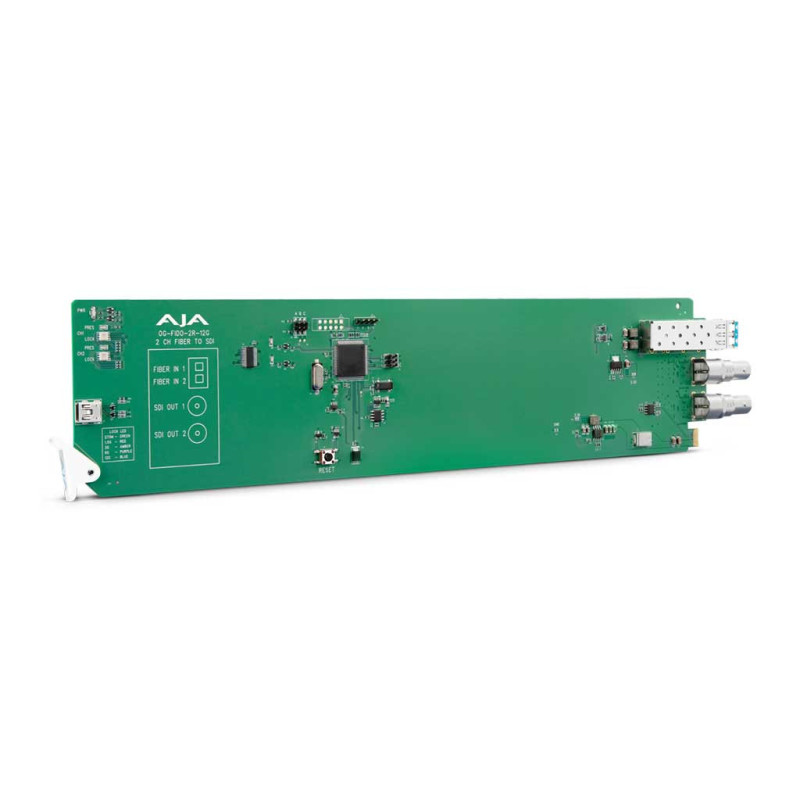

OG-FiDO-2R-12G

The OG-FiDO-2R-12G is a state of the art, openGear compatible, 2-channel Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two fiber inputs are completely independent allowing different 12G-SDI rates to be carried on each channel.
AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames including AJA's OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.

Features

• Video Formats: 270 Mbps - 12 Gbps, format agnostic
• Inputs: 2x Independent Single-Mode LC Fiber Connectors
• Outputs: 2x Independent 12G-SDI, BNC connectors
• Support for HDR - High Dynamic Range video
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• Nominal Wavelength; Rx :1260-1620 nm
• Hot-swappable
• Remote Ethernet Monitor through Ross DashBoard software
• Appropriate Fiber SFP included
• Rear I/O card included
• Two slots required for each card
• Power: 3 watts Max
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Five year warranty
