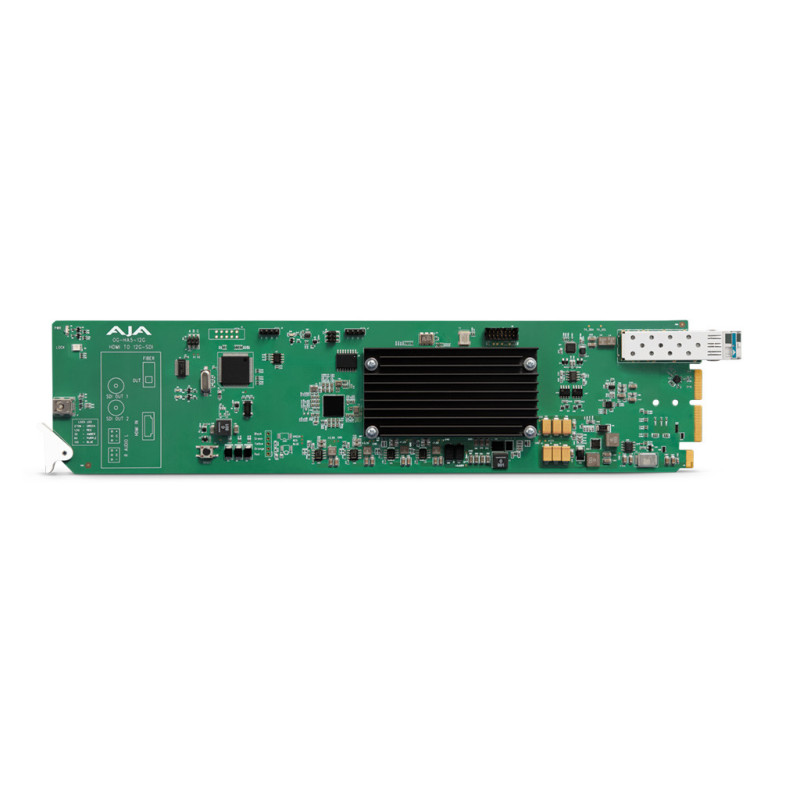

OG-HA5-12G-T
openGear HDMI 2.0 to 12G-SDI Conversion

AJA's OG-HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. OG-HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source.

OG-HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

OG-HA5-12G-T and OG-HA5-12G-T-ST Fiber SFP equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link, respectively. These models ship with SFPs installed and include all functionality of the OG-HA5-12G, with the added benefit of extending audio and video signals further.

Convert HDMI 2.0 to 4K 60p to 12G-SDI with a second mirrored output
Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
OG-HA5-12G-T ships with FiberLC-1T-12G SFP installed
Support for up to 60p input at 4:4:4/4:2:2/4:2:0
Supports 12-bit workflows
EDID LFR & HFR Emulation up to UltraHD 60p
Two Sample Interleave (2SI) 4K/UltraHD source mapping
Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
Embedded audio can be selected from the HDMI or Analog audio inputs
Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
Monitor and control via Ross DashBoard software
Five year warranty
