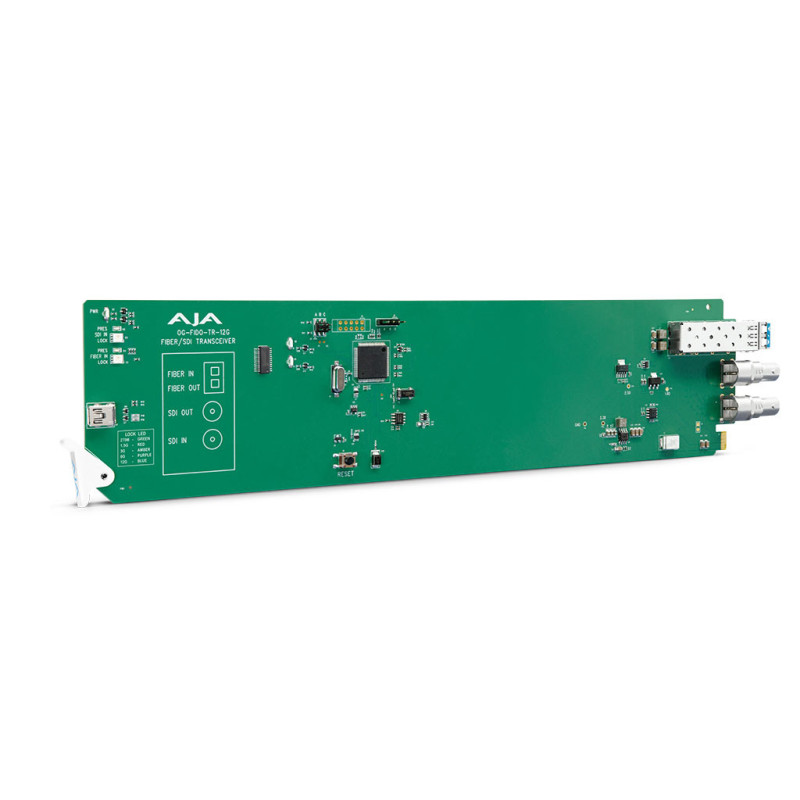

1-Channel 12G-SDI/LC Single Mode LC Fiber Transceiver, DashBoard Support
Features
Video Formats: 270 Mbps - 12 Gbps, format agnostic
Inputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
Outputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
Monitor via openGear DashBoard
Support for HDR - High Dynamic Range video
Input Present and Input SMPTE Lock LEDs
Automatic detection and reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
Nominal Wavelength; Tx: 1310 nm (typ), Rx :1260-1620 nm
Power: 3 watts Max
Hot-swappable
Remote Ethernet Monitor through Ross DashBoard software
Appropriate Fiber SFP included
Rear I/O card included
Two slots required for each card
Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
Five year warranty
