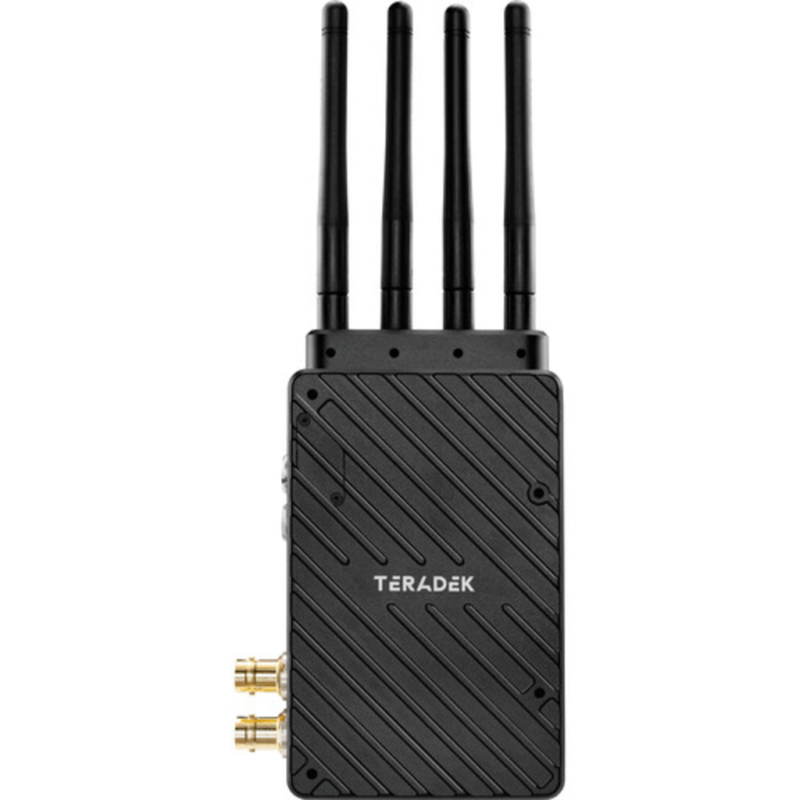

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter - 10-2301

Transmit lossless HD video up to 750' with the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter from Teradek.
With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available.
It also features 50% quieter operation with its redesigned cooling system.
The transmitter unit provides a powerful signal that can travel up to 750' line of sight.
It features a bright OLED display, a 12G-SDI loop output, and supports camera control with optional firmware via its 5-pin USB output.

The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors.
Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum.
The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
- Smaller, lighter, and 50% quieter than previous models
- Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
- Input via 12G-SDI and HDMI and transmit up to DCI 4K60 video, output via 12G-SDI
- SDI Eye Pattern Tool to check SDI cable integrity
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Improved "long range" mode
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Inputs / Outputs
Antenna I/O: 4x RP-SMA Female
Video I/O:
- 1x HDMI 2.0 Input
- 1x BNC (12G-SDI) Input
- 1x BNC (12G-SDI) Loop Output
Embedded Audio: HDMI: 2-Channel | SDI
Audio I/O: No
Power I/O: 1x LEMO 2-Pin (28 VDC) Input
Other I/O:
- 1x USB-C Input
- 1x LEMO 5-Pin 2.0 Output
Encryption: 256-Bit AES

Wireless
Wireless Range: 750' / 228.6 m (Line-of-Sight)
Channel Bandwidth : 40 MHz, 20 MHz
Frequency Range:
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz | US: 5.19 to 5.23 GHz | US: 5.75 to 5.79 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: No
Bluetooth: Yes
Cellular Support: No

Format Support
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes

Power
DC Input Power: 6 to 28 VDC
Power Consumption: 20 W

Mounting
Mounting: 1x 1/4"-20 Female

Environmental
Environmental Protection: No
Operating Temperature: 32 to 72°F / 0 to 40°C

General
Material of Construction: Aluminum, Polycarbonate
Dimensions: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
Weight: 12.1 oz / 344 g
