Sony Monitor 24" Diagonal Screen Size, 1920 x 1200 Native Resolution, Supports 1080/60p Video Signals, 2x 3G/HD/SD-SDI Inputs

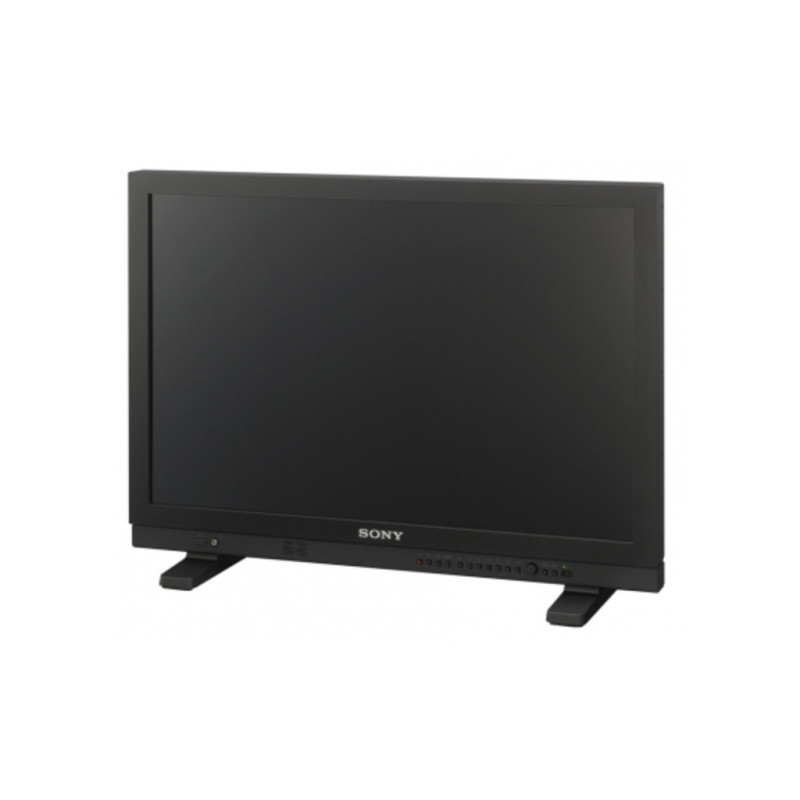

The Sony LMD-A240 24" LCD Production Monitor is a portable, 1920 x 1200 resolution monitor for on set, studio, and broadcast use. The monitor features an IPS LCD display with wide 178° horizontal and vertical viewing angles and provides 3G/HD/SD-SDI, HDMI, and composite inputs, which support NTSC/PAL, 720p, 1080i, and 1080p input signals with frames rates from 24p to 60p.
The monitor introduces several new features and upgrades from previous LMD series monitors, including a new low latency automatic I/P conversion, new video processing engine for improved image accuracy, on screen tally, and yoke mounting screw holes. The monitor also provides a wide range of professional monitoring features, such as built-in waveform and vectorscope, focus assist with adjustable colored peaking, time code display, and a Slog2 to Rec 709 LUT.

A built-in audio decoder lets you display up to 16 channels of embedded SDI audio. Audio can be monitored using the 3.5mm headphone jack on the front panel, or with the 1W built-in speaker. Two Ethernet ports provide connectivity for serial and parallel remotes, letting you control and load monitor settings via your network, as well as upgrade the monitor's software. For use in the field, there is a 12V DC power input on 4-pin XLR.

The monitor is compatible with standard VESA 100 x 100mm mounting hardware. Optional rack mount brackets are also available. Monitor feet are included.

° IPS LCD panel with 178°/178° viewing angles
° 1920 x 1200 native resolution
° Multi format input signal support, NTSC/PAL, 1080i, and 1080p
° Frame rates from 24p to 60p
° Dual 3G/HD/SD-SDI inputs with active loop through
° HDMI input
° Composite input with loop-out
° Slog2 to 709 LUT
° Multiple color gamut display (SMPTE C, EBU, ITU-R BT.709 and Native)
° Internal waveform monitor with zoom and line select features
° Internal vectorscope with zoom
° Focus assist with adjustable colored peaking
° EIA/CEA 608 and 708 digital closed caption decoder
° Time code display
° Seven assignable function buttons
° Ethernet and parallel remote control
° Embedded audio decoding and display
° 16-channel audio monitor for SDI input
° 3.5mm stereo mini jack audio input
° Front panel 3.5mm headphone jack
° Lighted control panel
° 12 VDC power input
° Double coated paint finish
° Optional rack mount brackets

Picture Performance
-----------------------------------------
Panel : a-Si TFT Active Matrix LCD
Picture Size (Diagonal) : 24 inches
Effective Picture Size (H x V) : 518.4 x 324.0 mm
Resolution (H x V) : 1920 x 1200 pixels (WUXGA)
Aspect : 16:10
Colors : Approx.16.7 million colors
Normal Scan : 0% scan
Over Scan : 5% over scan

Input
-----------------------------------------
Composite Input : BNC (x1), 1 Vp-p ±3dB, sync negative
SDI Input : BNC (x2)
HDMI Input : HDMI (x1) (HDCP correspondence)
Audio Input : Stereo mini jack (x1), -5 dBu 47 kO or higher
Parallel Remote : RJ-45 Modular connector 8-pin (x1) (Pin-assignable)
Serial Remote (LAN) : RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input : XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 O or less)

Output
-----------------------------------------
Composite Output : BNC (x1), Loop-through, with 75 ohm automatic terminal function
SDI Output : BNC (x2), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 ohm unbalanced
Audio Monitor Output : Stereo mini jack (x1)
Speaker (Built-in) Output : 1.0 W (Monaural)
Headphone Output : Stereo mini jack (x1)

General
-----------------------------------------
Power Requirements : 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz
DC : 12 V to 17 V, 3.6 A to 2.6 A
Power Consumption : Approx. 51 W (max.) - 45 W average
Operating Temperature : 0°C to 35°C (Recommended: 20°C to 30°C)
Operating Humidity : 30% to 85% (no condensation)
Storage/Transport Temperature : -20°C to +60°C
Dimensions (W x H x D) : 566.6 x 397.8 x 64.4 mm (without monitor feet) - 566.6 x 420.3 x 165.0 mm (with monitor feet)
Mass : Approx. 7.6 kg (with monitor feet)
