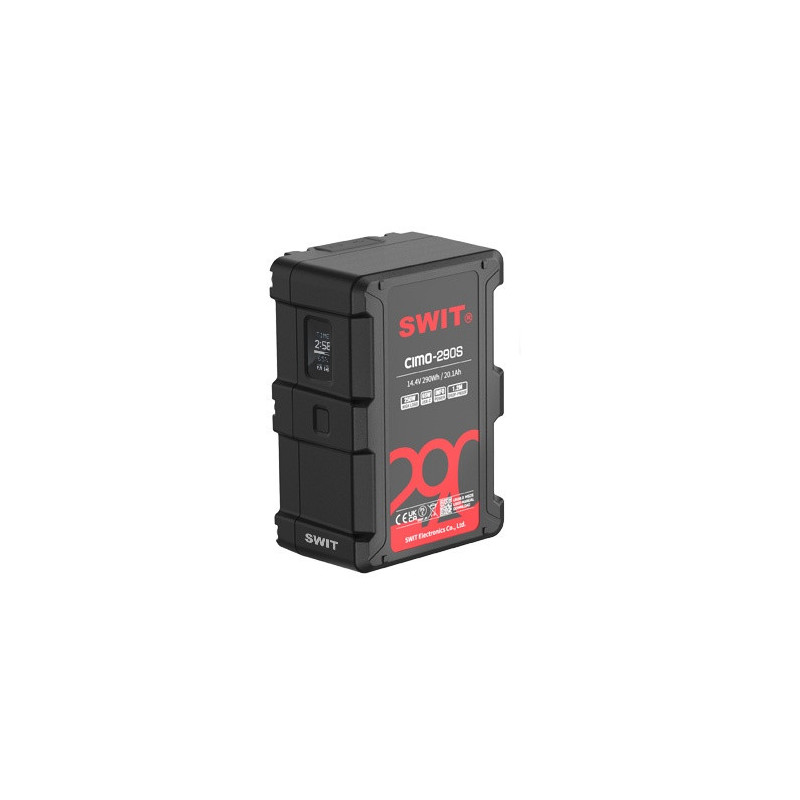

Swit 290Wh USB-C OLED info Cine V-mount Battery

- Cine style V-mount battery
- 290Wh/20.1Ah large capacity
- 250W/20A constant high load, 335W peak
- 2×D-tap output & charging input
- 1x USB-A 5V/9V 2A 18W output
- 1x USB-C 65W output & 60W input
- OLED remaining run time display
- Rear LED torch for dark environment
- Strong housing 1.2m drop-off proof
- BMS multiple circuit protections

CINE V-Mount Battery
The CIMO series cine class V-mount batteries featured high power load, 2× D-tap, 65W USB-C, OLED power info display, battery life inspection and 1.2m drop-off proof for professional cinematographers.

14.4V, 290Wh Capacity
CIMO-290S consists of 24pcs ternary lithium cells, 14.4V nominal voltage, 290Wh, 20.1Ah large capacity.
The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.

250W Constant High Load, 335W Peak
CIMO-290S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 335W), to drive high power Cine cameras and on-camera devices together.
The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

100W 6A Fast Charging
CIMO-290S supports 100W/6A fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells.
The 290Wh battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

OLED Power Info / Health Level Display
CIMO-290S battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, and long press the power check button to display battery cycle times, health level for battery management.

USB-C 65W Output
The USB-C port of CIMO-290S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 universally compatible protocols.

USB-C 60W Charging Input
The battery can also be charged by USB-C charger of PD2.0/3.0 =60W power, fully charged within 6.6 hours.
* Please note that<60W low power USB-C chargers are unable to charge this battery.

LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find V-mount plate in dark production environment.
Double press the Power Check button again to switch the light off, and it will be automatically switched off after 60 seconds.

1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed and can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.

Battery plate: V-Mount
Nominal voltage: 14.4V
Capacity: 290Wh, 20.1Ah
Power Load: 250W, 20A constant; 335W peak
Power IN&OUT:
Electrodes: 250W 20A out, 16.8V 8A(Max) in
-
D-tap×2: (Plug 1×D-tap) 250W 20A out
(Plug 2×D-tap) 250W 20A out in total
Charging through D-tap: 16.8V 8A(Max) in
-
USB-A: 5V/9V(Max) 2A out, 18W
-
USB-C out: 65W, 5V/9V/12V/15V/20V(Max)=3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
USB-C charging in:
USB-C to C Charger Request - PD2.0/3.0, Power =60W
USB-A to C Charger Request - 5V only
Dimension: 144×100×67mm
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C
Net weight: Net 1.509kg; With package 1.568kg
