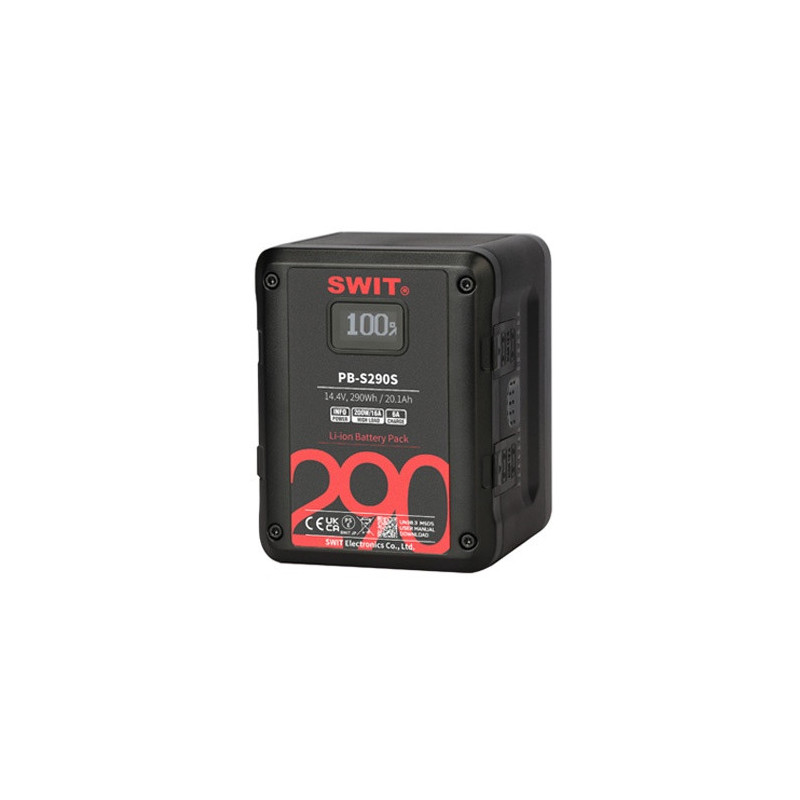

Swit 290Wh Multi-sockets Digital Battery Pack

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

290Wh / 20.1Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 290Wh / 20.1Ah high capacity.
Can run approx 10 hours for normal ENG cameras and approx 3.5 hours for ARRI ALEXA.

High Load for Cine Cameras
At least 200W / 16A load
PB-S290S provides at least 200W/16A high load even at 1% power, to drive high power Cine cameras and on-camera devices together.
The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

4× D-tap, 1× USB
PB-S290S provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

100W 6A Fast Charging
Using SWIT 6A fast charger
PB-S290S supports 6A fast charging by SWIT PC-P461S or S-3812S fast charger, to save more than 50% charging time.
The 290Wh PB-S290S battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

Model: PB-S290S
Battery plate: V-mount
Nominal voltage: 14.4V
Capacity: 290Wh, 20.1Ah
Max output
In total: 200W
Electrodes: 200W,16A
USB:10W, 5V/2A
D-tap: 120W / 10A
Dimension: 121×95×96mm
Charging Temperature: 0-40°C
Discharging Temperature:
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: 1.44 kg
Max charging current: 6A
D-TAP socket number: 4
USB socket number: 1
