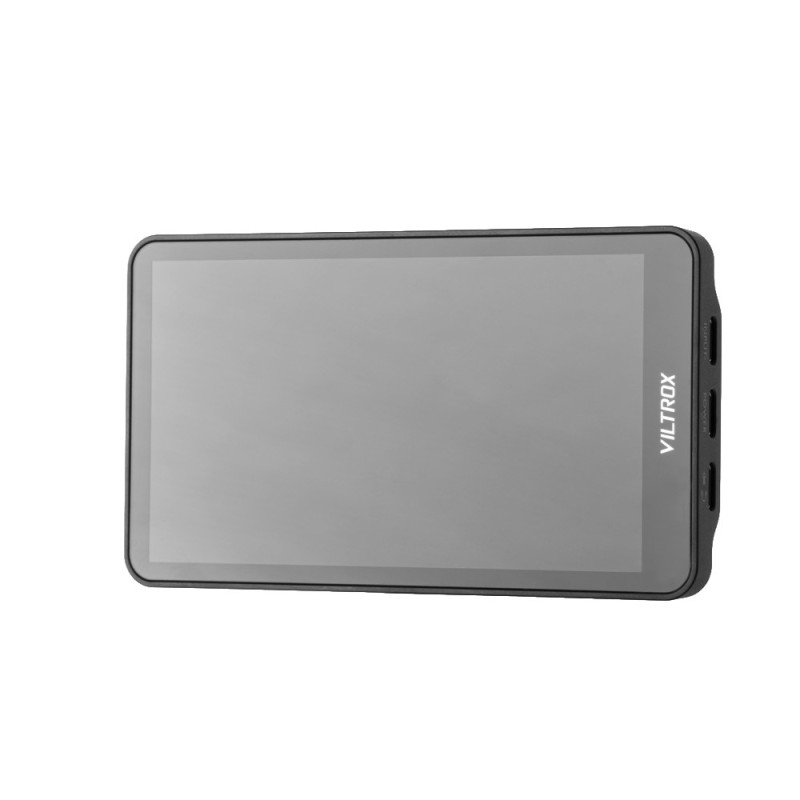

Viltrox DC-T1 VLOG Monitor
The Viltrox DC-T1 VLOG Monitor is a compact 5-inch external monitor for smartphones, designed for vlogging and lightweight handheld content creation.

Highlights

• 5-inch full-view screen with 1080 x 1920 resolution
• Brightness of 400 cd/m²
• Mounting via the supplied magnetic bracket
• All connections via Type-C: signal, power and audio
• Supports wired and wireless microphones, speakers and headphones
• Light and compact: approx. 112 g

Connecting
The monitor works entirely via Type-C. Connect one end of the supplied Type-C cable to the signal input of the monitor and the other end to the smartphone; the phone image then appears on the screen. The Type-C port of the phone must support DP signal output.

The 5-inch full-view screen has a resolution of 1080 x 1920 and a brightness of 400 cd/m², providing a clear image when framing and adjusting exposure.

Mounting
The supplied magnetic bracket features a cold shoe, an extension range of 63 to 88 mm and a 1/4" screw port with ARRI positioning hole. The monitor attaches magnetically to the bracket.

Audio
The headphone/microphone output works via Type-C and supports wired and wireless microphones, speakers and headphones. An adapter is required for 3.5mm analog devices. Connect the audio equipment before powering on the monitor.

Power
The separate Type-C power input allows the smartphone to be charged during use.

Characteristics

• Screen size: 5 inches
• Resolution: 1080 x 1920
• Brightness: 400 cd/m²
• Viewing angle: full-view
• Signal input: Type-C
• Power input: Type-C
• Headphone/microphone output: Type-C
• Working temperature: up to 50 °C
• Material: ABS+PC
• Dimensions: 127.6 x 72.8 x 13.5 mm
• Weight: approx. 112 g
• Bracket extension range: 63-88 mm
• Bracket tripod mount: 1/4" screw port with ARRI positioning hole
• Warranty: 2 years

Supplied accessories

• 1 x Viltrox DC-T1 VLOG Monitor
• 1 x Magnetic bracket
• 1 x Type-C cable
