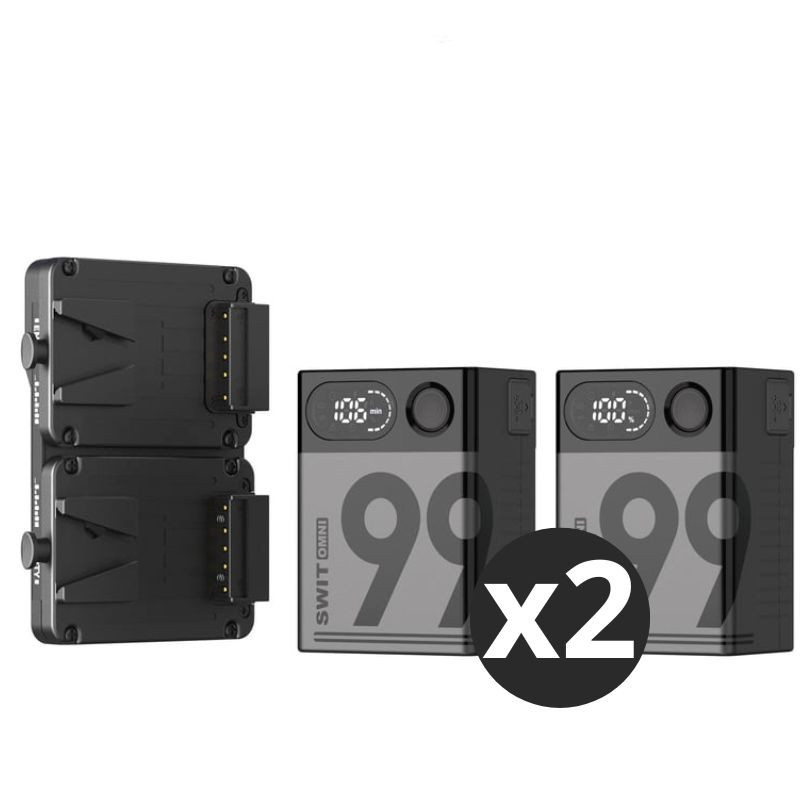

SWIT KAM20S | hotswap V-mount plate for dual Pocket Batteries

Hot swap application

KA-M20S is an extender plate for SWIT Pocket V-mount Batteries. Installed with 2x PB-M series batteries, the size is equivalent to a standard large capacity V-mount battery, and the KA-M20S plate can draw the 2 batteries one-by-one as hot swap mode, or use together as high load mode.

Fit 2x PB-M Pocket V-mount Batteries
Low power device: Hot swap mode
High power device: High load mode
Power indictors and hot swap indicators
SONY&RED power info display
Provide 2x D-tap sockets
Slim and light weight, balanced install
Multiple protection circuit

Two Power Modes
Hot Swap mode and High Load mode

When the device power consumption is less than single PB-M battery Max load (150W), the KA-M20S would be "Hot Swap mode" - 2 batteries one-by-one using, and the free battery can be changed any time.
When the device power consumption is more than single PB-M battery Max load (150W), the KA-M20S would be "High Load mode" - 2 batteries using together, and none of the batteries can be removed.
The Hot Swap mode and High Load mode can be automatically switched according to current power consumption of the device.


Power/Hot Swap Indicators
There're independent power indicators for both batteries. The flashing of top power LED indicates this battery is discharging. And the flashing of EMPTY LED means this battery is empty and need to change in time.

2 D-tap Power Output
There're 2 D-tap sockets on the top side and right side of the KA-M20S plate, for flexible connection to various cameras.

Swit Mini V-mount battery 14.4v D-tap, 8.4v Pole-tap, 65w USB-C, LED display

Swit's professional mini-size Mini V-mount camera battery with LED power info display and versatile DC interfaces including 65W USB-C and 8.4V DC.
The sleek design adds a touch of sophistication to your gear, making a statement on set or in any professional environment.
Power up your creativity with Swit-where innovation meets reliability.

OMNI batteries adopt the highest capacity of Sanyo Lithium cells, and the mini-size is neve compromized on power performance and interfaces.

Voltage: 14.4V (11-16.8V)
Capacity: 50Wh/3.45Ah
Constannt Load: 100W/8A
D-tap: 14.4V 8A
Pole-tap: 8.4V(Reg.) 3A
USB-C: 5V/9V/12V/15V/20V (Max) | 3.25A(65W) out; 1.5A(30W) om
USB-A: 5V/2A, 10W
Temperature: -20°C ~ +50°C
Size&Weight: 73x102x33mm
Weight: 0.33 kg
