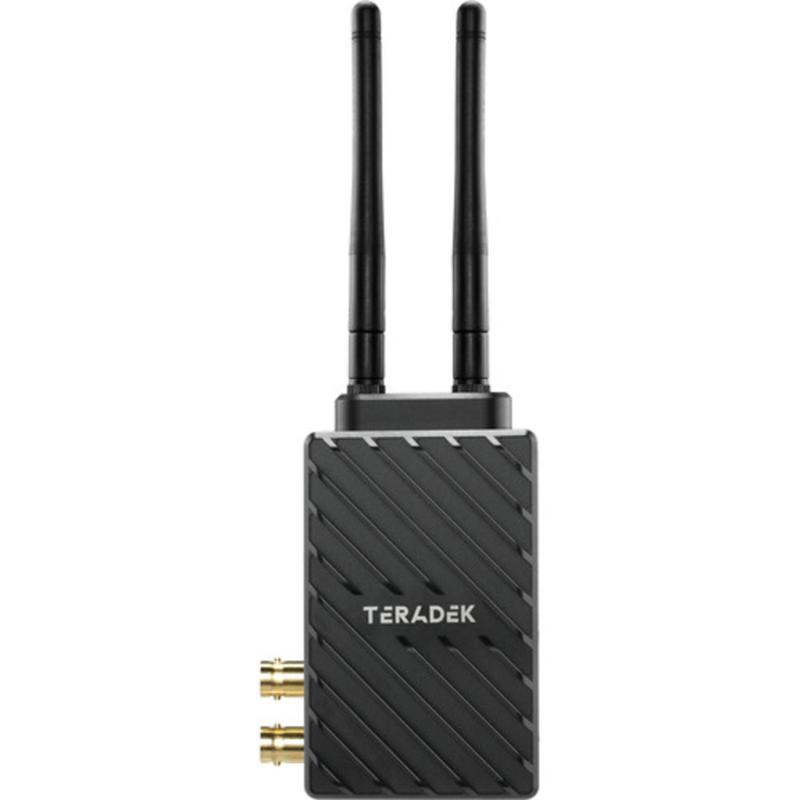

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter - Black

Transmit lossless HD video up to 750' with the Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter.
Featuring the same form factor as the Bolt 4K LT 750, this unit can transmit HDMI or 3G-SDI video signals with 10-bit 4:2:2 HDR support. This new line supports the now freely available 6 GHz wireless band.
The transmitter unit provides a powerful signal that can reach up to 750 meters of line of sight. It also features a bright OLED display and an SDI loop output.
The transmitter supports video transmission, as well as the associated metadata, to up to six receivers, while the range and compatibility are improved over previous models.
Built-in AES-256 encryption protects video from prying eyes, while noise rejection and an improved long-range mode keep video clean no matter how many devices are using the wireless spectrum.
The Bolt LT system also supports timecode transmission and start/stop triggers from the camera.

While it can transmit visually lossless video to any Bolt Series 4K receiver with zero delay using the 5GHz band, it requires a Bolt 6 receiver to use the 6GHz band.
The transmitter also supports a Bolt Manager desktop software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both of which provide a spectrum analyzer, channel selection tools, and remote configuration.
1/4"-20 and M3 mounting threads are provided to mount the transmitter to a variety of cameras, cages or rigs.

Compatible with Bolt 6 Series devices using the new 6GHz frequency band.
Cross-compatible with all Bolt 4K Series, Bolt 4K LT and Bolt 4K Monitor Module devices in the 5GHz signal spectrum
Up to UHD 4K30 4K video input via HDMI and up to 4K30 video output, up to 1080p60 input via SDI, SDI loop output
SDI Eye Pattern tool to verify SDI cable integrity
Supports Rec 2020 HDR with 4:2:2 10-bit color gamut
Improved long range mode
Small and lightweight chassis design
Transmits up to six Bolt 4K or Bolt 6 Series receivers
Encryption support AES-256
iOS/Android wireless app via Bluetooth features spectrum analyzer and remote setup

Inputs / Outputs
Antenna I/O: 2 x RP-SMA female
Video I/O:
° 1 x HDMI 1.4b input
° 1 x BNC input (3G-SDI)
° 1 x BNC output (3G-SDI) Loop
Embedded Audio:
° HDMI: 2 channels
° SDI
Audio I/O: None
Power I/O: 1 x 2-pin LEMO input (28 VDC)
Other I/O: 1 x micro-USB input
Encryption: AES 256-bit

Wirelessi
Wireless Range: 750' / 228.6 m (line of sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range:
° Non-DFS Frequencies
USA: from 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
° DFS Frequencies
US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes

Supported Format Video
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 ° SDI (10-Bit 4:4:4/4 :2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94
480i: 59.94

Audio format: 2ch 24bit 48kHz
Timecode support: Yes

Power supply
DC input power supply: 6 to 28V DC
Power consumption: 9W

Mounting
Mounting: 1 x 1/4"-20 female

Environmental protection
Environmental protection: None
Operating temperature: 32 to 72°F / 0 to 40°C

General
Build material: Aluminum
Dimensions: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Weight: 12.1 oz / 342 g
