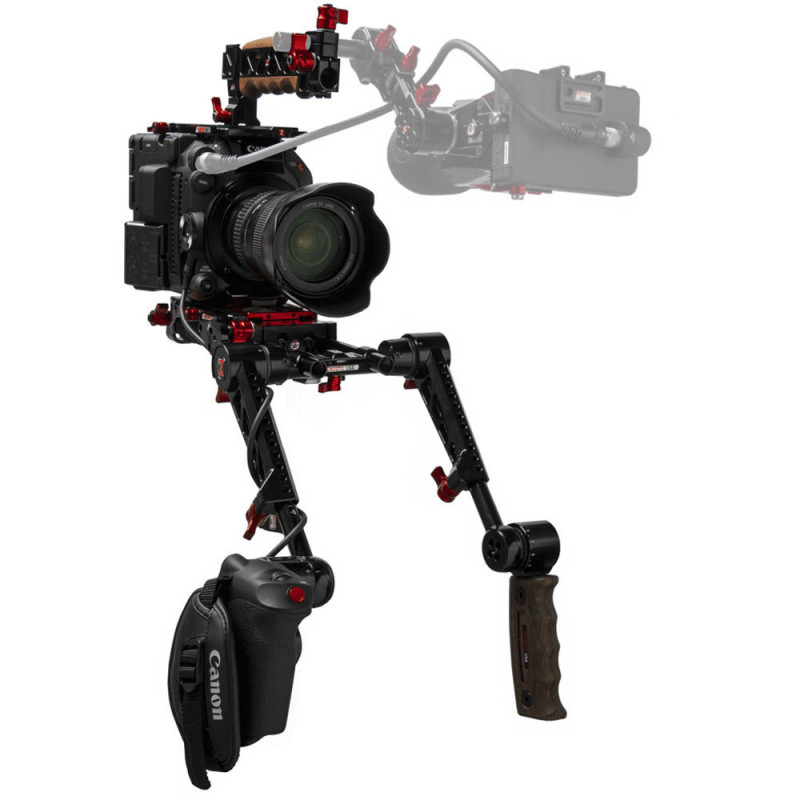

Zacuto C500 Mark II Recoil with Dual Trigger Grips

Shoulder Rig for Canon C500 Mark II
VCT Pro Baseplate with Shoulder Pad
Top Plate with Z-Rail & LCD Mount
Dual Trigger Grips & Recoil Handle

The C500 Mark II Recoil with Dual Trigger Grips from Zacuto is a shoulder rig designed specifically for the Canon C500 Mark II camera. It includes a VCT Pro Baseplate, a dedicated Top Plate, Dual Trigger Grips, and a Recoil Handle. This rig balances directly over your shoulder, putting your camera body behind the shoulder and relocating focus, monitoring, and camera controls forward to create a lighter, shorter, and properly balanced rig.
Zacuto VCT Pro Baseplate

With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.

A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.

The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.

An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
Key Features

Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
VCT14-compatible V-wedge
1/4"-20 and 3/8"-16 tripod mount holes
Ergonomic gel polymer shoulder pad
15mm LWS rod adapter on the rear
Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
ARRI M6 rosette
Three 1/4"-20 threaded holes for accessories
Includes two 6.5" 15mm rods
1/4"-20 and 3/8"-16 screws supplied
Made in the USA

In the Box :

Zacuto VCT Pro Baseplate
2 x 6.5" 15mm Rods
1/4"-20 Camera Screw
3/8"-16 Camera Screw

Zacuto Rosette Dual Trigger Grips
Zacuto Dual Trigger Grip Base
Zacuto Wooden Handgrip
Zacuto Rosette Relocator

Zacuto Canon C500 Mark II & C300 Mark III Top Plate
Zacuto Recoil Handle

Support Type Shoulder Support
Grip Type None
Camera Compatibility Universal
Mounting
Rod Standard 15 mm LWS / 60 mm Spacing
Included Rods 2 x 6.5" / 16.5 cm 15 mm Rod
Accessory Mounting Side: 3 x 1/4"-20 Thread
Camera Mounting Quick Release Plate with 1/4"-20 Screw, 3/8"-16 Screw
Tripod Mounting 1/4"-20 Thread, 3/8"-16 Thread, VCT-14
Rod Ports 2 x 15 mm Rod Port
Rosettes Side: 1 x ARRI Rosette w/ M6 Thread
General
Dimensions 14.25 x 4.25 x 2" / 36.2 x 10.8 x 5 cm (with Rods)
Weight 2.1 lb / 0.96 kg
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 11.7 x 10.4 x 7.8"
Zacuto Rosette Dual Trigger Grips Specs
General
Grip Type Dual Handgrips
Materials Aluminum, Wood
Packaging Info
Package Weight 2.52 lb
Box Dimensions (LxWxH) 10.65 x 10.65 x 4.75"
Zacuto Canon C500 Mark II & C300 Mark III Top Plate Specs
General
Accessory Mount Threads Multiple: 3/8"-16, ARRI-Style Anti-Twist, 1/4"-20
Rod Compatibility 15 mm
Dimensions and Weight Not Specified by Manufacturer
Packaging Info
Package Weight 0.42 lb
Box Dimensions (LxWxH) 6.65 x 4.25 x 0.75"
Zacuto Recoil Handle Specs
Grip Type Topside Handle
Mounting
Attachment Method Attaches via Rail Clamp
Rod Standard 15 mm Single Rod
Rod Ports 2 x 15 mm Rod Port
Accessory Mounting 1 x 1/4"-20 Thread
Shoe Mounting 2 x Built-In Cold Shoe Slot
Rosettes None
Rail Mounting 1 x NATO / Z-Rail Clamp
General
Materials Aluminum, Wood
Dimensions 7.5 x 3 x 3" / 19.1 x 7.6 x 7.6 cm
Weight 8 oz / 226.8 g
Packaging Info
Package Weight 0.75 lb
Box Dimensions (LxWxH) 6.1 x 5 x 2.5"
