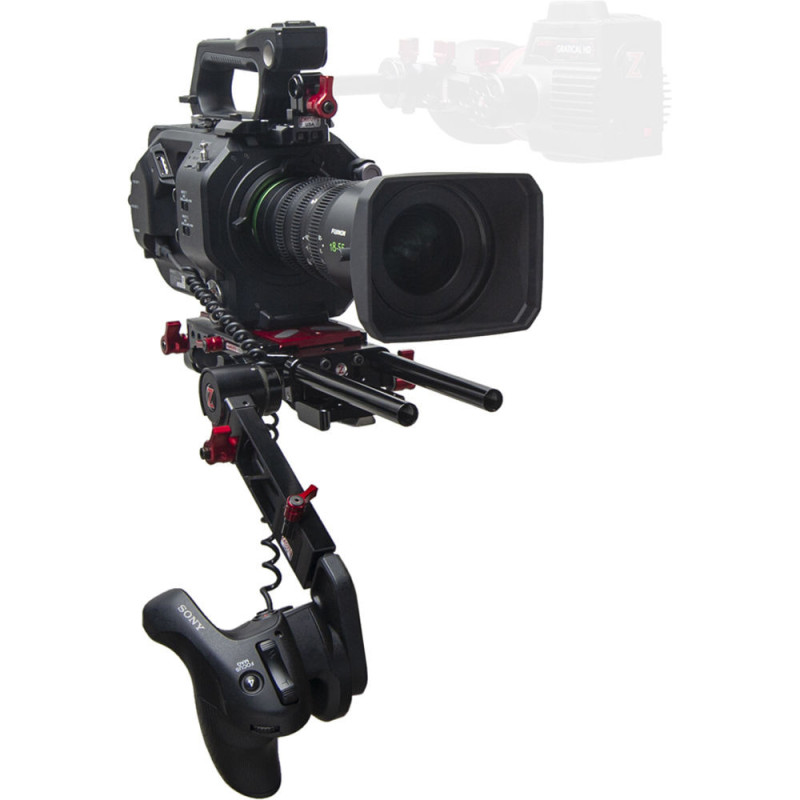

Zacuto Z-S7R-P2 Shoulder mount Rig for PXW-FS7
Zacuto
Shoulder mount Rig for PXW-FS7
The Zacuto Sony FS7 Recoil Pro V2 is a shoulder rig designed specifically for Sony FS7. It is comprised of the Zacuto VCT Pro Baseplate, FS7 Trigger Grip, and Axis Mini for Sony FS7. This shoulder rig follows in the Zacuto Recoil Rig philosophy of placing the balance point at the shoulder, which places the camera behind the shoulder and the focus, monitoring, and camera controls forward of the shoulder.
Accessoires
Souvent achetés ensemble
The Zacuto Sony FS7 Recoil Pro V2 is a shoulder rig designed specifically for Sony FS7. It is comprised of the Zacuto VCT Pro Baseplate, FS7 Trigger Grip, and Axis Mini for Sony FS7. This shoulder rig follows in the Zacuto Recoil Rig philosophy of placing the balance point at the shoulder, which places the camera behind the shoulder and the focus, monitoring, and camera controls forward of the shoulder.
The VCT Pro plate supports the camera with 10" of forward/back balance adjustment, and includes 15mm rods and rod clamps for rod-mounted accessories. The VCT Pro also enables your rig to go from your shoulder to tripod and back without removing accessories. The FS7 Trigger Grip allows you to relocate the FS7's handgrip to an extendable-articulating arm, so you can use all the grip's functions while comfortably supporting the rig on your shoulder. The included Axis Mini is specifically designed to work with the FS7, providing multiple points of articulation and tension adjustment so you can position the FS7's viewfinder to the best position for your shot.
Zacuto VCT Pro Baseplate
With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.
A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.
The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.
An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
Key Features
Rosette for mounting FS7 monitor, Gratical HD, or other compatible monitor/EVF
Four points of adjustment
Three independently controlled red tension lever with 360° rotation
Mounts on top of camera body using the included FS7 Rod Lock
Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
VCT14-compatible V-wedge
1/4"-20 and 3/8"-16 tripod mount holes
Ergonomic gel polymer shoulder pad
15mm LWS rod adapter on the rear
Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
ARRI M6 rosette
Three 1/4"-20 threaded holes for accessories
Includes two 6.5" 15mm rods
1/4"-20 and 3/8"-16 screws supplied
Made in the USA
Zacuto VCT Pro Baseplate
Zacuto Zgrip Trigger for Sony FS7
Zacuto Axis Mini for Sony FS7
