7" 1920 x 1200 Touchscreen Display HDMI & 3G-SDI IN & OUT, UHD 4K30.

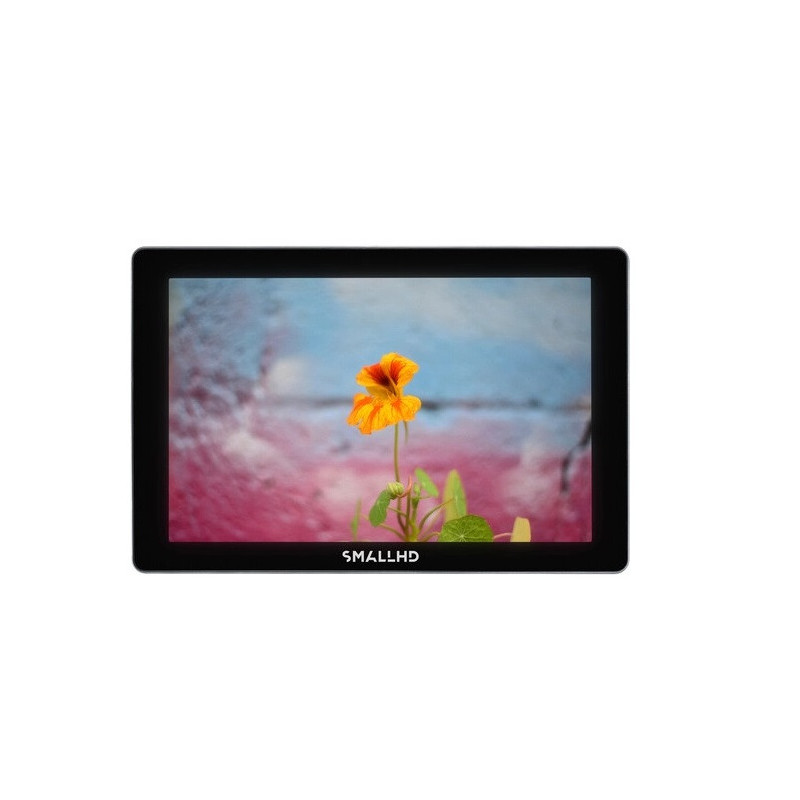

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

Using the intuitive SmallRig PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

Display Tools

Pixel zoom: 2x and 4x with pinch zoom
Aspect ratios: Preset and customizable
DSLR scale: Canon 5D Mk II and Canon 7D
Custom scale: Underscan only
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Cross conversion: HDMI to SDI, SDI to HDMI
Color focus assist: Adjustable style and intensity
Peaking: Adjustable intensity
False color: Spectrum, ARRI-style, and customizable
Zebra: Dual, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
Image capture, with dedicated button and image gallery
Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
LUT import: Via SD card or USB storage device
Image overlay: Opacity slider and blink setting
Image capture
Audio meters: Up to 8 channels

Display
Number of Displays: 1
Panel Type: IPS-Type LCD
Display Size : 7.02" / 17.8 cm
Active Area : 5.95 x 3.72" / 15.11 x 9.45 cm
Screen Resolution: 1920 x 1200
Aspect Ratio : 16:9
Viewing Angle : Horizontal: 160°
Touchscreen : Yes
Maximum Brightness: 1000 cd/m2
Contrast Ratio : 1000:1
Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) : 323 ppi
Color Gamut : 75% Rec. 709
Real-Time LUT Monitoring : SDR, HDR
Image Controls : Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra

I/O
Video:
1 x HDMI Type A Input
1 x HDMI Type A Output
1 x BNC (3G-SDI/HD-SDI) Input
1 x BNC (3G-SDI/HD-SDI) Output
Embedded Audio:
HDMI
SDI
Audio: 1 x 3.5 mm Headphone Output
Built-In Speaker: None
Power: 1 x Barrel (10 VDC) Input
Other I/O: 1 x USB 2.0 (Micro-USB) Input
Card Slot: 1 x SD
Wi-Fi: None
Format Support
Video Format:
HDMI (8/10/12/16-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50/25
480p: 60
576i: 50
480i: 59.94
Video Signal Conversion :
HDMI to SDI
SDI to HDMI

Power
DC Input Power: 10 to 34 VDC
Battery Type : 1 x L-Series (Interchangeable Mount)
Power Consumption: 17.3 W

Mounting
Mounting: 4 x 1/4"-20 Female

Environmental
Certifications: CE, FCC, IC, RoHS, as per Manufacturer
Operating Temperature: 30 to 100°F / -1 to 37°C
Storage Temperature: 0 to 120°F / -17 to 48°C

General
Material of Construction : Aluminum
Dimensions (W x H x D): 7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm
Weight : 26 oz / 737 g
Warranty Length: Limited 1-Year Warranty
