Atomos 5.2" 4K HDMI Recording Monitor,6K30 ProRes RAW with Select Cameras

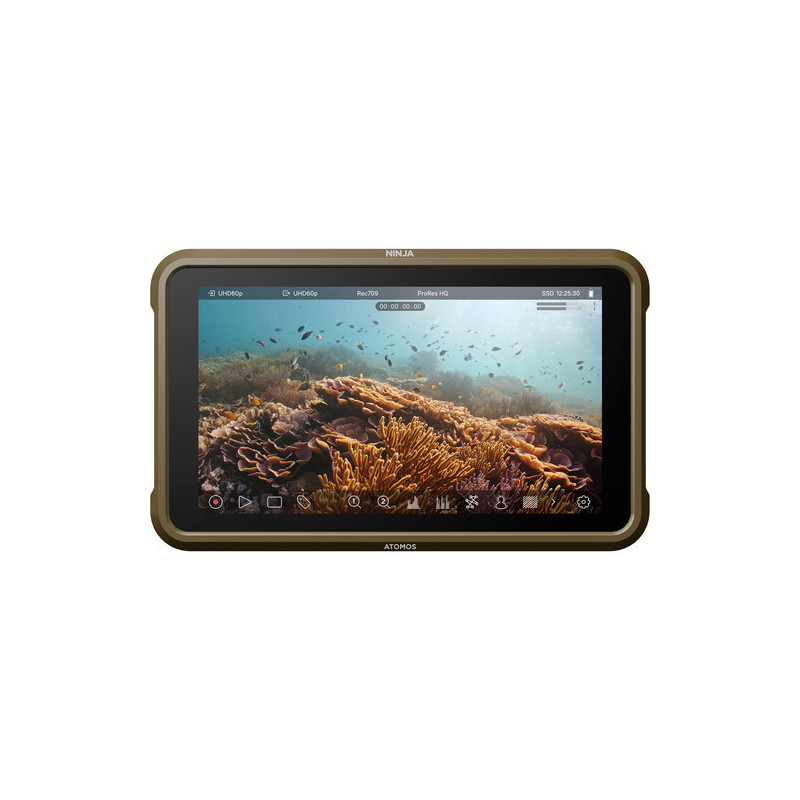

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja 5.2" 4K HDMI Recording Monitor is a 5.2" on-camera monitor and recorder ideal for use on your next set.
This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 6K with compatible cameras.
The Ninja retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

° AtomOS 11 Operating System
Built for the new Ninja, the AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation.
Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assist functions available.
The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.

° 5.2" Touchscreen Display
The 5.2" IPS touchscreen of the Ninja offers a 1920 x 1080 resolution with 1000 cd/m² brightness for viewing in broad daylight.
The 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support ensure color-accurate, high-quality monitoring of your footage.

° Comprehensive Color
The Ninja supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

° HDMI Interface, ProRes RAW Recording
The Ninja's HDMI input and output ports support up to DCI 4K video at 60 fps in monitoring, recording, and playback modes. 3.5K RAW at 60 fps footage is supported with select cameras.
Over 55 different cameras support RAW recording over HDMI with the Ninja up to 6K at 30 fps.

° Record 4K HDR Gaming
The Ninja can be configured as a stand-alone system for UHD 4K, HDR, and high frame rate gaming capture.
Record, monitor, and instantly review your gameplay for posting to YouTube or other platforms.

° SSD Recording
The Ninja is compatible with the Atomos Master Caddy II and Master Caddy III 2.5" hard drive units which support direct recording to the drives.
You can also record onto compact AtomX SSDmini drives and CFAST II cards using a separately available adapter.

Display
Panel Type: IPS-Type LCD
Display Size: 5.2" / 13.2 cm
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Touchscreen: Yes
Maximum Brightness: 1000 nits / cd/m2
Bit Depth / Color Support: 8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility: Hybrid Log Gamma
Pixels Per Inch (ppi): 427 ppi
Real-Time LUT Monitoring: HDR
Image Controls:
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Inputs / Outputs
Video I/O:
° 1 x HDMI 2.0 Input
° 1 x HDMI 2.0 Output
HDCP Support: No
Embedded Audio: HDMI
Audio I/O:
° 1 x 1/8" / 3.5 mm Input
° 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: None
Power I/O: 1 x Barrel Input
Other I/O: 1 x USB-C
Media/Memory Card Slot: None
File System Support: exFAT
Wi-Fi: None
Bluetooth: None
Mobile App Compatible:
Yes: iOS Only
App Name: AtomRemote
*As of August, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support
Video Format:
° HDMI (8/10/16-Bit 4:2:2):
6K Raw: 30
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 120/100/60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
° Gamma Curve:
ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log,
Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support: Yes

Recording
Pulldown Conversion: 2:2, 3:2
Camera Trigger: HDMI
Pre-Roll Record:
Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats:
x
DNxHR
DNxHD
ProRes
Maximum Audio Tracks: 8
Reference Input: None
Phantom Power: None

Power
DC Input Power: 6.2 to 16.8 VDC
Built-In Battery: None
Battery Type: 1 x L-Series
Power Consumption: 30 W

Mounting:
1 x ARRI Anti-Twist 1/4"-20
2 x 3/8"-16 Female

Environmental
Operating Temperature: 104°F / 40°C

General
Material of Construction: Aluminum, Plastic
Dimensions: 5.9 x 3.6 x 1.2" / 151 x 91.5 x 31 mm
Weight: 12.7 oz / 360 g
