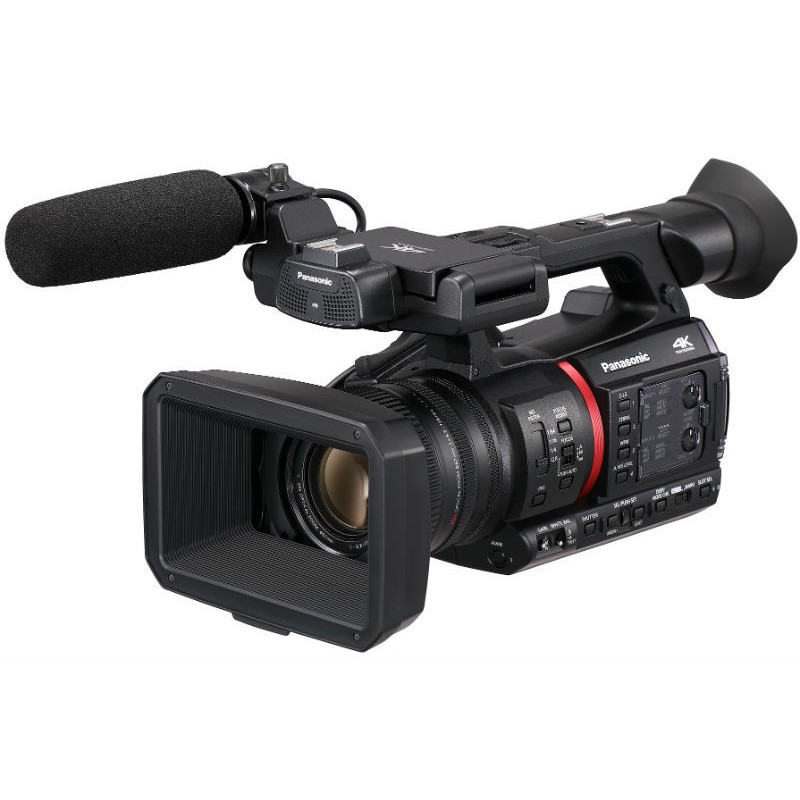

AG-CX350

Panasonic

Capteur 1 pouce 4K HDR 10 bits 15 millions de pixels, Connectivité IP - NDI HX, Streaming  RTMP/RTSP
Enregistrement sur cartes P2HD, zoom optique x20, stabilisateur 5 axes
Codec HEVC 10 bit UHD/60P
Controle sans fil via tablette Android ou IOS
Sorties Simultanées HDMI et/ou SDI
Camera synchronisables

Plus de détails


4 620,00 € TTC
3 850,00 € HT
462
PBS points
1ere Livraison prévue Mars 2019

AG-CX350 Panasonic - Nouvelle camera 4K avec codec HEVC sur cartes P2HD

  • Capteur 1 pouce 4K HDR 10 bits 15 millins de pixels,
  • Connectivité IP - NDI HX,
  • Streaming  RTMP/RTSP
  • Enregistrement sur cartes P2HD,
  • zoom optique x20 avec stabilisateur 5 axes
  • Codec HEVC 10 bit UHD/60P
  • Controle sans fil via tablette Android ou IOS
  • Sorties Simultanées HDMI et/ou SDI
  • Camera synchronisables / entrée Time Code

Specifications

General

  • Power:
    DC 7.28 V (when the battery is used)
    DC 12 V (when the AC adaptor is used)
  • Power Consumption:
    17 W (when the LCD monitor is used)
    11.5 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Operating Humidity: 10 % to 80 % (no condensation)
  • Weight:
    Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories)
    Shooting: approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder)
  • Dimensions: 180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches) (excluding protrusion and eye cup)

Camera Unit

  • Pickup Device: 1.0-type (effective size) MOS solid state image sensor
  • Effective Pixels: 15,030,000 pixel
  • Lens:
    Optical image stabilizer lens, optical 20x motorized zoom
    F value: F2.8 to F4.5
    Focal length: f=8.8 mm to 176 mm
    35 mm equivalent: 24.5 mm to 490 mm
    Filter Diameter: 67 mm
    ND Filter: Clear, 1/4, 1/16, 1/64
    IR Filter: Incorporates the ON/OFF control function
    Shortest Shooting Distance (M.O.D.): Approx. 10 cm (W), 1.0 m (T) from the front lens
  • Gain Setting:
    L/M/H selector switch
    –3 dB to 18 dB (Adjustable in 1 dB steps)
    24dB, 30 dB, 36 dB switched (when assigning [S. GAIN] to the USER button)
  • Color Temperature Setting: ATW, ATW LOCK, A ch, B ch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
  • Shutter Speed: When [SYSTEM MODE] = 59.94 Hz
    • 59.94i/59.94p mode:
      1/60 sec. (shutter off), 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    • 29.97p mode: 1/30 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    • 23.98p mode: 1/24 sec., 1/48 sec., 1/50 sec. (shutter off), 1/60 sec.,1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec. When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
    • 25p mode: 1/25 sec., 1/50 sec. (shutter off), 1/60 sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec., 1/4000 sec., 1/8000 sec., 1/10000 sec.
  • Shutter Speed: When [SYSTEM MODE] = 59.94 Hz (Slow Shutter)
    • 59.94i/59.94p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.
    • 29.97p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec.
    • 23.98p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec. When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.
    • 25p mode: 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.
  • Shutter Speed:  When [SYSTEM MODE] = 59.94 Hz (Synchro Scan)
    • 59.94i/59.94p mode: 1/60.0 sec. to 1/7200 sec.
    • 29.97p mode: 1/30.0 sec. to 1/7200 sec.
    • 23.98p mode: 1/24.0 sec. to 1/7200 sec.
  • Shutter Speed:  When [SYSTEM MODE] = 50.00 Hz
    • 50i/50p mode: 1/50.0 sec. to 1/7200 sec.
    • 25p mode: 1/25.0 sec. to 1/7200 sec.
  • Shutter Open Angle: 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)
  • VFR Recording Frame Rate:
    When [SYSTEM MODE] = 59.94 Hz
    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32,34, 36, 40, 44, 48, 54, 60 (fps)
    When [SYSTEM MODE] = 50.00 Hz
    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30,32, 34, 37, 42, 45, 48, 50 (fps)
  • Super Slow Recording:
    When [SYSTEM MODE] = 59.94 Hz
    1920 x 1080 (FHD): shooting frame rate 120 fps
    When [SYSTEM MODE] = 50.00 Hz
    1920 x 1080 (FHD): shooting frame rate 100 fps
  • Sensitivity: When [HIGH SENS.] mode
    F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
    F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)
  • Horizontal Resolution: 2000 TV or higher (UHD: center) 1000 TV or higher (FHD: center)
  • i.Zoom: ×32 (FHD), ×24 (UHD)
  • Digital Zoom: ×2/×5/×10
  • Lens Hood: Hood with lens cover

Memory Card Recorder

  • Recording Media:
    SDHC memory card (4 GB to 32 GB),
    SDXC memory card (32 GB to 128 GB)
    UHS-I/UHS-II UHS Speed Class3 supported,
    Video Speed Class V90 supported
    microP2 card (A series, B series)
  • Recording Slot: microP2/SDXC UHS-II card slot x 2
  • Recording Pixels: 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD),720 × 480(SD), 720 × 576 (SD)
  • System Frequency: 59.94 Hz/50.00 Hz
  • Recording File Format: MOV (AVC), MOV (HEVC), AVCHD
  • 2 Slot Functions: Relay Rec, Simultaneous Rec, Background Rec
  • Special Recording Functions:
    Pre Rec, Interval Rec, Time Stamp

Digital Video

  • Quantization:
    MOV: 4:2:2 10 bit/4:2:0 8 bit/4:2:0 10 bit (HEVC)
    AVCHD: 4:2:0 8 bit
  • Video Compression Format:
    H.264/MPEG-4 AVC High Profile
    H.265/MPEG-H HEVC Main10 Profile

Digital Audio

  • Recording Audio Signal: MOV: 48 kHz/24 bit, 2 ch, Linear PCM AVCHD: 48 kHz/16 bit, 2 ch, Dolby Audio™
  • Headroom: 12 dB/18 dB/20 dB switchable (menu)

Live Streaming

  • Video Compression Format: H.264/MPEG-4 AVC Main Profile, High Profile
  • Audio Compression Format: AAC-LC
  • Network Protocol: RTSP/RTP/RTMP

Video Output

  • SDI OUT:
    BNC x 1, SDI REC REMOTE supported HD: 0.8 V [p-p], 75 Ω SD: 0.8 V [p-p], 75 Ω
    Output format (4:2:2 10 bit):
    1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
    1280 × 720: 59.94p, 50p
    720 × 480: 59.94i • 720 × 576: 50i
  • HDMI OUT : HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
    Output format (4:2:2 10 bit):
    3840 × 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
    1920 × 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
    1280 × 720: 59.94p, 50p
    720 × 480: 59.94p • 720 × 576: 50p
  • VIDEO OUT: 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 Ω

Audio Input/Output

  • Built-in Microphone: Stereo microphone
  • Input 1/2: XLR (3-pin) x 2 (INPUT1, INPUT2)
    Input high impedance, LINE/MIC/MIC+48V (switchable SW)
    MIC: −40 dBu/−50 dBu/−60 dBu (switchable menu)
    LINE: +4 dBu/0 dBu (switchable menu)
  • SDI OUT: Linear PCM 2 ch
  • HDMI OUT: Linear PCM 2 ch
  • Headphone: 3.5 mm diameter stereo mini jack x 1
  • AV OUT: 3.5 mm diameter stereo mini jack x 1,Output level: 600 Ω, 316 mV
  • Speaker: 20 mm diameter, round x 1

Other Input/Output

  • TC IN/OUT: BNC x 1, Used as the input and output terminals (switchable menu)
    Input: 1.0 V to 4.0 V [p-p] 10 KΩ - Output: 2.0 V ± 0.5 V [p-p] low impedance
  • REMOTE: 2.5 mm diameter super mini jack
  • LAN: RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
  • USB 2.0 HOST: Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)
  • USB 3.0 DEVICE: USB 3.1 GEN1 Type-C, USB Mass storage function - No USB bus power function
  • DC IN 12V: DC 12 V EIAJ Type 4

Monitor/Viewfinder

  • LCD Monitor: 3.5 type TFTLCD color monitor (3:2), approx. 1,620,000 dots, Touch panel
    video display (16: 9) area: Approx. 1,370,000 dots
  • Viewfinder: 0.39 type OLED (organic EL display), approx. 2,360,000 dots,video display (16: 9) area: approx. 1,770,000 dots
  • 1x Camera AG-CX350Battery (AG-VBR59),
  • 1x Battery charger (AG-BRD50),
  • 1x AC adaptor, AC cable,
  • 1x Microphone holder kit,
  • 1x Shoulder strap, Eye cup,
  • 1x Lens hood*,
  • 1x Grip belt*
  • 1x Operating instructions
