Camcorder 4K XAVC, 10 bit- 3G-HDSDI, 1xCMOS 1" - Zoom 12x

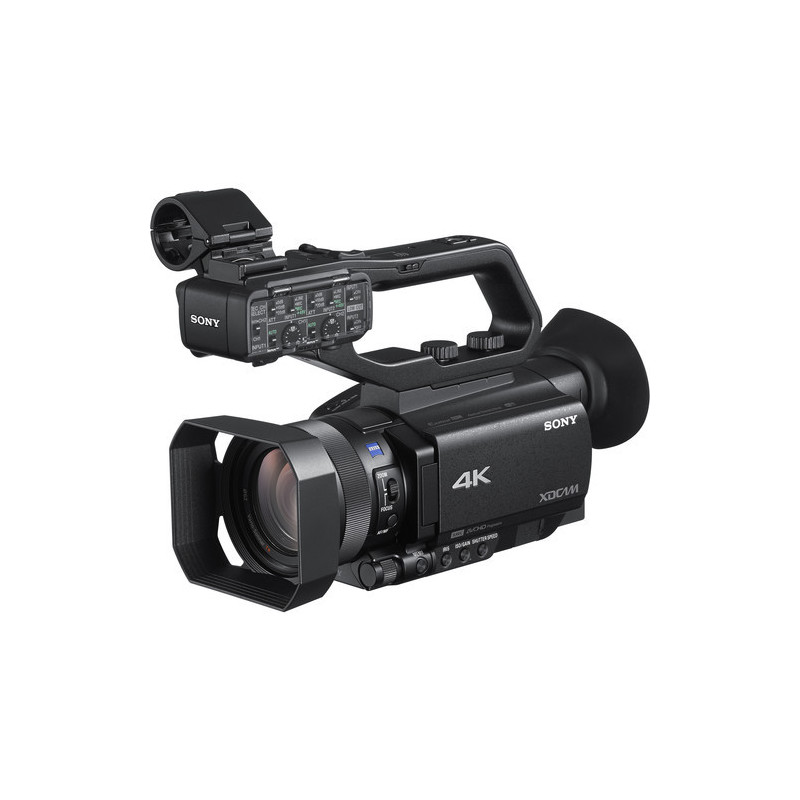

The Sony PXW-Z90V 4K HDR XDCAM camcorder offers phase-detection autofocus (AF) and HDR capabilities in a compact, palm-style body.
Suitable for corporate events, broadcast news, and television production, the PXW-Z90V camcorder features a stacked 1" Exmor RS CMOS sensor with UHD 4K (3840 x 2160) resolution, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5" touchscreen LCD monitor.
It can record 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key).
S-Log3/S-Gamut3 functions offer users additional image control. Additional features include built-in 2.4/5 GHz for multiple streaming via RTMP/RTMPS protocols and FTP options.

The PXW-Z90V's Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking?a boon when shooting UHD 4K, especially for individual operators.
In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject's focus.
The PXW-Z90V's 3.5" touchscreen is used to quickly switch focus among subjects.
AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.

Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your 4K recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the PXW-Z90V's 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.

The PXW-Z90V camera supports Sony's Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long recording of 4K UHD video at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p.
Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay mode to create a backup.
The PXW-Z90V's 3G-SDI output offers integration with professional studio environments.

The PXW-Z90V provides external microphone support via two 3-pin XLR audio inputs (line, mic, mic +48V phantom) and a 3.5mm mini input. You can also use the PXW-Z90V's built-in microphone to record audio when shooting.
For multicamera productions, the PXW-Z90V integrates seamlessly with Sony's MCX-500 live switcher (available separately).




Camera
Sensor 1.0"-type (13.2 mm x 8.8 mm), back-illuminated Exmor RS CMOS sensor
Built-In ND Filters Clear, 1/4, 1/16, 1/64
Effective Pixels (16:9): 14.2 MP (approximate)
(3:2): 12.0 MP (approximate)
Gain -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, AGC
Minimum Illumination With 33 dB Gain:
Standard 60i: 3 lux (1/60 second)
Standard 50i: 3 lux (1/50 second)
LowLux 60i: 1.7 lux (1/30 second)
LowLux 50i: 1.7 lux (1/25 second)
Shutter Speed 60i: 1/8 - 1/10,000
50i: 1/6 -1/10,000
24p: 1/6 - 1/10,000
Slow & Quick Motion Function 60i 2160p: 1,2,4,8,15,30 fps
50i 2160p: 1,2,3,6,12,25 fps

60i 1080p: 1,2,4,8,15,30,60,120 fps
50i 1080p: 1,2,3,6,12,25,50,100 fps
White Balance Preset
Indoor: 3200K
Outdoor: 5600K ±7 steps
Color Temperature Set Range: 2300-15,000K

Onepush
A, B, Auto-selectable
Lens
Zoom Ratio Optical: 12x
Clear Image Zoom: 18x (4K) / 24x (HD)
Digital Extender: 48x (HD)
Lens Wide Angle 29mm (35mm equivalent)
Recording
Video Format XAVC QFHD: MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD: MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 (CBKZ-SLMP required): MPEG-2 422P at HL 4:2:2 Long profile
MPEG HD420 (CBKZ-SLMP required): MPEG-2 MP at HL 4:2:0 Long profile
MPEG HD Proxy (CBKZ-SLMP required): MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD: MPEG-4 AVC/H.264 AVCHD 2.0 format-compatible
Audio Format XAVC QFHD: Linear PCM 2-Ch, 24-bit, 48 kHz
XAVC HD: Linear PCM 2-Ch, 24-bit, 48 kHz
XAVC Proxy: AAC-LC 2-Ch¿16-bit, 48 kHz
MPEG HD422 (CBKZ-SLMP required): Linear PCM 2-Ch, 24-bit, 48 kHz
MPEG HD420 (CBKZ-SLMP required): Linear PCM 2-Ch, 16-bit, 48 kHz
MPEG HD Proxy (CBKZ-SLMP required): AAC-LC 2-Ch, 16-bit, 48 kHz
AVCHD: Linear PCM 2-ch, 16-bit, 48 kHz / Dolby Digital 2-Ch, 16-bit, 48 kHz

Input/Output
Audio Input 2 x 3-pin XLRF, line/mic/mic +48 V selectable
Audio Output Integrated multi/micro-USB jack
DC Input DC jack
HDMI Output 1 x Type A
Headphone Output 1 x Stereo 3.5 mm mini-jack
Remote Integrated multi/micro-USB jack
Stereo mini-jack (2.5 mm F)
SDI Input 1 x BNC: 3G/HD/SD
SMPTE 424M/292M/259M standards
Speaker Output Monaural
USB 1 x Multi/micro-USB
Video Output 1 x Multi/micro-USB
1 x Composite, 1.0 Vpp, 75 Ohms
Wi-Fi
Frequency Bands 2.4, 5 GHz
Media Specifications
Media Type 1 x SD/SDHC/SDXC & Memory Stick PRO Duo
1 x SD/SDHC/SDXC
Monitoring
LCD Monitor 3.5" (8.9 cm), 1.56 M dots
Viewfinder 0.39" (1 cm), 2.36 M dots, OLED
General
Battery Operating Time Recording (approximate): 140 minutes with NP-FV70A battery (with LCD, XAVC QFHD 2160/30p, 60 Mbps)
Playback (approximate): 265 minutes with NP-FV70A battery (with LCD, XAVC QFHD 2160/30p, 60 Mbps)
Built-In Microphone Omnidirectional stereo electret condenser microphone
Power Consumption (Average) 6.5 W (recording with EVF with XAVC QFHD 2160/30p 60 Mbps)
6.9 W (recording with LCD and XAVC QFHD 2160/30p 60 Mbps)
Power Requirements DC In: 8.4 V
Battery: 7.4 V
Storage Temperature -4 to 40°F (-20 to 60°C)
Dimensions (W x H x D) 5.1 x 7.1 x 11.3" (130 x 181.5 x 287 mm)
Weight 2.2 lb (1020 g)


Additional Features

Additional Features
Accessories hot shoe, Relay Recording, Clear Image Zoom, slow motion recording, night vision infrared imaging, double slot recording, Hybrid Log-Gamma (HLG) recording
Low Lux / Night Mode
Yes
Features
Clear Image Zoom, Hybrid Log-Gamma (HLG) recording, Relay Recording, accessories hot shoe, double slot recording, night vision infrared imaging, slow motion recording
