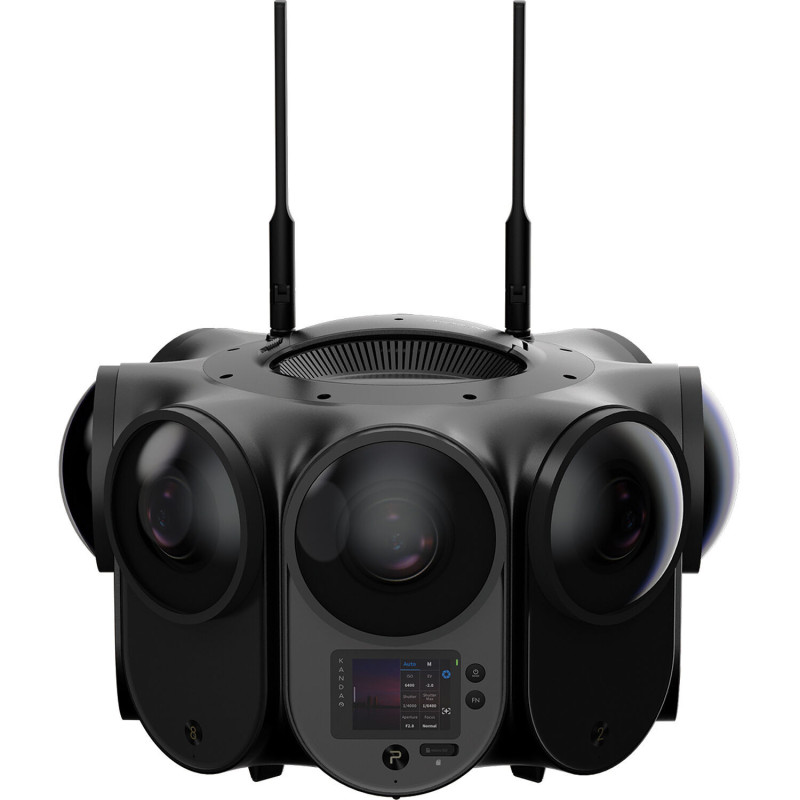

Kandao Obsidian Pro 12K 3D 360 Cinematic VR Camera with 8TB SSD Kit

Capture up to 12K30 x 12K30 Video/Stills
12-Bit Raw & 10-Bit 4:2:2 Recording
14 Stops of Dynamic Range, H.265 Support
Internal 4TB SSD Module for Recording
8 x APS-C Sensors, GPS, 9-Axis Gyroscope
8 x 6K f/2.8 195° Fisheye Lenses
Each Lens Has 14 Elements in 10 Groups
Wi-Fi 6, Bluetooth 5, Gigabit Ethernet
USB Type-C/HDMI Type A Output
ISO up to 12,800 in Low-Light Con

Visualize reality by capturing stunning 3D or 2D panoramic VR video and stills in up to 12K resolution using the Obsidian Pro 12K 3D 360 Cinematic VR Camera with 4TB Internal SSD Kit from Kandao. The Obsidian Pro is ready to capture all your adventures and experiences for stereoscopic 3D VR panoramic display with immersive 3D support at massive resolutions up to 12K30 x 12K30 or 6K60 x 6K60 resolutions. The Pro features eight APS-C sensors for each of its eight 195° f/2.8 fisheye lenses for beautiful cinematic capture with 24MP images, 14 stops of dynamic range, 12-bit raw and 10-bit 4:2:2 recording, and low-light ISO support up to 12,800.

Each of the Obsidian Pro 195° lenses records video output to the included high-speed 8-in-1 SSD module that comes with eight internal 512GB SSDs totaling 4TB. Or it can output video using the USB Type-C output to an external drive. It features 3.5mm audio input for embedding into your video and an HDMI type A output for up to 8K30 high-definition monitoring. The sensor array features a 9-axis gyroscope and a built-in GPS to keep your footage level and steady. Recording options include time-lapse functions, log mode, and DNG-format still capture, and you can record the files using 12-bit Kdraw, 10-bit ProRes 422 HQ, or 8-/10-bit H.265 codecs. It also features Wi-Fi 6, Bluetooth 5, and Gigabit Ethernet connectivity to provide control, preview, and file transfer options using the downloadable Kandao app.

The camera is powered using the included 12 VAC power adapter or by using an optional V-mount battery. It can be mounted on a tripod or rig using the multiple 1/4"-20 or 3/8"-16 threads on its base. A hard-shell carry case, two antennas, lens covers for all eight lenses, an Ethernet cable, and a lens cleaning cloth are also included with the Obsidian Pro camera.

In the Box

Kandao Obsidian Pro 12K 3D 360 Cinematic VR Camera with 8TB SSD Kit
8-in-1 SSD Module
8 x 1T Total 8TB Module SSD
8 x Lens Cover
2 x Antenna
AC Adapter
Power Adapter Cable
Gigabit Ethernet Cable (3.3')
Lens Cleaning Cloth
Hard-Shell Carry Case

360 Stitched Video Recording
Stitching Resolution 12K
6K
Internal/External Stitching External Stitching
Supported Spherical Projection Types Cubic, Equirectangular, Stereographic
360 Stitched Video Format External 3D:
11520 x 11,520 at 30 fps (60, 100 Mb/s H.265)
5760 x 5760 at 60 fps (60, 100 Mb/s H.265)
External 2D:
11520 x 5760 at 30 fps (H.265)
5760 x 2880 at 60 fps (H.265)
Still Image Support DNG
24 MP (11,520 x 11,520)
JPEG
24 MP (11,520 x 11,520)
Number of Lenses 8
Camera per Lens
Sensor Type CMOS Sensor
Sensor Resolution Effective: 24 Megapixel (11,520 x 11,520)
Optics per Lens
Maximum Aperture f/2.8 to 16
Lens Elements 14
Angle of View Ultra Wide: 195°
Recording per Lens
Video Format 7680 x 4320p at 30 fps (H.265/HEVC)
Recording
Media/Memory Card Slot None
Internal Storage 4 TB
Exposure Control
Shutter Speed 1/20000 - 1/60 Seconds (Photo)
1/20000 - 1/25 Seconds (Video)
ISO Sensitivity Photo/Video
100 to 12,800 in Manual Mode
Display
Size Not Specified by Manufacturer
Features
Wi-Fi Yes, Wi-Fi 6 (802.11ax)
Tripod Mounting Thread 1/4"-20 Female
Input/Output Connectors
Inputs 1 x 1/8" / 3.5 mm Stereo Audio
1 x RJ45 Gigabit Ethernet
Outputs 1 x HDMI Type A 2.0
1 x USB 3.1 Type-C SSD
Microphone Input Via Dedicated Port
Headphone Jack No
General
Power Adapter 110 - 220 VAC
Power Consumption Operating: 160 W
Operating Temperature 32 to 86°F / 0 to 30°C
Dimensions (W x H x D) 14.5 x 14.5 x 9.3" / 369.2 x 369.2 x 236.8 mm
Weight 24.6 lb / 11.16 kg
