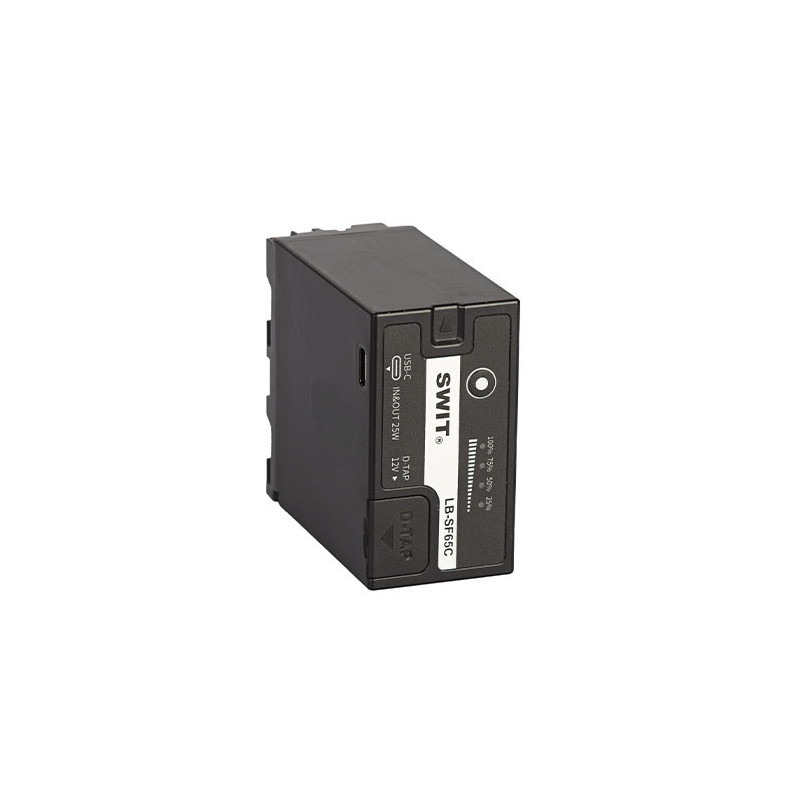

65Wh NP-F Battery with D-tap and USB-C
LB-SF65C is a new 65Wh large capacity NP-F type DV battery with regulated 12V D-tap output and 25W USB-C in/out, widely compatible with pro-video gears.


65Wh Large Capacity
LB-SF65C consists of 6pcs battery cells and has 65Wh/9020mAh large capacity to keep your video devices powered for longer time. The constant power load is 30W/4A.


Reg. 12V D-tap Output
The LB-SF65C NP-F battery provides a D-tap power output socket of regulated 12V voltage, widely compatible with various kinds of video devices.

* The D-tap has 7.2V to 12V (Reg.) conversion and it' s not allowed to charge input via this D-tap socket.


USB-C 25W Output
Fast Charging iPhone 12/13

LB-SF65C provides a USB-C sockets, supports 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power output to fast charge iphone 12/13 and all kinds of USB-C smart phones or tablets, with BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.


USB-C 25W Charging Input
You can also charge LB-SF65C by USB-C charger. Supports PD 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A, 25W power input, which means you can fully charge the 65Wh battery within 3.5 hours.



4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.



4-way Charging
LB-SF65C can be charged by any NP-F charger. Use SWIT LC-D421 4-way charger you can charge 4 batteries simultaneously, and fully charging within 5 hours.

-SONY NP-F series battery comparable
-7.2V nominal voltage Li-ion battery
-65Wh / 9.02Ah capacity
-30W / 4A constant power load
-Built-in 12V reg. D-tap output
-Built-in 25W USB-C input and output
-4-level LED power indicator
-Multiple circuit protections



Nominal Voltage: 7.2V
Capacity: 65Wh, 9.02Ah
Max power load: 30W, 4A
D-tap: 12V (reg.) 1.7A, 20W
USB-C:
25W input: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
25W output: 5V 3A, 9V 2.8A, 12V 2.1A, 15V 1.7A, 20V 1.3A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries: SONY NP-F770, NP-F970
Dimension: 71×39×76mm
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: Approx 345g
