90Wh Canon BP-A Battery
with D-tap and USB-C

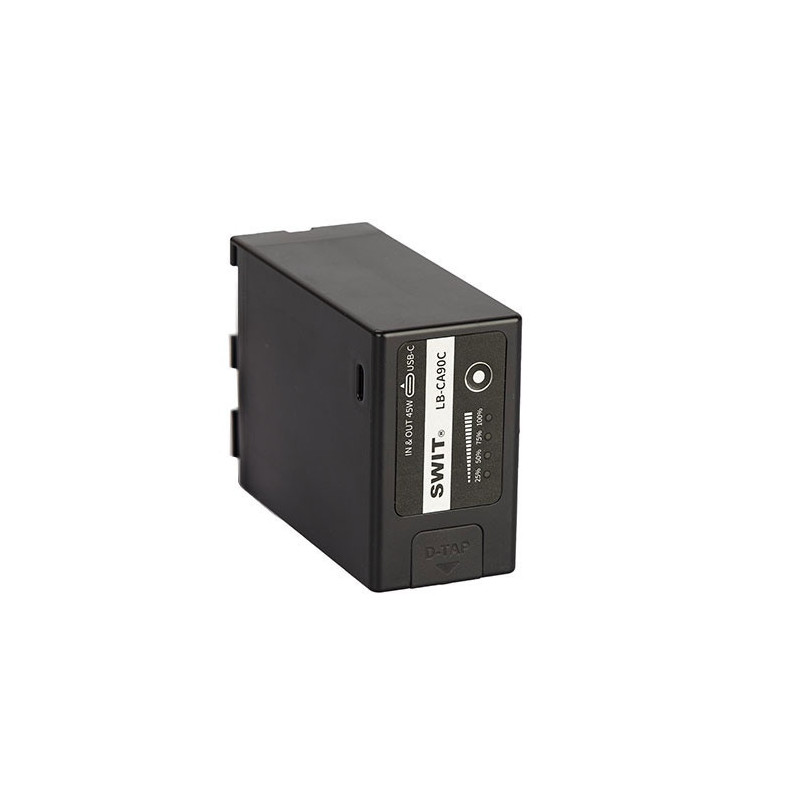

LB-CA90C is a 90Wh large capacity Canon BP-A compatible battery with D-tap output and 45W USB-C in/out, for Canon EOS C70, C200, C300MK2, C500MK2, XF605, XF705 cameras.

90Wh Large Capacity
LB-CA90C consists of 8pcs battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 50W/4A.

14.4V D-tap Power Socket
The LB-CA90C BP-A battery provides a D-tap power socket of 11-16.8V voltage, 50W/4A load for various kinds of video devices. You can also charge the battery via the D-tap socket.

USB-C 45W for Laptop
LB-CA90C provides a USB-C socket of 5V/9V/12V/15V/20V(Max) 2.25A, 45W power output for various kinds of laptop, tablets or smart phones, supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

(For Macbook 13, Macbook Pro 13/15, ThinkPad New S2/T470/X270, Dell XPS 13/Latitude, HP Spectre x360-13/EliteBook Folio G1, Samsung Chromebook Plus, Google Pixelbook, Huawei Matebook, etc)

USB-C 45W Charging Input
You can also charge LB-CA90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.

4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage

D-tap Charging
Besides USB-C charging, LB-CA90C can be charged by Canon original CG-A20 charger, or by SWIT ultra portable 2-way D-tap charger PC-U130B2, fully charge within 2h 40m.

14.4V nominal voltage Li-ion battery
Canon BP-A30/A60 battery comparable
For Canon EOS-C70, C200, C300MK2, C500MK2
For Canon XF605, XF705
90Wh / 6.2Ah capacity
Built-in 14.4V D-tap output / Charging input
Built-in 45W USB-C input and output
4-level LED power indicator
Multiple circuit protections

Nominal Voltage: 14.4V
Capacity: 90Wh, 6.2Ah
Max power load: 50W, 4A
D-tap: 14.4V, 50W, 4A
USB-C:
45W input: 5V/9V/12V/15V/20V, 2.25A
45W output: 5V/9V/12V/15V/20V, 2.25A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries: Canon BP-A30, BP-A60
Compatible cameras: Canon EOS-C70, EOS-C200,
Canon EOS-C300 Mark ii, EOS-C500 Mark ii
Canon XF605, Canon XF705
Dimension:70×42×96mm
Charging Temperature: 0-40°C
Discharging Temperature:
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: Approx 460g
