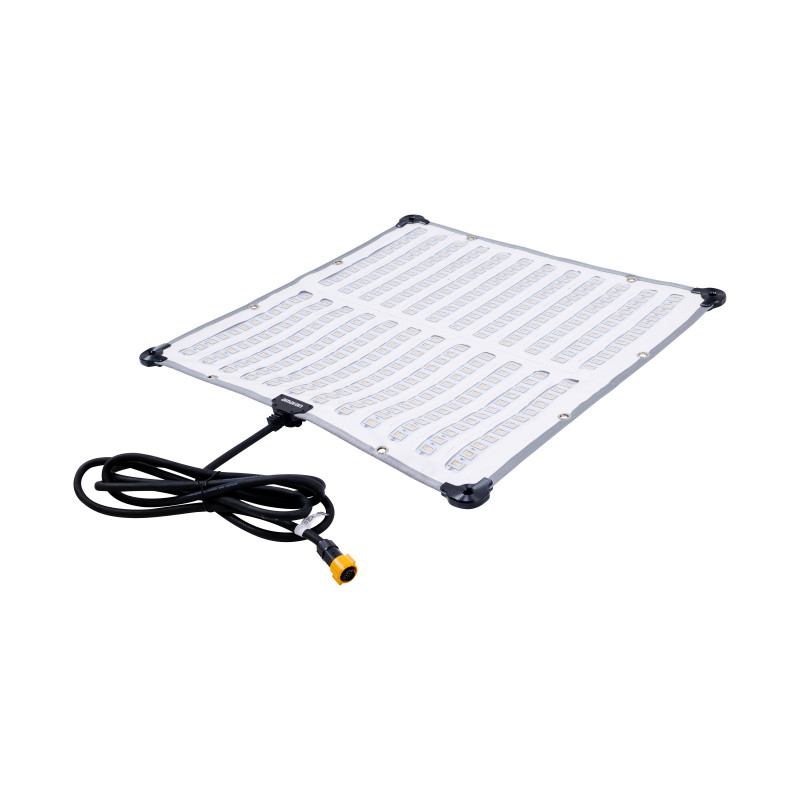

Aputure F22c RGBWW 2x2 LED Flexible Mat 200W

Introducing the amaran F22c, a high-output, full-color flexible LED mat that offers superb performance and versatility for a variety of users ?from filmmakers to videographers, content creators, and even photographers. With 200W of output power, this ultra-lightweight 2'x2' fixture is capable of outputting 6,420+ lux at 1 meter (5600K), surpassing anything else in its class. Install the included foldable softbox and instantly turn this flexible mat into an ultra-thin soft light that will make any subject shine with stellar CRI and TLCI scores of 95+ and 97+. And with stepless dimming from 0 to 100%, you can achieve the perfect light level every time. The F22c features RGBWW LEDs for complete color control, as well as tunable CCT from 2,500K to 7,500K, providing endless possibilities for creative lighting decisions through 360° HSI control, 46 color gel presets, or even up to 15 unique lighting effects.Additionally, with the F22c's Sidus Link app control, you can be sure to always dial in your lighting design. Building the F22c is quick and convenient with the compact, folding X-Frame that stretches out the F22c into a rigid panel. This frame can be attached directly to a C-Stand grip head using the Straight Baby Pin adapter or onto any standard light stand with the included Right Angle Baby Pin and tilting stand mount, providing an ideal option for all types of filmmakers and creators.
Attach the included softbox, one of two strengths of diffusion, and the fabric grid using the integrated hook-and-loop fabric to further finesse your lighting design and add a beautifully controlled soft light to your scene. You can also swap out the softbox for an amaran F22 lantern modifier*, allowing you to replicate a volumetric lantern or pancake light with an ultra-light full-color fixture.With an integrated 3-meter long head cable and the included 3-meter long extension, the F22c can reach out 6 meters away from its compact control box. Engineered from the ground up for the perfect balance of size, weight, and intensity, the F22c's LED and heat dissipation design results in a heavy-weight punch from a flexible feather-weight design.Each control box is also outfitted with a multi-voltage battery plate so you can use a capable 14.4V battery to achieve half power, or max out the intensity with full power when using compatible 26V or 28.8V batteries. You can also achieve full output when using the AC power supply, each of which comes with a specially designed battery plate bracket for a seamless user experience. And when combined with the F22c's soft carrying case, the F22c becomes a portable light that you can take anywhere for any production. The Sidus Link app unlocks tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX, all from your phone or tablet. And unique to the newest fixtures in the amaran product line, you can control the F22c using DMX with a special USB-C to 5-Pin DMX512 In & Out Adapter Cable, granting professional-level control to your new favorite flexible light.
target audience
The amaran F22c is ideal for content creators, indie filmmakers, and videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users full control over the output and can easily add a splash of color to their scene. The natural design of the flexible light results in a medium-sized source with ample surface area for an innately soft light while still producing enough intensity to impact the scene. Users who want a
200W chipset in a traditional 2' x 2' form factor but still need output need look no further than the F22c, which outpaces all other 2' x 2' full-color light mats. Users who need a compact and portable design will appreciate the single multi-voltage V or Gold-Mount battery plate that allows for full output without the need for a dual plate system, and allows them to use fewer, higher voltage batteries. And when combined with the long head cable and optional lantern accessory, users can extend the fixture out as a portable & mobile follow-light. Aputure & amaran's ecosystem and Sidus Link App integration also make the amaran F22c perfect for users who prefer to adjust their lights remotely so they can spend more time behind or in front of their camera. With the Source Match, Color Picker, and Gel control functions, choosing the perfect color for the scene has never been easier. Even users who need DMX control can use the
F22c with the USB-C to DMX512 Adapter cable for professional-level control. As an ultra-light, ultra-thin fabric light, the F22c is compatible with a wide variety of use cases and excels in on-the-go travel and tight spaces. And as a large, soft light that can fold compactly, it is the perfect close-up key light.

What's In the Box:
amaran F22c RGBWW 2x2 LED Flexible Mat: 1
amaran F22c Control Box: 1
amaran F22c Head Cable Extension (3m): 1
amaran F22 Support Bracket: 1
amaran Flexible Light Right Angle Baby Pin Adapter: 1
amaran Flexible Light Straight Baby Pin Adapter: 1
Tilting Stand Mount: 1
amaran F22 Softbox Frame: 1
amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth): 1
amaran F22 Diffusion Cloth 2 (2.5 Stop): 1
amaran F22 Light Control Grid: 1
AC Power Supply: 1
AC Power Cable: 1
amaran Flexible Light Carrying Case: 1Main Features
Product Description

amaran F22c Photometrics
-200W Output 2'x2' RGBWW Flexible LED Mat
-240W Max Power Draw
-6,420+ lux @ 1 meter (5600K)
-HSI Full Color Control
-Tunable CCT from 2,500K to 7,500K
-Tunable Green-Magenta Adjustment (Plus/Minus Green)
-CRI: 95+, TLCI: 97+, CQS: 96+, SSI (Tungsten): 83+, SSI (D56): 74+
-Stepless Dimming from 0 to 100%
-Sidus Link App Control
-3 Meter Head Cable Extension
-DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
-46 Color Gel Presets
-4 User-Configurable Preset Buttons
-15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe,Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
-Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
-Easy Mounting AC Power Supply with Included Battery Bracket
-Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
-Soft Carrying Case Included
-Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
-Lantern Accessory with Light Control Skirt (Sold Separately)

0.5m 1m 3m

2500K 18,040 lux / 1,676 fc 5,500 lux / 511 fc 672 lux / 62 fc
3200K 18,760 lux / 1,743 fc 5,750 lux / 534 fc 703 lux / 65 fc
4300K 19,720 lux / 1,832 fc 5,930 lux / 551 fc 736 lux / 68 fc
5600K 21,260 lux / 1,975 fc 6,420 lux / 596 fc 790 lux / 73 fc
6500K 22,250 lux / 2,067 fc 6,770 lux / 629 fc 823 lux / 77 fc
7500K 23,250 lux / 2,160 fc 7,080 lux / 658 fc 870 lux / 81 fc
