Aputure full-color LED tube light 40W RGBWW 744

Introducing the brand-new amaran T4c 4-foot full-color LED tube light! This feature-packed light is the perfect fit for all levels of content creators, filmmakers, and photographers. With its 40W RGBWW output that produces 744+ lux at 1

meter (5600K), full-color control, tunable CCT from 2,500K to 7,500K, and green-
magenta adjustment, the T4c can be tailored to the needs of your production. It is designed with a variety of unique mounting solutions including NATO rail, 1/4- 20in threading, 3/8-16in threading with Arri-style locating pins, and a 77Wh swappable battery pack for approximately 1.7 hours of runtime at max output, allowing you to both rig and power your light anywhere without worrying about additional cables or outlets. And with stellar CRI and TLCI scores of 95+ and 98+, stepless dimming from 0 to 100%, and Sidus Link App control, the T4c will always give you the quality of light you need.
Featuring the latest in amaran RGBWW technology, the T4c utilizes 46 color gel presets and 15 different lighting effects, each with layers of variable control, to inject creativity into lighting any scene. Using the Sidus Link app, you can also utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. And unique to the newest fixtures in the amaran product line, you can control the T4c using DMX with a special USB-C to 5-Pin DMX512 In & Out adapter cable, adding professional-level control to your
favorite tube light.
You can also leave the tube bare with its over 180° aperture, giving you more coverage in your shot design, or attach a tool-less, collapsible 45° light control grid* to the tube to finesse your lighting design.
The amaran T4c is a powerful, lightweight, and versatile tube light that is the perfect addition to your lighting kit.

FEATURES :

40W Output RGBWW LED Tube Light
50W Max Power Draw
744+ lux @ 1 meter (5600K)
HSI Full Color Control
Tunable CCT from 2,500K to 7,500K
Tunable Green-Magenta Adjustment (Plus/Minus Green)
CRI: 95+, TLCI: 98+, CQS: 96+
SSI (Tungsten): 84+, SSI (D56): 73+
Unique & Friendly Mounting Solutions: NATO Rail, 1/4-20in, 3/8-16in with Arri-Style Locating Pins
77Wh Swappable Battery Grip Included
Approx. 100min. Run Time @ Max Output with Battery Grip
Stepless Dimming from 0 to 100%
Sidus Link App Control
DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter Cable (Sold Separately)
46 Color Gel Presets
15 Built-in Lighting FX: Club Lights, Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, Party Lights, Fireworks
Soft Carrying Case Included
Silent Passive Cooling
Operating Temperature: -10°C ~ 40°C / -4°F ~ 113°F
Compatible with amaran Tube Light Control Grid (SoldSeparately)

Target Audience:
The amaran T4c is ideal for content creators, indie filmmakers, and photographers who need a 4-foot linear lighting solution with full-color control, battery-operability, and intuitive mounting options.
The optical and linear design of the T4c lights are perfect as in-camera practicals, wrapping soft lights, and accent lights for people or products. The RGBWW chipset of the T4c gives users full control over the output and can easily add a splash of color to their scene. By using a removable, rechargeable battery, the T4c suits users who want to be able to quickly swap batteries on set and maintain the longevity & lightweight design of their light fixtures if batteries ever need to be replaced.
Aputure & amaran's ecosystem and Sidus Link App integration also make the amaran T4c perfect for users who prefer to adjust their lights remotely so they can spend more time behind or in front of their camera. With the Source Match, Color Picker, and Gel control functions, choosing the perfect color for
the scene has never been easier.
A lot of intention went into the design of the mounting solutions for the amaran tube lights. With NATO rail compatible mounting running along the length of the light for flexible positioning, Arri-style locating pins for secure locking, and six of the ubiquitous 1/4-20in screw threads, users can intuitively
rig these tube lights with their existing camera and grip accessories, removing the need to purchase proprietary tube clips or clamps.

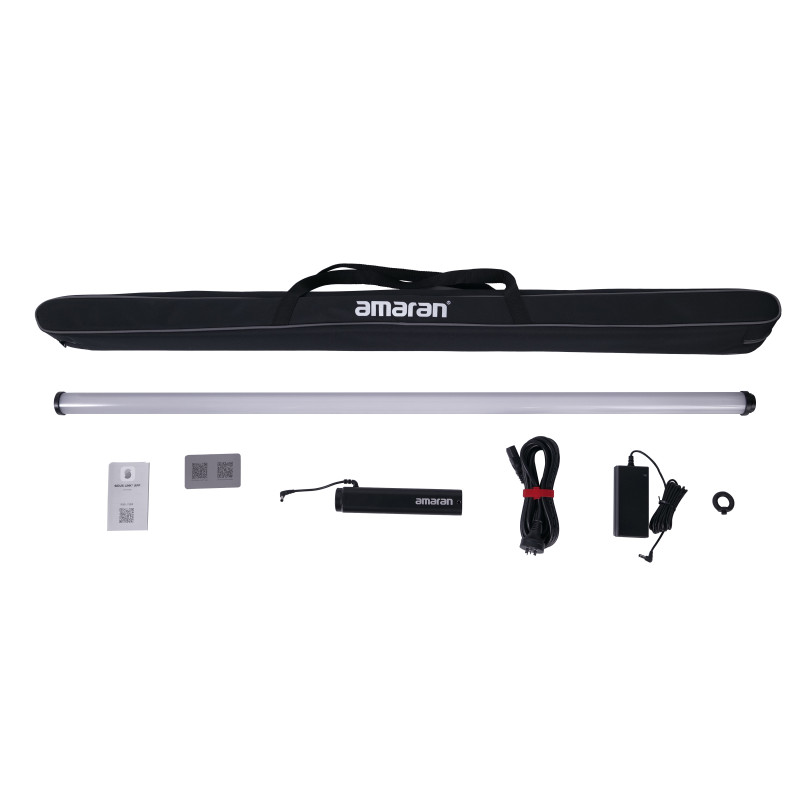

What is in the box:

amaran T4c RGBWW Tube Light 1
amaran Tube Battery Grip 1
AC Power Supply 1
AC Power Cable 1
3/8-16in Eyebolt 1
amaran T4c Carrying Case 1

CCT 0.5m 1m 2m 3m
2500K 1,856 lux / 172 fc 676 lux / 62 fc 215 lux / 20 fc 108 lux / 10 fc
3200K 1,898 lux / 176 fc 690 lux / 64 fc 219 lux / 20 fc 110 lux / 10 fc
4300K 1,971 lux / 183 fc 715 lux / 66 fc 227 lux / 21 fc 114 lux / 11 fc
5600K 2,052 lux / 190 fc 744 lux / 69 fc 238 lux / 22 fc 119 lux / 11 fc
6500K 2,117 lux / 196 fc 768 lux / 71 fc 244 lux / 23 fc 122 lux / 11 fc
7500K 2,163 lux / 200 fc 785 lux / 72 fc 249 lux / 23 fc 125 lux / 12 fc


CCT 2500K ~ 7500K
CRI =95
TLCI =98
CQS =96
TM-30 RF (Average) 94
TM-30 RG (Average) 102
SSI (Tungsten) =84
SSI (D56) =73
Color Chipset Red, Green, Blue, Warm White,
Cool White
Beam Angle (Half-Peak) 35°
Field Angle =180°
Max Power Output 40W
Max Power Consumption 50W
Operating Current 2.1A

Operating Voltage

AC Power Supply 24V
D-Tap Battery 12 - 16.8V
Battery Grip 12 - 16.8V, 24V

DC Input Connector 5.5 x 2.5mm DC Barrel Connector
DC Power Cable DC Barrel Cable (3m)
AC Power Cable IEC C13 AC Power Cable (4m)
Operating Temperature -10°C ~ 40°C / -4°F ~ 113°F
Control Methods

On-board, Sidus Link App, DMX
via USB-C to 5-Pin DMX512 In &
Out Adapter Cable
Connectivity Bluetooth 5.0 (Sidus Mesh)
Bluetooth Operating Range =80m / 262.5ft
Firmware Upgradeable Sidus Link OTA
Display Type OLED
Cooling Method Passive Cooling

Mounting :

End Caps 2x 3/8-16in Screw Thread Rear
NATO Rail, 6x 1/4-20in Thread, 3x
3/8-16in Thread with Arri-style
Locating Pin

Estimated LED Lifetime (L70) 50,000 Hours
Estimated Color Shift Over Lifetime
(CCT) 2% over 6,000 Hours
Certifications CE, FCC, cTUVus, KC, NCC, ROHS

Packing Dimensions 127 x 12 x 11cm / 50 x 4.7 x 4.3in
Net Weight 2.33kg / 5.1lbs
Gross Weight 3.47kg / 7.6lbs
Carton Qty 6pcs / Carton
Carton Dimensions 129 x 25 x 31cm / 51 x 10 x 12in
Carton Weight 22kg / 48.5lbs
