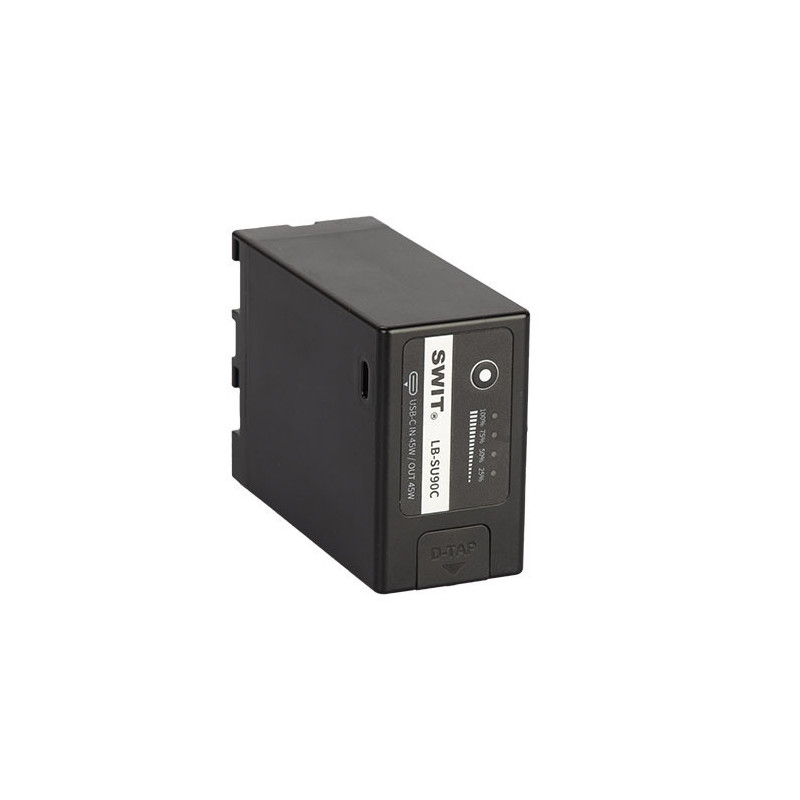

Battery series SONY BP-U Battery 90Wh with D-tap and USB-C.
LB-SU90C is a new 90Wh large capacity BP-U type DV battery with D-tap output and 45W USB-C in/out, for SONY PXW FS5/FS7, PXW-FX6/FX9, PXW-Z280/X280 etc.

90Wh Large Capacity
LB-SU90C consists of 8pcs battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 70W/6A.

14.4V D-tap Power Socket
The LB-SU90C BP-U battery provides a D-tap power socket of 11-16.8V voltage, 70W/6A high load for various kinds of video devices. You can also charge the battery via the D-tap socket by SWIT PC-U130B2.

USB-C 45W for Laptop
LB-SU90C provides a USB-C socket of 5V/9V/12V/15V/20V(Max) 2.25A, 45W power output for various kinds of laptop, tablets or smart phones, supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.

(For Macbook 13, Macbook Pro 13/15, ThinkPad New S2/T470/X270, Dell XPS 13/Latitude, HP Spectre x360-13/EliteBook Folio G1, Samsung Chromebook Plus, Google Pixelbook, Huawei Matebook, etc)

USB-C 45W Charging Input
You can also charge LB-SU90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.

4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage

4-way Charging
LB-SU90C can be charged by SWIT S-3602U 2-way charger, SWIT PC-U130B2 D-tap charger, or LC-D421 4-way charger. By the LC-D421, You can charge 4 batteries simultaneously, and fully charging within 3.5 hours.

14.4V nominal voltage Li-ion battery
Compatible with SONY BP-U batteries
Display remaining power info in camera
90Wh / 6.2Ah capacity
Built-in 14.4V D-tap output / Charging input
Built-in 45W USB-C input and output
4-level LED power indicator
Multiple circuit protections

Specifications

Nominal Voltage: 14.4V
Capacity: 90Wh, 6.2Ah
Max power load: 70W, 6A
D-tap: 14.4V, 70W, 6A
USB-C:
45W output: 5V/9V/12V/15V/20V, 2.25A
BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP
Original batteries: SONY BP-U30, BP-U60, BP-U100
Compatible cameras: SONY PXW-FS5/FS7, PXW FX6/FX9, PXW-Z280/X280 etc
NOTE: NOT compatible with PMW-300
NOTE: NOT compatible with original Sony charger
Dimension: 70×42×96mm
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight: Approx 462g
