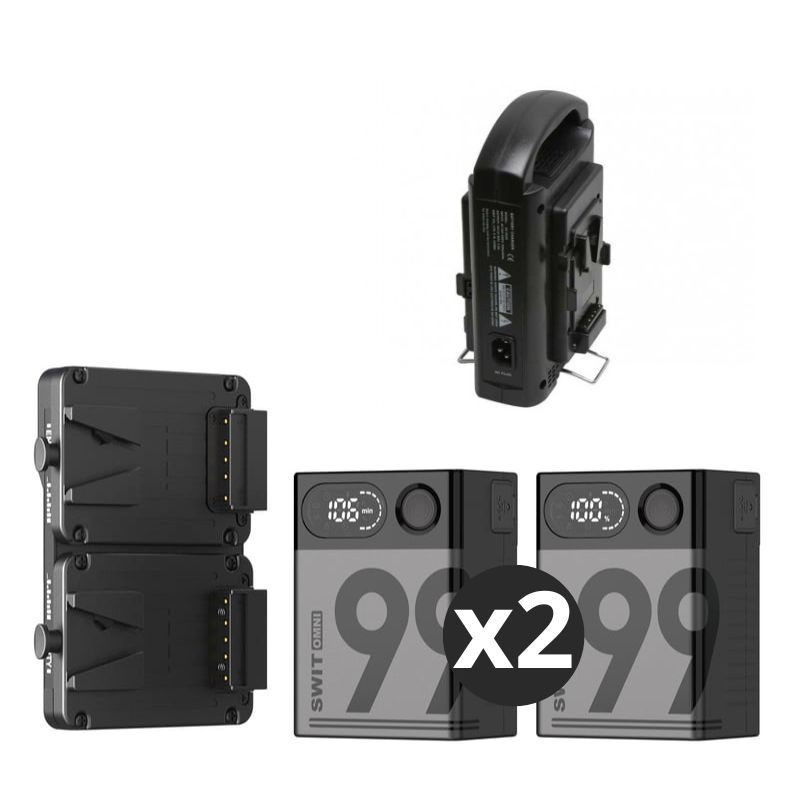

Pack 2 Omni-99S avec chargeur double et platine KA-M20S
      Pack 2 Omni-99S avec chargeur double et platine KA-M20S

      Pack 2 Omni-99S avec chargeur double et platine KA-M20S

      559,56 €
      TTC
      466,30 € HT

      Kit Batterie Swit

      • SC302S Chargeur Battery Vlock 2 canaux sequentiels
      • Omni-99S Batterie VMount compacte 99W
      • KAM20S | hotswap V-mount plate for dual Pocket Batteries

      Ref : OMNI-99S/SC-302S

      Quantité :
        Garanties Constructeur France - Europe

      Garantie constructeur France - Europe

        Information livraison

      Livraison France métropolitaine offerte à partir de 100 Euros TTC



      Garantie / SAV / Retour

        Paiements Sécurisés

      Paiement CB 1 à 4 fois, Virement, Mandat Administratif

      SWIT KAM20S | hotswap V-mount plate for dual Pocket Batteries


      Hot swap application

      KA-M20S is an extender plate for SWIT Pocket V-mount Batteries. Installed with 2x PB-M series batteries, the size is equivalent to a standard large capacity V-mount battery, and the KA-M20S plate can draw the 2 batteries one-by-one as hot swap mode, or use together as high load mode.

      Fit 2x PB-M Pocket V-mount Batteries
      Low power device: Hot swap mode
      High power device: High load mode
      Power indictors and hot swap indicators
      SONY&RED power info display
      Provide 2x D-tap sockets
      Slim and light weight, balanced install
      Multiple protection circuit

      Two Power Modes
      Hot Swap mode and High Load mode

      When the device power consumption is less than single PB-M battery Max load (150W), the KA-M20S would be "Hot Swap mode" - 2 batteries one-by-one using, and the free battery can be changed any time.
      When the device power consumption is more than single PB-M battery Max load (150W), the KA-M20S would be "High Load mode" - 2 batteries using together, and none of the batteries can be removed.
      The Hot Swap mode and High Load mode can be automatically switched according to current power consumption of the device.


      Power/Hot Swap Indicators
      There're independent power indicators for both batteries. The flashing of top power LED indicates this battery is discharging. And the flashing of EMPTY LED means this battery is empty and need to change in time.

      2 D-tap Power Output
      There're 2 D-tap sockets on the top side and right side of the KA-M20S plate, for flexible connection to various cameras.

      Swit Mini V-mount battery 14.4v D-tap, 8.4v Pole-tap, 65w USB-C, LED display

      Swit's professional mini-size Mini V-mount camera battery with LED power info display and versatile DC interfaces including 65W USB-C and 8.4V DC.
      The sleek design adds a touch of sophistication to your gear, making a statement on set or in any professional environment.
      Power up your creativity with Swit-where innovation meets reliability.

      OMNI batteries adopt the highest capacity of Sanyo Lithium cells, and the mini-size is neve compromized on power performance and interfaces.

      Voltage: 14.4V (11-16.8V)
      Capacity: 50Wh/3.45Ah
      Constannt Load: 100W/8A
      D-tap: 14.4V 8A
      Pole-tap: 8.4V(Reg.) 3A
      USB-C: 5V/9V/12V/15V/20V (Max) | 3.25A(65W) out; 1.5A(30W) om
      USB-A: 5V/2A, 10W
      Temperature: -20°C ~ +50°C
      Size&Weight: 73x102x33mm
      Weight: 0.33 kg

      SC302S SWIT - Chargeur double séquentiel pour batterie VLock

      Chargeur séquentiel à 2 canaux pour batteries à monture VLock

      Le SC-302S dispose de 2 plaques de montage en V et peut charger 2 batteries une par une séquentiellement. La sortie de charge est DC 14-20 V, 1,9 A.

      Indicateurs de charge LED pour chaque canal
      Le SC-302S dispose d'indicateurs de charge LED sur le panneau avant, indiquant la capacité en temps réel de chaque canal par différentes couleurs lors de la charge.

      • Entrée 100-240 V 50/60 Hz
      • Consommation électrique DC 14 V-20 V, 1,9 A.
      • Batterie applicable Batterie à montage en V
      • Dimensions 8×140×86mm
      • Poids net 0,85 kg ; Avec colis 1,3kg
