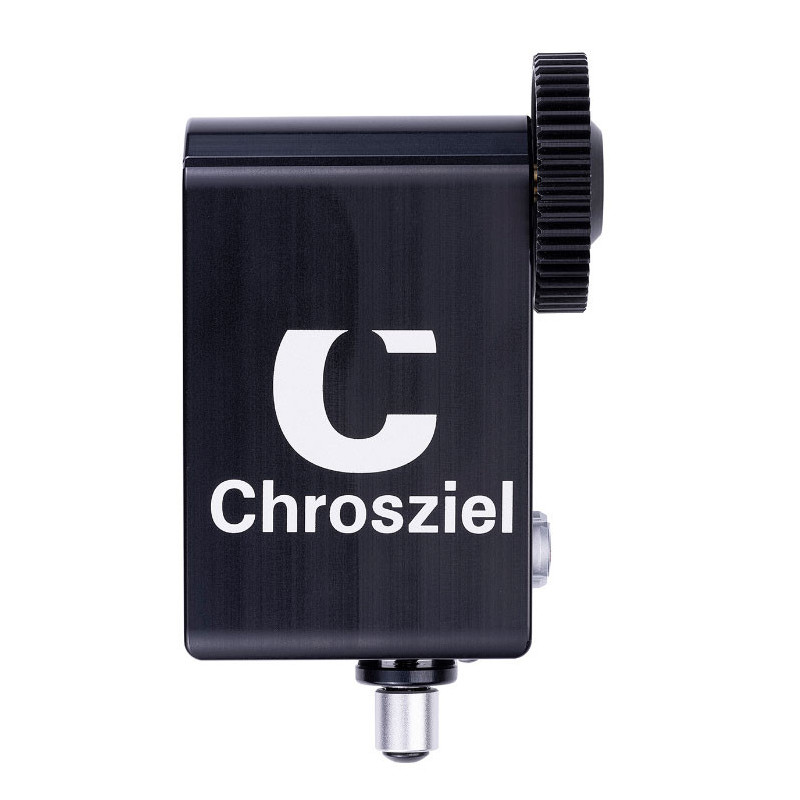

Chrosziel Zoomer Zoom Servo Drive

The Zoomer is a compact and universal zoom motor that can be pivoted to almost any lens by simply mounting it on a 15mm rod. The universal motor unit CDM-UNI-Z2 fits seamlessly into the operating functions of the Sony cameras of the FX9 / FX6 / FS7 / FS5 series. The servo drive is controlled via the zoom rocker on the handle. The motor control can be addressed via Sony's camera-specific protocol and also works independently of the camera signals when a LANC zoom rocker is plugged directly into the servo.

Due to the included Chrosziel Flexi toothed ring (#206-30), the Zoomer can be used with almost any zoom lens even without toothing.

The multi-function handgrip, which in addition to the recording function and a zoom rocker also provide control over the camera menu and other freely selectable functions, are extremely popular on current video cameras with large sensors and are indispensable for effective operation.
The Chrosziel Universal Zoom Servo Drive now allows optimal use of all manual zoom lenses together with the multi-function handgrip. For this purpose, the Zoomer is slid onto a 15mm rod and swiveled onto the zoom lens. Two plug-in cables establish the connection with the camera. One cable is used for the power supply from the camera battery, the second for the connection to the control commands between the handle and the camera.

When using a standard LANC zoom rocker or handle with the Sony PXW-FS5, PXW-FS7 and PXW-FS7II, the servo is connected between the handle and the camera via an input and an output jack to receive all zoom control signals.

For setup with the Sony PXW-FX9 camera, a Y-cable is used that accepts the Sony multi-connector and connects to both the input jack of the Zoomer and the input jack of the camera.
For the Sony ILME-FX6 camera, a Y-cable is used and connects the 3.5mm connector of the Sony handgrip, input jack of the Universal Zoom Servo Drive, and the Sony camera.

FEATURES

Universal zoom motor
Controlled via Sony and LANC handgrip
Camera control signals forwarded
Technical data

Power supply 10-30V (Lemo compatible 0B 5-pin)
2.5mm socket (control command In)
3.5mm socket (control command In&Out)
USB Type min A-B (firmware updates)
Torque 0.5Nm
Power consumption max. approx. 350mAh @ 12V
IN THE BOX

1x CDM-UNI-Z2 Digital motor unit
1x LANC cable
1x LANC extension cable
1x MN-AB-A90 (power supply cable 12 Volt A/B D-Tap - angled 90° rotated 0B 5pin)
1x 206-30 Flexi Gear Ring (diameter 60-120mm)
1x Gear Drive, mod. 0.8 (diameter 40mm)
1x CAB-FX9 for Sony PXW-FX9 compatibility
1x CAB-FX6 for Sony PXW-FX6 compatibility
USB Mini Adapter
