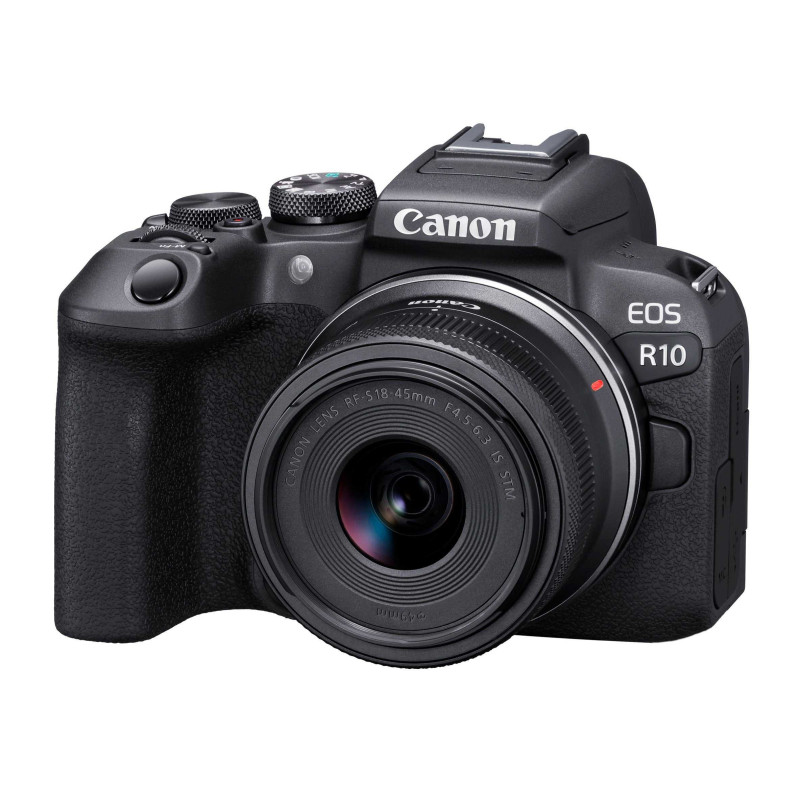

Canon EOS R10 + 18-45 mm F4.5-6.3

EOS R10: Compact and capable, for content creators

Emphasizing portability without sacrificing capabilities, the Canon EOS R10 is a stylish mirrorless camera with a hybrid ethic. Adept in both stills and videos, the R10 integrates an APS-C sensor into the R system, along with high-speed shooting, intelligent AF, and impressive 4K video recording to complete a multimedia workflow.

24.2MP APS-C CMOS sensor and DIGIC X processing

APS-C arrives on the EOS R
Located at a sweet spot in terms of resolution, the 24.2MP APS-C CMOS sensor strikes a great balance of resolution, file size, speed, and low-light performance. This sensor is suitable for general photographic tasks along with 4K UHD recording, as the file sizes are manageable enough to allow for fast continuous shooting and extended video recording.

DIGIC X processor

Borrowed from the R3, the R10 sports a DIGIC X image processor to perform a variety of high-speed tasks, ranging from continuous shooting to high-resolution video recording. In terms of high-speed shooting, the R10 supports continuous shooting up to 23fps with a silent electronic shutter or 15fps with a mechanical shutter, with AF and AE readings before each frame. The processor also helps realize a wide sensitivity range from ISO 100-32000, which is expandable up to ISO 51200 for working in difficult lighting conditions.

UHD 4K video recording
In addition to stills, the R10's sensor also offers high-resolution 8-bit 4K UHD recording, with the ability to record up to 60p using a cropped portion of the sensor or 30p when using an oversampled 6K recording area for better sharpness, reduced moiré and lower noise. Also, for slow motion playback, 120p recording is supported up to Full HD resolution.

HDR-PQ recording is also possible for HDR production in the 10-bit camera and external recording, via the micro-HDMI port, which supports clean 4K output. In addition, unlimited recording times are also possible and the R10 is equipped with an external microphone port and a multi-function holder for broad compatibility with accessories.

Canon 2971C002 Overview

Extending the range of compatible lenses, the Canon EF-EOS R Mount Adapter is a lightweight and compact lens adapter designed to connect any EF or EF-S mount lens to the EOS R mirrorless digital camera. autofocus and image stabilization capabilities and contains no optical components, thus maintaining the original optical quality of the attached lens. It is also resistant to dust and water, which makes it suitable for use in adverse weather conditions.

Canon Specifications 2971C002
Adapter
Camera Mount: Canon RF
Lens mount: Canon EF, Canon EF / EF-S
Physicist
Dimensions: 2.8 x H: 0.9 "/ diameter: 71.2 x H: 24.0 mm
Weight: 3.88oz / 110g
Packaging information
Package Weight: 0.6lbs
Box Dimensions: 5.15 x 4.65 x 3.25 "

Canon R10 specifications

Imaging
Lens mount: Canon RF
Effective sensor resolution: 25.5 Megapixels
Effective: 24.2 Megapixels
Sensor type: 22.3 x 14.9mm CMOS (APS-C).
Harvest factor: 1.6x
Image stabilization: Digital (video only)
Built-in ND Filter: None
Type of capture Photos and videos
Exposure control
Shutter type: Electronic shutter, mechanical focal plane shutter
Shutter speed: Mechanical shutter
from 1/4000 to 30 seconds
Electronic shutter
from 1/4000 to 30 seconds
Bulb / Time mode: Bulb mode
ISO sensitivity Photo:
from 100 to 32,000 in manual, automatic mode (extended: from 100 to 51,200)
Measurement method: Center-weighted, evaluative, partial, spot average
Exposure Modes: Aperture Priority, Manual, Program, Shutter Priority
Exposure compensation: -3 to +3 EV (1/3, 1/2 EV steps)
Measurement range: -2 to 20EV
White balance:
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (white), Shade, Tungsten
Continuous shooting:
Electronic shutter
Up to 23 fps at 24.2 MP for up to 70 frames (JPEG) / 21 frames (Raw)
Mechanical shutter
Up to 15fps at 24.2MP for up to 460 frames (JPEG) / 29 frames (Raw)
Interval Recording: Yes
Self-timer: 2/10 of a second delay
Still image capture
Aspect Ratio: 1: 1, 3: 2, 4: 3, 16: 9
Image file format: C-RAW, HEIF, JPEG, Raw
Internal video capture
Registration method:
H.264 / MP4 4: 2: 0 UHD 8-bit
4K (3840 x 2160) at 23.98p / 25p / 29.97p / 59.94p
Full HD (1920 x 1080) at 23.98p / 25p / 29.97p / 50p / 59.94p / 100p / 119.88p
H.265 / MP4 4: 2: 2 10-bit UHD
4K (3840 x 2160) at 23.98p / 25p / 29.97p / 50p / 59.94p
Full HD (1920 x 1080) at 23.98p / 25p / 29.97p / 50p / 59.94p / 100p / 119.88p
Gamma curve: HDR-PQ
Video system: NTSC / PAL
Built-in Microphone Type: Stereo
Audio Recording: MP4: 2 Channel AAC Audio
External video capture
IP streaming: yes
Interface
Media / Memory Card Slot: Single Slot: SD / SDHC / SDXC (UHS-II)
Video I / O 1 Micro-HDMI output
Audio I / O: 1 1/8 "/ 3.5mm TRS stereo microphone output
Other I / O: 1 USB Type C input / output (USB 2.0).
Wireless: 2.4GHz Wi-Fi Bluetooth (802.11b / g).
Global positioning (GPS, GLONASS, etc.): None
Monitor
Measure: 3.0 "
Resolution: 1,040,000 dots
Display Type: Free angle tilting touchscreen LCD
Viewfinder
Type: Built-in electronics (OLED)
Resolution: 2,360,000 dots
Eye point: 22mm
Coverage: 100%
Magnification: approx. 0.95x
Diopter adjustment: -3 to +1
Focus
Focus type: Auto and manual focus
Focus Modes: Continuous AF, Manual Focus, Single AF
Autofocus points:
Phase detection photo, video: 651
Autofocus sensitivity: -4 to +20 EV
Rapid
Built-in Flash: Yes
Guide Number: 19.7 '/ 6m at ISO 100
Maximum synchronization speed: 1/250 of a second
Flash compensation: -3 to +3 EV (1/3, 1/2 EV steps)
Dedicated Flash System: eTTL
External flash connection: Hot shoe
Environmental
operating temperature: 32 to 104 ° F / 0 to 40 ° C
Operating humidity: 0 to 85%
General
Battery Type: 1 x Rechargeable Li-ion LP-E17
Tripod mounting thread: 1 x 1/4 "-20 female (bottom)
Size: 4.8 x 3.5 x 3.3 "/ 122.5 x 87.8 x 83.4mm
Weight:
13.5 oz / 382.2 g (body only)
15.1 oz / 429.2 g (body with battery and memory)


Canon RF-S 18-45mm F / 4.5-6.3 IS STM specifications

Focal length: 18 to 45mm (35mm equivalent focal length: 29 to 72mm)
Maximum aperture: f / 4.5 to 6.3
Minimum aperture: f / 32
Lens mount: Canon RF
Lens format coverage: APS-C
Viewpoint: 74 ° 20 'to 33 ° 40'
Minimum focusing distance: 7.9 "/ 20cm
Maximum magnification: 0.16x
Optical design: 7 elements in 7 groups
Aperture blades: 7, rounded
Focus type: Auto focus
Image stabilization: yes
Filter size: 49mm (front)
Size: 2.7 x 1.7 "/ 68.9 x 44.3mm
The weight: 4.6 ounces / 130g
