PBS Distributeur HDMI 4K 1x8

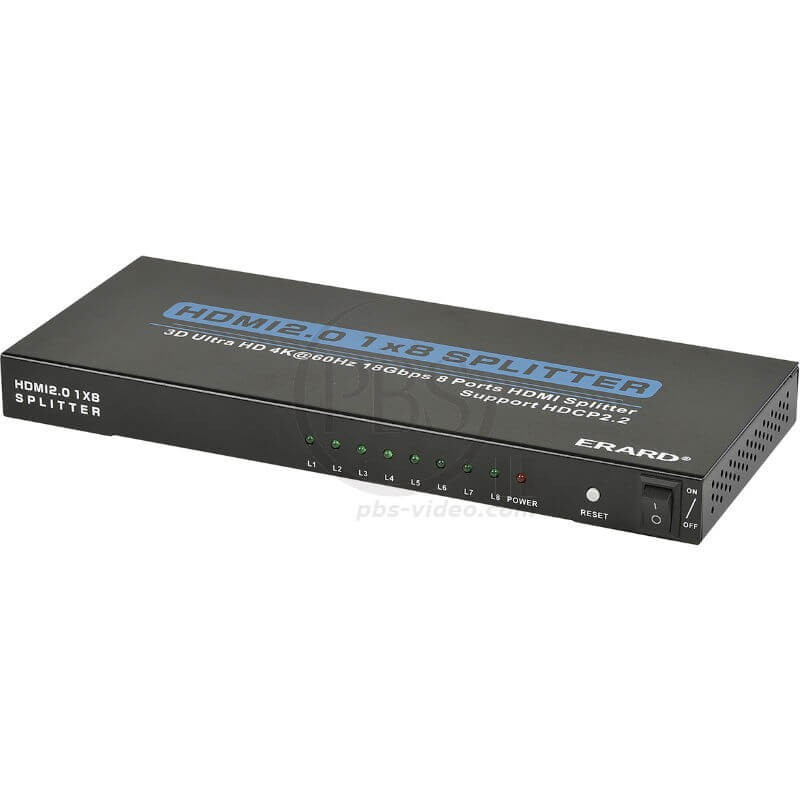

Distributeur HDMI 4K 1x8

This 1 by 8 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to eight HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

Features

• Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
• Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;
• Support 3D frame sequential video format up to 1080p@60;
• Support high resolution VESA mode video format up to QSXGA@60Hz;
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;
• Supports smart EDID control;

Specifications

• Video Bandwidth: 600MHz/18Gbps
• Input Ports: 1 × HDMI (Female type)
• Output Ports: 8 × HDMI (Female type),
• Output Resolution: 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
• ESD Protection: Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
• Power Supply: 12V/2.5A DC (US/EU standards, CE/FCC/UL certified)
• Dimensions: 105 mm (W) × 245 mm (D) × 16 mm (H)
• Weight: 630g
• Chassis Material: Metal
• Operating Temperature: 0 °C~40 °C/ 32 °F~104 °F
• Storage Temperature: −20 °C ~ 60 °C/−4 °F ~140 °F
• Relative Humidity: 20~90 % RH (non-condensing)
• Power Consumption (Max): 30W
