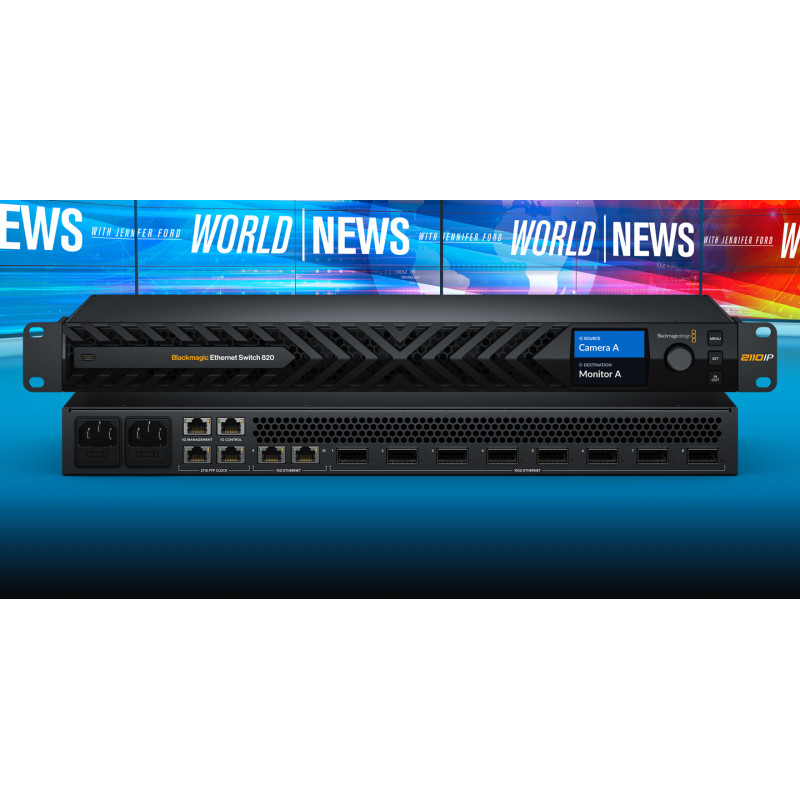

Blackmagic SMPTE 2110 820 Ethernet Switch for Video, 8 Ports of 100G Ethernet, 2 Ports of 10G Ethernet

Designed for advanced broadcast systems, it offers extremely high performance and low latency, with all connections on the back to keep cables neat, secure, and out of sight.
It features 8 100G Ethernet connections and 2 10G Ethernet connections, as well as simple SMPTE-2110 routing on the front panel.
It includes professional front-to-back cooling that is extremely quiet.
For advanced broadcast systems, it features two redundant Ethernet connections with PTP clocks, a separate NMOS control port, and a dedicated management port.

Designed by Broadcast Experts
Blackmagic Ethernet Switch models are designed specifically for the television industry.
Just like broadcast products, all connections are on the back to keep cabling neat and tidy.
The two models have very different designs. The Blackmagic Ethernet Switch 360P features a traditional front panel design.
The Blackmagic Ethernet Switch 820 features a higher performance design with professional front-to-back cooling, 6 fans for redundancy, dual backup power supplies, and simple routing controls.
This quiet design is essential when working close to equipment, such as in OB trucks and mini racks!

Management Ethernet
The dedicated management port enables the use of the Blackmagic Ethernet Switch Utility for status monitoring and software updates.
Being isolated from the control, video, and audio networks, this port won't interfere with operation.
Download the free Blackmagic Ethernet Switch Utility for Mac or Windows.

NMOS Control
The dedicated NMOS control port keeps management traffic separate from video and audio data.
NMOS control automatically detects and registers new SMPTE-2110 devices on your network, making them immediately available for routing without any manual configuration or specialized IT knowledge!

2 Redundant PTP Ports
Includes 2 PTP clock Ethernet ports for accurate SMPTE-2110 time synchronization and redundancy.
If one connection is lost, the second port maintains the time reference signal without interruption.
You can also connect two separate grandmaster clocks for increased reliability in the event of device failures or cable problems.

2 10G Ethernet Ports
Includes 2 separate 10G Ethernet ports, making it easy to connect computers, as 10G is less expensive and more widely available than 100G.
You can also connect equipment like the HyperDeck Extreme 8K, which can record 4 channels of video simultaneously over a single 10G Ethernet connection.

8 Ports of 100G Ethernet
The most powerful model includes 8 separate 100G Ethernet connections using QSFP sockets to connect the HyperDeck ISO Recorder 100G data ports to Blackmagic Cloud Store Ultra.
You can also use them in SMPTE-2110 networks with ATEM Constellation IP switchers, HyperDeck ISO Recorder 100G and more!

Connections
100G Ethernet Ports: 8 x 100G QSFP28
10G Ethernet Ports: 2 x 10G RJ45
Control Network: 1 x 1G RJ45 for NMOS control
Management Network: 1 x 1G RJ45 for configuration and firmware updates
Reference Network: 2 x RJ45 Ethernet for PTP 2110 clock
Performance: 2 x IEC C14 inputs

Display
Front display: Integrated 2.2-inch LCD for monitoring video, audio, video standard, and timecode, and for using the settings menu. Rotary knob to scroll through available inputs and monitor on the front screen
2110 IP Monitor Out Sender: Displays the custom Ethernet Switch name, connection speed, and real-time data rate graph for each port
2110 IP Monitor Out Standards: 1080p50, 1080p59.94, 1080p60

Control
Integrated Control Panel: 2.2-inch color display, 3 control buttons, and rotary knob to configure sources and destinations and use the settings menu

Power Requirements
Power Supply: 2 x internal 100-240V AC 50/60Hz power sources
Power Input: 2 x IEC C14 sockets

Environmental
Operating Temperature: 5° to 40° C
Storage Temperature: 20° to 45° C
Humidity relative: 0% to 90% non-condensing
