Atomos 7" 4K Monitor, 1920 x 1200 Resolution (1920 x 1080 Image Display), 3000 Nits - ATOMSHG701

The versatile, 7-inch workhorse that enables you to monitor, record, and switch all in the one device.
It's the perfect tool for live production, multi-camera shoots, and in-the-field event coverage.

7-inch HDR pro / cinema monitor-recorder-switcher
Designed for professionals that push boundaries with the quality of their videos, this 7-inch monitor-recorder-switcher enhances the image captured by any HDMI or SDI camera to new levels.
With 1,000,000:1 contrast ratio and peak brightness of 3000nits, Shogun Classic is the ultimate all-rounder production tool.
Shogun Classic gives you the high production values of 4K HDR, and complete control of every aspect of your production, on-set and in post.
Meticulously monitor every pixel of SDR or HDR as it's captured and view it in glorious 10-bit HDR.

- 3000nit HDR screen: Zone backlight provides exceptional detail, color, and contrast.
- High performance HDR: Preview your images in glorious 10-bit HDR
- 4x ISO recording: For individual input control and post-production flexibility
- Real-time 4K recording: In ProRes, Cinema DNG, and Avid DNx formats
- 4x SDI input: For seamless transitions between live video streams
- XLR audio: 2-channel XLR Input and output

Perfect exposure and color
A high-quality viewing experience gives you complete confidence to make educated on-set decisions.
With Shogun Classic's dynamic zoned backlight, blacks are deeper, whites are brighter, and the details of highlights are crystal clear.
Shogun Classic gives you the control to maximise HDR exposure, while feeling comfortable with SDR finishing in post.
Simple monitoring tools put every detail of the image within your control.
From custom 3D LUTs, false color profiles, adjustable focus peaking and movable 1:1 and 2:1 pixel magnification.
In addition, RGB parade and vectorscopes ensure perfect colors on your calibrated monitor.

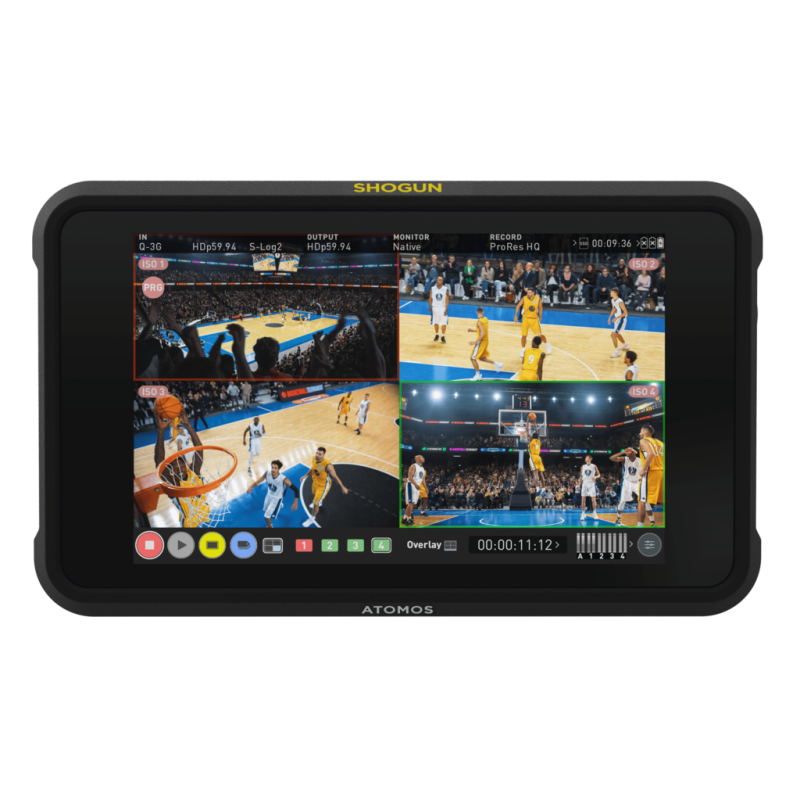

Multi-camera touchscreen switching
Take full advantage of 4 x SDI inputs and let Shogun Classic step into the role of a portable, quadview live switcher and recorder on your multi-camera shoots.
Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen.
Shogun Classic can also record a fifth ?program' channel of your switched feed.
Display the resulting mixed output (via HDMI or SDI) live on set.
You can even output the switched feed for live streaming. Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras.

At home on practically any camera
Use with your DSLR or mirrorless camera via HDMI to get up to 4Kp60 Apple ProRes and AVID DNx codecs for easy editing and archival quality.
Add it to a high-end ARRI, RED or Sony Venice and you'll get accurate HDR monitoring and all the tools you need to get your job done.

HDR monitoring for clients and creatives
With Shogun Classic you can view what you've captured before filming has even wrapped.
Deliver content via live HDMI out, in real-time, from any HDR camera to a compatible HDR TV or monitor.
Shogun Classic ensures you see an accurate representation of your video at maximum brightness and color detail.
Use this accurate reference to adjust exposure and lighting accurately for modern TVs.
This not only gives the crew more confidence in what they're capturing, but also speeds up the finishing process.

Construction
____________________
Body: Glass fiber reinforced polycarbonate
Cooling: Heat Sink + Actively controlled Fan
Touch Screen: Capacitive Touch

Power
____________________
Input Voltage: 6.2V to 16.8V
Compatible Batteries: 2x NP-F / L-Series batteries and supporting accessories
DC in Connector: 1 x DC in (6.2 - 16.8V)

Display
____________________
Display Panel: IPS panel (capacitive touch)
Size: 7.2"
Resolution: 1920 x 1200 (1920 x 1080 Image Display)
PPI: 325
Bit Depth: 10-Bit (8+2 FRC)
Backlight Type: Zone Backlight (Full-Array Local Dimming)
Brightness (cd/m² / nits): 3000nit (+/- 10%)
Aspect ratio: 16:10 native resolution 1920 x 1200
Color Gamut: Up to Wide color gamut (105% DCI-P3)
Calibration Support: ATOMOS Calibrator with Display Pro HL and Display Plus HL

Color Pipeline
____________________
Gamma: Sony SLog/SLog2/SLog3, Canon CLog/CLog2/CLog3, ARRI Log CEI160/Log CEI200/Log CEI250/Log CEI320/Log CEI400/Log CEI500/Log CEI640/Log CEI800/Log CEI1000/Log CEI1280/Log CEI1600, Panasonic Vlog, JVC JLog1, RED Log3G10/RED LogFilm, FujiFilm F-log, Nikon N-Log, PQ10k, HLG
Gamut: Sony SGamut/SGamut3/SGamut3.cine, Canon Cinema/DCI P3/DCI P3+, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709/BT.2020, JVC, RED WideGamut/RED DragonColor/DragonColor2/RED Color2/RED Color3/RED Color4
3D LUT Display: 3D LUT (.cube format)
Monitoring Modes: Native / 709 / HLG / PQ / 3D LUT
HDR Output Conversion: Camera Log to HLG / PQ

Color Management
____________________
Calibration: ATOMOS Calibrator with Display Pro HL and Display Plus HL
AtomHDR: Yes
3D LUTs: Yes
Legalize: Full to Legal Range Conversion available via Input Menu

Video Input
____________________
HDMI: HDMI 1 x HDMI (2.0)
SDI: Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2 x 12G Single Link SDI
Bit Depth: 8/10-Bit for Video
Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
HDR: HDMI Auto Detection

Video Output
____________________
HDMI: 1x HDMI (2.0)
SDI Loop / Play Out: Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2 x 12G Single Link SDI
HDR: Yes with auto detection

Video Signal Conversion
____________________
HDMI to SDI: Supported
SDI to HDMI: Supported

Audio In/Out
____________________
Audio Quality: 24-Bit / 48kHz
Audio Codec: PCM
HDMI: 2 or 8ch 24-Bit, Input dependent
SDI: 12ch 48kHz 24-Bit
Analog Audio In: Via optional 2 in 2 out XLR cable
Analogue Audio Out / Headphone Jack: 3.5mm Jack
Audio Input Delay: Frame Delay on Analog Input (applied to recorded files)

Remote Control
____________________
HDMI: Auto HDMI Trigger Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard
SDI: SDI trigger camera selectable
Serial 2.5mm Jack: Start & Stop Recording via compatible LANC Remotes

Physical
____________________
Mounting Points: 1/4"-20 screw mount. 1x top and 1x bottom
Dimensions (W x H x D mm): 214mm x 127mm x 45mm / 8.43" x 5.00" x 1.77"
Weight: 738g / 26oz
