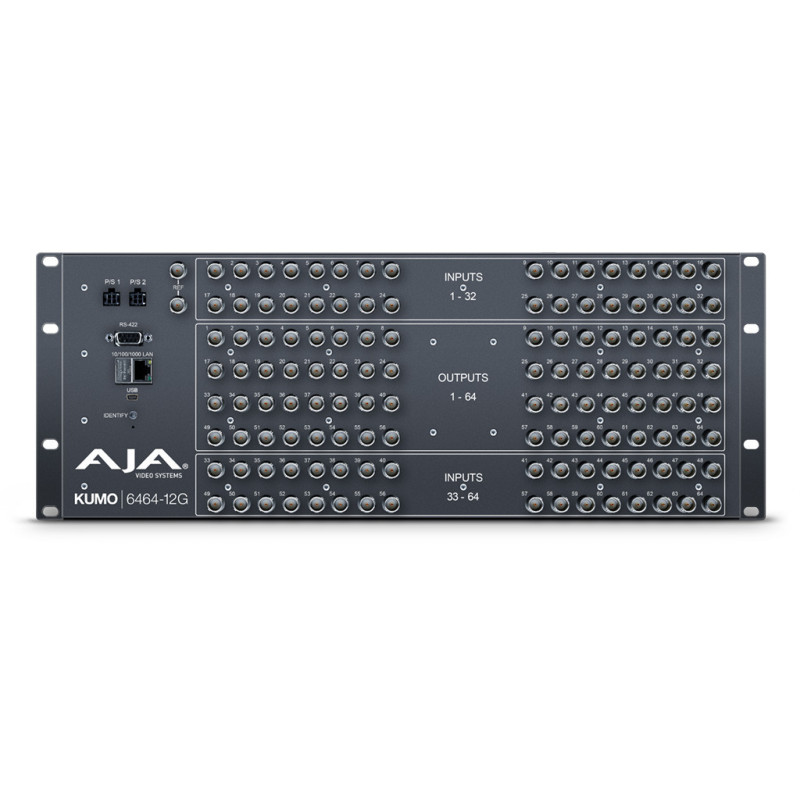

Providing unparalleled routing capabilities across broadcast, production, post-production, and proAV environments, AJA's new KUMO 6464-12G boasts 64x 12G-SDI inputs and 64x 12G-SDI outputs. The compact, 4RU unit delivers exceptional scalability, workflow security, and bandwidth, guaranteeing seamless routing of uncompressed, compressed, or Raw 4K signals. AJA redesigned the all-new KUMO 6464-12G to ensure maximum quality, reliability, and performance, and it's available now!

Highlights:
• Single cable support for 4K/UltraHD 12G-SDI routing in a compact 4RU profile.
• 64x 12G-BNC inputs and 64x 12G-BNC outputs.
• 8K (Quad-12G), 4K, UHD, 2K, HD, and SD resolution support.
• Compatible with and exceeds SMPTE specifications.
• Facilitates Quad Link, Dual Link, 4K/UltraHD and 8K/UltraHD2 with multiport SDI switching for two or four sources at once.
• Up to 8 salvos can be configured and saved in each KUMO router.
• Capability to configure, save, export, and import up to 20 presets in each KUMO router.
• Embedded web server for remote control on a standard web-browser.
• Support for up to 32 AJA KUMO CP and CP2 control panels, direct connect or networked via ethernet.
• 1x RS-422 DB9 with support for Grass Valley Native Protocol.
• USB port for easy initial network setup.
• Auto reclocking SDI rates: 270/1.483 Gbps/1.485 Gbps/2.967 Gbps/2.970 Gbps/5.934 Gbps/5.940 Gbps/11.868 Gbps/11.880 Gbps.
• Format agnostic, 270 Mbps - 12 Gbps.
• Passes all SDI embedded ancillary data including audio and HDR signaling.
• Support for 270Mb DVB ASI.
• Reference Input: analog color black (1V) or composite sync (2V or 4V) looping, non-terminating.
• 10/100/1000 Ethernet (RJ-45), REST API.
• Fanless design, completely silent operation.
• Redundant power supply option.
• Five-year warranty and AJA's world-class support.
