DPA 6060 CORE Omni Submini Mic, Normal SPL, Beige, 3 pin LEMO

- For Video/Film/TV, Broadcast & Theater
- Omnidirectional for Consistent Levels
- For Lectrosonics Transmitters with LEMO
- Tiny 3mm Size Is Easy to Conceal
- Handles Speech/Vocals up to 134 dB SPL
- IP58-Certified Dust & Moisture Resistant
- CORE Increases Dynamics & Reduces Noise
- Requires 5 to 10V or Phantom Power
- Includes Soft-Boost Grid

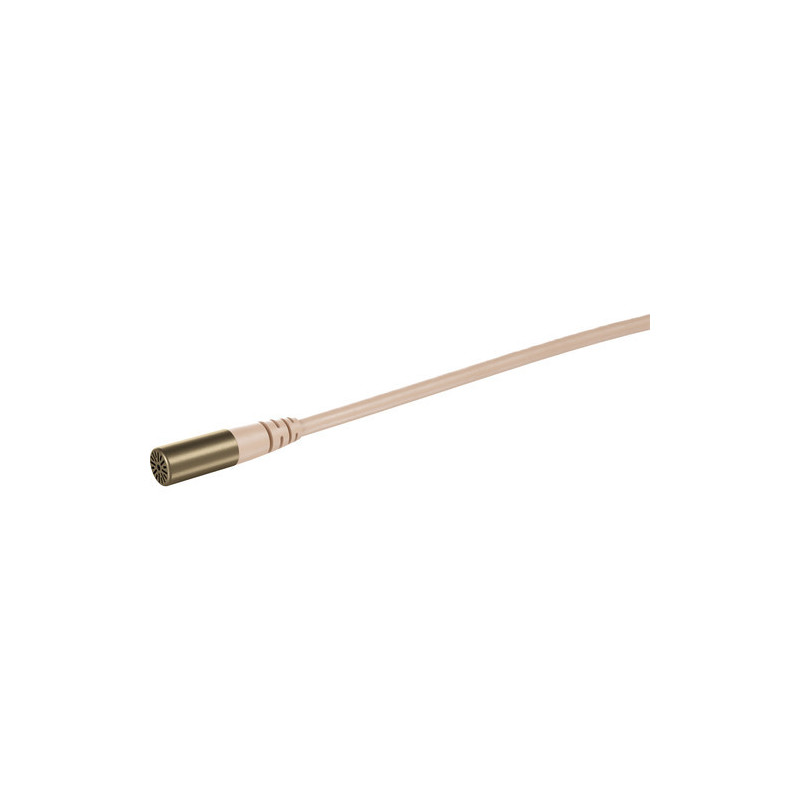

The beige DPA 6060 CORE is a subminiature, moisture-resistant lavalier microphone designed for use with wireless systems for broadcast, performance, and theatrical applications.
The tiny, 3mm electret-condenser capsule delivers crisp, clear, and intelligible speech, while being easy to hide in clothing or costumes, making the mic well suited to the demands of professional presentations, theater, and live stage work as well as TV, film, and video productions.

Microphone
Compatible Transmitters:
- Lectrosonics: SSM
- Sennheiser: SK
Polar Pattern: Omnidirectional
Included Tone/Pattern Caps: Soft-Boost Grid

Performance
Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 134 dB
Sensitivity: 20 mV/Pa
Dynamic Range: 102 dB (A-Weighted)
Equivalent Noise Level: 24 dB (A-Weighted)

Connectivity
Analog Output: 1x Microdot Male
Cable Length: 5.9' / 1.8 m
Cable Diameter: 0.12" / 3.05 mm

Power
Power Sources: Plug-In Power
Operating Voltage: 5 to 10 V

Physical
Color: Beige
Environmental Resistance: Dust/Water-Resistant to 3.28' / 1 m (IP58)
Dimensions: Ø: 0.13H: 0.57" / Ø: 3.4H: 14.4 mm
Weight: 0.29 oz / 8.22 g
