Hollyland Solidcom M1 Base Station for DECT Intercom System (1.9 GHz)

For Small- to Mid-Sized Events
Hub Base Only without Beltpacks/Headsets
Use with up to 8 Beltpack Receivers
Built-In Panel Antenna with 1300' Range
Reliable DECT 6.0 Wireless Technology
XLR and RJ45 In/Out Ports
PoE or Dual NP-F Batteries
3 Groups Maximum
Cascade Additional HUBs to Expand System

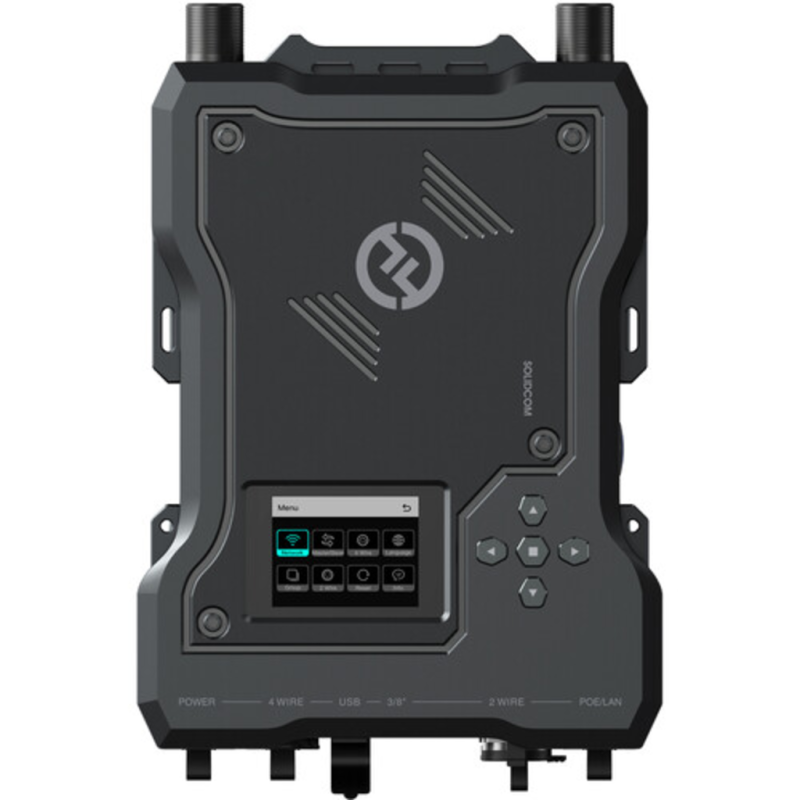

Expand your intercom system's capabilities with the Hollyland Solidcom M1 Base Station. The M1 system allows you to cascade an unlimited number of hubs together, each able to link with up to 8 beltpack receivers (available separately) for wireless coordination and communication among production and event teams. The Base Station hub uses reliable DECT 6.0 transmission technology and features a built-in panel antenna that delivers a 1300' front-facing range and a 160' rear-facing range. In addition, you can add two external FRP antennas (available separately) to transmit over a 360° radius with a range of 985'?making the M1 well suited for electronic field productions and for coordinating a variety of small- to mid-sized events with up to about 1000 people in concert venues, houses of worship, exhibitions, and more.

The base station hub offers three groups that are easy to create and manage from the unit itself using the easy-to-read display and button interface or remotely using a web server or the Solidcom App. Cascade several hubs together via the RJ45 ports, which also supply power over Ethernet (PoE). The base station can also be powered via two NP-F batteries, replacing the batteries one at a time ensures continuous, uninterrupted operation.
Integrated Panel Antenna
With up to 1300' one-way transmission range from the front and an extra 160' range at the back, the built-in panel antenna is perfect for one-way communication in unobstructed venues, such as church events and performances.
External FRP Antennas (Available Separately)
Add a pair of separately available external FRP antennas for reliable transmission in 360° radius range of around 985', ideal for large-scale events including sports events, exhibitions, and concerts.
Intuitive Grouping
Setting up groups with the Solidcom M1 system is an intuitive experience. It's as easy as selecting the numbers of specific beltpacks and making them a group. Either through the base station, Solidcom APP, or webpage, a group can be created and managed in seconds. The system supports up to 3 groups so you can flexibly allocate the beltpacks to team members such as lighting crew, camera crew, and PAs for example.
Flexible Powering & Expandability
Power is supplied from a pair of NP-F batteries or via PoE through the RJ45 port. Link up to 8 remote headsets (available separately) to each base station hub. Cascade an unlimited number of hubs together via the RJ45 ports to create a larger com system as your needs grow.

Users per System
8
Wireless Connectivity
Wireless Technology
Digital DECT (1.9 GHz)
Operating Range
1476.4' / 450 m
Wireless Modulation
GFSK
Approximate RF Sensitivity
-93 dBm
Encryption
No
Mobile App Compatible
No
Base Station
Inputs/Outputs
1x RJ45 (Audio) Input/Output
Antenna
Base Station:
1x External, Fixed
Battery
Battery Type
Base Station:
2 x NP-F
Runtime
Not Specified by Manufacturer
Environmental
Operating Temperature
32 to 113°F / 0 to 45°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Physical
Environmental Protection
No
Dimensions
10.1 x 7.1 x 1.9" / 255.5 x 180.4 x 48.5 mm
Weight
3.4 lb / 1560 g
Packaging Info
Package Weight
4.16 lb
Box Dimensions (LxWxH)
13.1 x 9.2 x 2.9"
