Portable Wireless Tally System 8 Tally Lights up to 790 meters away

Up to 16 Channels Supported
Smart Sequence Learning
Adaptive Frequency Hopping
Detachable Battery with 8-Hour Runtime
DB25, RJ45 & USB-C Connectivity
Tally Light & Battery Weigh Only 3.5 oz
Hard Shell Case Included

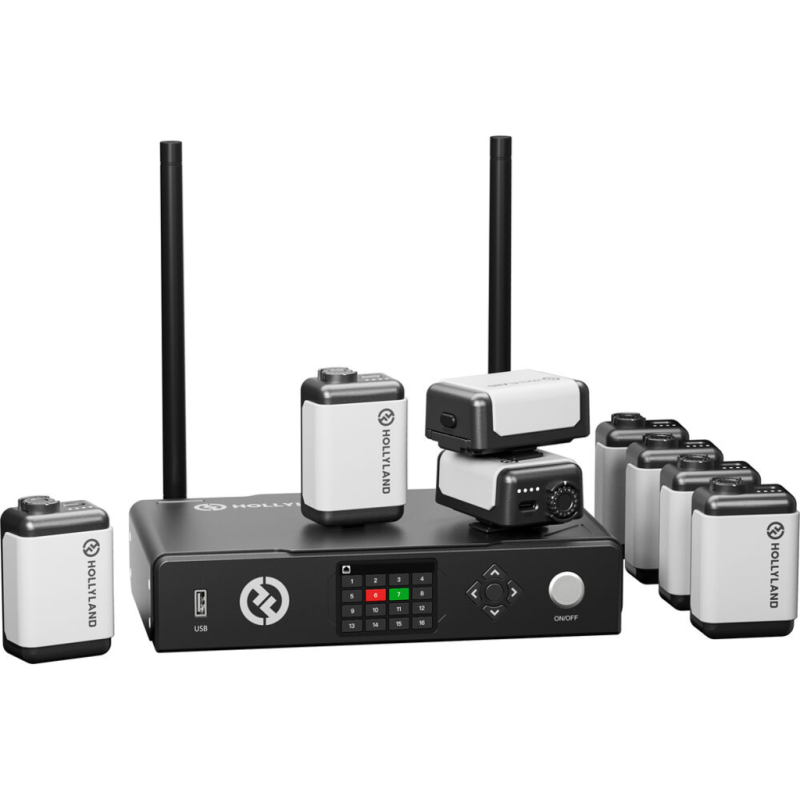

This Wireless Tally System from Hollyland is a portable, complete tally solution that includes four tally lights that can be connected up to 790 meter (2600') away from the wireless host unit. Equipped with multiple ports that provide DB25, RJ45, and USB-C connectivity for compatibility with a wide range of switchers, the system boasts a powerful smart sequence learning function, adaptive frequency hopping, and support for up to 16 channels for future expansion of the system.

The sequence learning function of the system enables users to easily connect any switcher operating with high or low voltage levels to the system, employing a standard tally cable for wide switcher compatibility. Frequency hopping facilitates the detection of interference, enabling the system to automatically hop to a channel with less interference for a more stable and reliable transmission. A detachable lithium-ion battery pack included with each tally light provides up to eight hours of uninterrupted operation, and a hard-shell case is included for easy transport and storage.


Hollyland Tally Station

This Hollyland Tally Station boasts a transmission range of up to 790 meters (2600') and a transmission delay of <150 ms. Two Wireless Tally System antennas come with the unit, as well as a USB-A to USB-C cable and a DC power adapter with respective cord.
UPC: 191460005756

Hollyland Tally Light
This Tally Light is designed for use with the Hollyland Wireless Tally System. It boasts switchable 3-level brightness, a transmission range of up to 790 meters (2600'), and a transmission delay of <150 ms. It comes with a lithium-ion battery pack and a set of number stickers you can use to easily identify multiple units when using multiple devices.
UPC: 191460005763

Hard-Shell Case for Wireless Tally System
Protect, store, and transport your Wireless Tally System with this Hard-Shell Case. The compact black case fits all the included parts and accessories of the complete tally system.
UPC: 191460005886

Hollyland Antenna for Wireless Tally System (Pair)
Add a pair of replacement antennas to your portable production kit with this Antenna for Wireless Tally System from Hollyland. The antennas boast a 4 dBi gain and weigh only 4.1 oz.
UPC: 191460005770

Hollyland 12V 2A DC 2.1mm Power Adapter
Power your Wireless Tally System with this 12V 2A DC 2.1mm Power Adapter from Hollyland. The 12 VDC adapter connects to your tally system via a 2.1mm barrel connector.


In the Box

Hollyland Tally Station
DC Power Adapter with Power Cord
2 x Wireless Tally System Antenna
USB-A to USB-C Cable

8x Tally Light
8x Lithium-Ion Battery Pack 700
Set of Number Stickers

Hollyland Hard-Shell Case for Wireless Tally System
Hollyland Antenna for Wireless Tally System (Pair)
Hollyland 12V 2A DC 2.1mm Power Adapter
8-Slot Battery Charger

Hollyland Tally Station
General
Compatibility: Hollyland Wireless Tally System
Max Transmission Distance: 2600' / 800 m
Sensitivity: <-115 dBm
Delay: <150 ms
Display Touchscreen : No
Wireless : 2.4 GHz Radio/RF

Inputs / Outputs
USB I/O:
- 1 x USB-A Female Input/Output
- 1 x USB-C Female Input/Output
Other I/O:
- 1 x RJ45 Port for Tally Input
- 1 x RJ45 Port for Switcher Loop Out
- 1 x DB25 Port for Tally Input
- 2 x Antenna Connector

Power
Power Source: AC Adapter with Power Brick (Included)

Environmental
Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: 14 to 140°F / -10 to 60°C

Physical
Color: Black
Dimensions: 9.2 x 5.6 x 2" / 232.8 x 142.5 x 50.1 mm
Weight: 2.6 lb / 1.2 kg

Hollyland Tally Light
General
Compatibility: Hollyland Wireless Tally System
Max Transmission Distance: 2,600' / 800 m
Sensitivity: <-115 dBm
Delay: <150 ms
Modulation: LORA
Wireless: 2.4 GHz Radio/RF

Power
Battery Chemistry: Lithium-Ion
Maximum Battery Life: 8 Hours

Environmental
Operating Temperature: 32 to 113°F / 0 to 45°C
Storage Temperature: 14 to 140°F / -10 to 60°C

Physical
Dimensions: 3.1 x 2 x 1.5" / 77.8 x 50.5 x 37.4 mm
Weight: 3.5 oz / 98.5 g (with Battery)

Hollyland Hard-Shell Case for Wireless Tally System
General
Compatibility: Hollyland Wireless Tally System
Color: Black
Dimensions: 20.3 x 13.8 x 8.5" / 515 x 350 x 215 mm

Hollyland Antenna for Wireless Tally System (Pair)
General
Compatibility: Hollyland Wireless Tally System
Gain: 4 dBi
Color: Black
Dimensions: 10.4 x 3.9 x 1" / 265 x 100 x 25 mm
Weight: 4.1 oz / 115 g

Power
Hollyland 12V 2A DC 2.1mm Power Adapter
Power Source: AC Adapter with Power Brick
Power I/O: 1x Barrel Output
DC Input Power: 12 VDC at 2 A
Color: Black
Dimensions: 8.5 x 5.2 x 0" / 215 x 132 x 0.1 mm
Weight: 5.29 oz / 150 g
