MatteBox 450R2, with Double-Rotating-Filter Stage, incl. mask 16:9, french flag (450-11), pivot mechanism for optional side wings, rotatable filterholders 4x4 (402-12) and multiformat4x4/4x5.650 (410-04), rod clamping diameter15mm rods, cover end plate diameter114/110mm

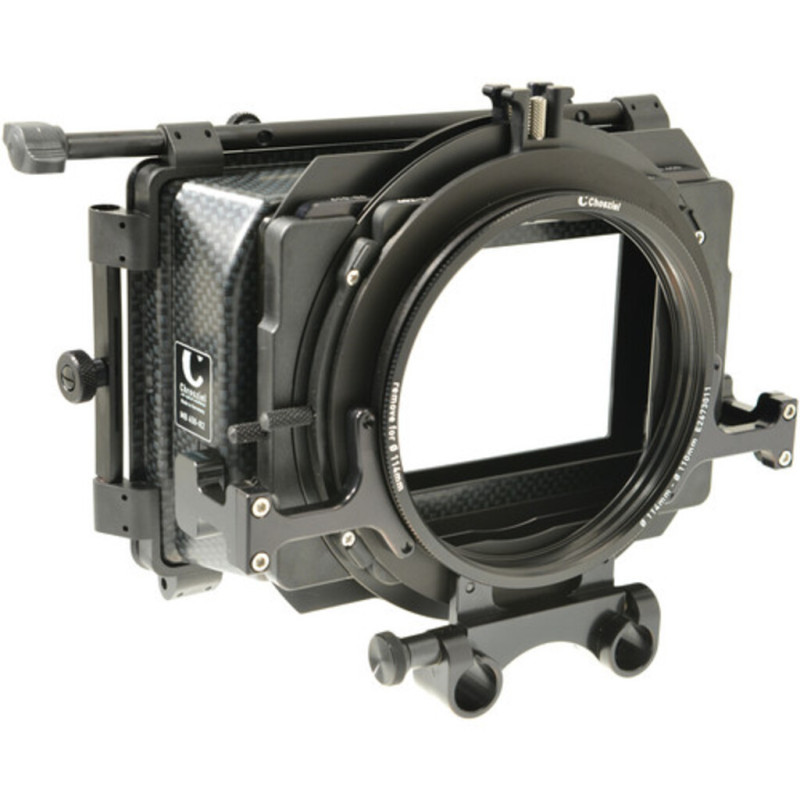

The Chrosziel 450-R20 Mattebox with 15mm Center Bracket is a professional 16:9/4:3 mattebox designed for camcorders with focal lengths as wide as 18.5mm. The unit comes equipped with two rotating filterstages, capable of holding 4x4 and 4x5.65 square filters and a french flag. With its outstanding strength and durability, Chrosziel provides exceptional quality which operators have come to trust. This model comes equipped with a 15mm bracket designed to attach to 15mm mini rod support systems.

Wide Coverage
The basic unit features a 16:9/4:3 wide angle housing for compatibility with prime lenses as wide as 18.5mm (35mm Academy) without vignetting.

Filterstages
The unit comes with a filterstage for two independently rotating filter holders, 4x5.65/4x4 and 4x4. The smart design provides ample room for the easy manipulation of filters such as vertical grads to any desired position.

Mounting Options
For a secure mount, the mattebox comes with a center bracket for use with 15mm lightweight support rods. A one-sided quick-lock mechanism anchors the mattebox system to the 15mm lightweight support with a simple twist of a knob.

Manipulation of Light
The standard articulating french flag protects against flair and loss of contrast. The french flag can be teamed with optional side wings for precise manipulation of light.

Faster Lens Changes
Chrosziel makes faster lens changes possible with the use of the optional Chrosziel swing-away bracket. The swing-away bracket replaces the existing 15mm lightweight support bracket and attaches to the back of the mattebox housing. Once installed, it can be used to smoothly and quickly move the mattebox away from the camera lens. This is an invaluable feature on shoots requiring multiple lens changes.

Specifications

Lens Fit and Mount Maximum Wide Angle
35mm: 18.5mm
2/3": 8.2mm
1/3": 4.1mm

Rear Plate
110mm


Type 16:9/4:3
Filter Type 4x5.65, 4x4
Total Filter Stages 2
Rotating Stages 2
