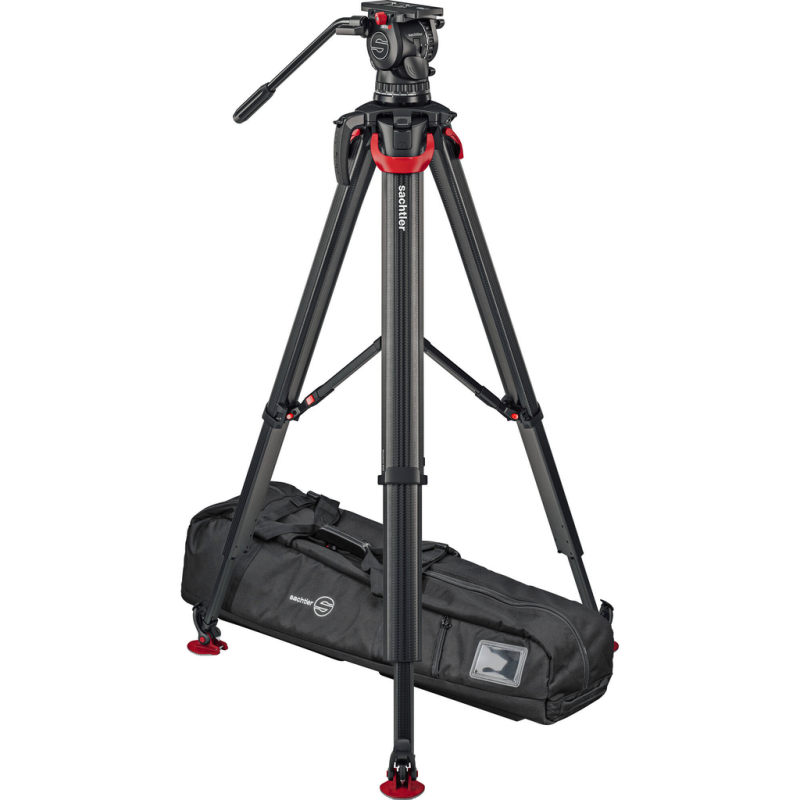

Sachtler System aktiv10T & flowtech 100 with Mid-Level Spreader - Black

For fast setup, breakdown, adjustment, and swapping the head from sticks to a slider or other platform, the Sachtler System aktiv10T & flowtech 100 with Mid-Level Spreader provides you with an aktiv10T fluid head with Touch & Go plate, a set of flowtech 100 legs, a mid-level spreader, an attachment point, a carry handle, and a padded bag for carrying your tripod system. The aktiv10T head combines with the flowtech 100 legs to help you create smooth pans and tilts with cameras up to 35.3 lb, with a stable platform for close to the ground low-angle to fully extended high-angle shots.
The attachment point allows you to mount accessories on the legs, while the padded bag keeps your gear together and protected during transport and storage.

° Sachtler aktiv10T Touch & Go Fluid Head with SpeedLevel & 7-Step Drag (100mm)
Enjoy creating smooth pans and tilts while being able to quickly move your video head from tripod to tripod with the Sachtler aktiv10T Touch & Go Fluid Head with SpeedLevel & 7-Step Drag.
Take advantage of the innovative SpeedLevel technology to provide almost instant mounting and leveling of your camera rig on almost any Sachtler 100mm bowl tripod.
The clamp and stud SpeedLevel system saves precious time leveling your camera rig by eliminating the need to screw on a tie-down knob. Designed for larger DSLRs, mirrorless, and digital cine-style cameras, the aktiv10T supports rigs weighing 0 to 26.5 lb.
This fluid head features 15 steps of counterbalance and seven steps of pan and tilt drag adjustment, plus zero settings for both balance and drag.

The SpeedLevel technology replaces the traditional head screw and tie-down design with a strong clamp built into the head bowl and a stud component that clamps onto your tripod bowl or other mounting platforms, such as a slider.
Simply grasp the large lever on the head and pull it up to release the clamp, then press it down to lock your head in place.
Partially lifting the lever allows you to quickly and easily level the head.
The integrated PrismBubble level system is pressed once to illuminate the bubble level or twice to light up both the bubble level and the drag settings, a boon when working in darker environments.
The bubble level also has a built-in prism, enabling you to easily level the head when the legs are set at a maximum height or an awkward angle.

Compatibility
The aktiv10T fluid head is compatible with all Sachtler 100mm bowl base tripod legs, except for the HotPod

° Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet
The lightweight Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader offers notable stability and quick setup and adjustments for payloads up to 66 lb.
The novel flowtech design features quick release locks at the top of the legs, eliminating the need to stoop while adjusting the tripod height.
All three legs can be deployed simultaneously to quickly find their individual levels on uneven ground.

The flowtech 100's versatile leg hinges adjust freely or can be locked at 20, 46, and 72° angles, providing a height range from 10" to 5' and reducing the need to carry a set of baby legs. Additional ergonomic features include a flatter leg design that's more comfortable when carrying on your shoulder, and magnetic locks that neatly snap the legs together for travel.
Three handy 3/8"-16 threaded mounts can be used to attach a variety of accessories.

Weighing only nine pounds with its spreader and feet, the flowtech 100 can support a payload of up to 66 pounds and extends from a minimum height of 20" to a maximum height of 61" when using the included mid-level spreader.
Each leg features a single clamping lever that quickly and easily locks and unlocks the three sections.

Designed with dual-spiked feet, this 100mm bowl tripod includes rubber feet that feature a quick release design for easy attaching and removal.
A flowtech Carry Handle is included to enable carrying your flowtech system in one hand.

° Sachtler Rotating Carry Handle for flowtech Tripods with aktiv Heads
For Sachtler flowtech users adding an aktiv head, the Rotating Carry Handle allows spreading the tripod legs fully flat without having to remove the handle.
Rotating upwards, it gets completely out of the way. When used with an aktiv head, the flowtech tripod is able to lie flat, but the standard flowtech carry handle does not allow it.
This rotating handle provides a solution while also allowing you to carry the tripod.

° Sachtler ENG 2 Padded Bag
The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long.
The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.

Sachtler aktiv10T Touch & Go Fluid Head with SpeedLevel & 7-Step Drag (100mm)
Camera Plate
Camera Plate Features: Quick Release, Sliding Balance Plate
Camera Plate Type: Touch & Go Plate S
Camera Mounting Screw:
° 1 x 1/4"-20 Male
° 1 x 3/8"-16 Male
Safety Lock: Yes

Head
Base Mount: 100 mm Half Ball
Camera Platform Adjustment: Yes, (2.4" / 61.0 mm)
Counter Balance: Incremental 15-Step Plus 0
Pan Handle Fittings: 2 x Rosette
Included Pan Handle Length: 16.77" / 42.6 cm
Bubble Level: 1 x Illuminated

Pan & Tilt
Drag Control
° Pan: Stepped 7-Step Plus 0
° Tilt: Stepped 7-Step Plus 0
Drag Type: Fluid
Vertical Tilt: +90° to -70°
Panning Range: 360°
Independent Pan Lock: Yes
Independent Tilt Lock: Yes

General
Load Capacity: 0 to 26.5 lb / 0 to 12 kg
Operating Temperature: -40 to 140°F / -40 to 60°C
Weight: 6.6 lb / 3 kg
Packaging Info
Package Weight: 9.53 lb/4.32 kg
Box Dimensions: 18 x 9.9 x 7.3"/46 x 25 x 19 cm

Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet
General
Head Mount Type: 100 mm Bowl
Maximum Working Height:
° 61.02" / 155 cm (with Spreader)
° 60.24" / 153 cm (without Spreader)
Minimum Working Height:
° 20.47" / 52 cm (with Spreader)
° 10.24" / 26 cm (without Spreader)
Closed Length: 26.8" / 68 cm
Materials: Carbon Fiber
Weight: 9.04 lb / 4.1 kg

Legs
Leg Lock Type: Flip Lock
Leg Positions: Locking 3 Positions and Continuously Adjustable
Independent Leg Spread: Yes
Leg Sections: 3
Feet Features: Rubber, Removable, Dual Spiked
Spreader: Mid-Level

Packaging Info
Package Weight: 13.5 lb/6.12 kg
Box Dimensions: 28.5 x 7.4 x 7.1"/72 x 19 x 18 cm

Sachtler Rotating Carry Handle for flowtech Tripods with aktiv Heads
Accessories
Mount Type: 3/8"-16 Male

Packaging Info
Package Weight: 0.295 lb/134 g
Box Dimensions: 6.25 x 4.25 x 1.35"/16 x 11 x 4 cm

Sachtler Attachment Mount for flowtech 75 Tripod
General
Accessory Type: Tripod attachment mount
Accessories
Intended For: Tripod

Packaging Info
Package Weight: 0.04 lb/18 g
Box Dimensions: 1.3 x 1 x 0.9"/3 x 3 x 2.30 cm

Sachtler ENG 2 Padded Bag
Carrying/Transport Options: Connecting Handles, Shoulder Strap
Type of Closure: Zipper
Exterior Material: Cordura, Nylon
Padded: Yes
Interior Dimensions:
° H: 7.9 x W: 8.5 x L: 35.4" / H: 20.1 x W: 21.6 x L: 89.9 cm
Weight: 3.6 lb / 1.6 kg

Packaging Info
Package Weight: 5.6 lb/2.54 kg
Box Dimensions: 39 x 12 x 5"/99 x 30.50 x 13 cm
