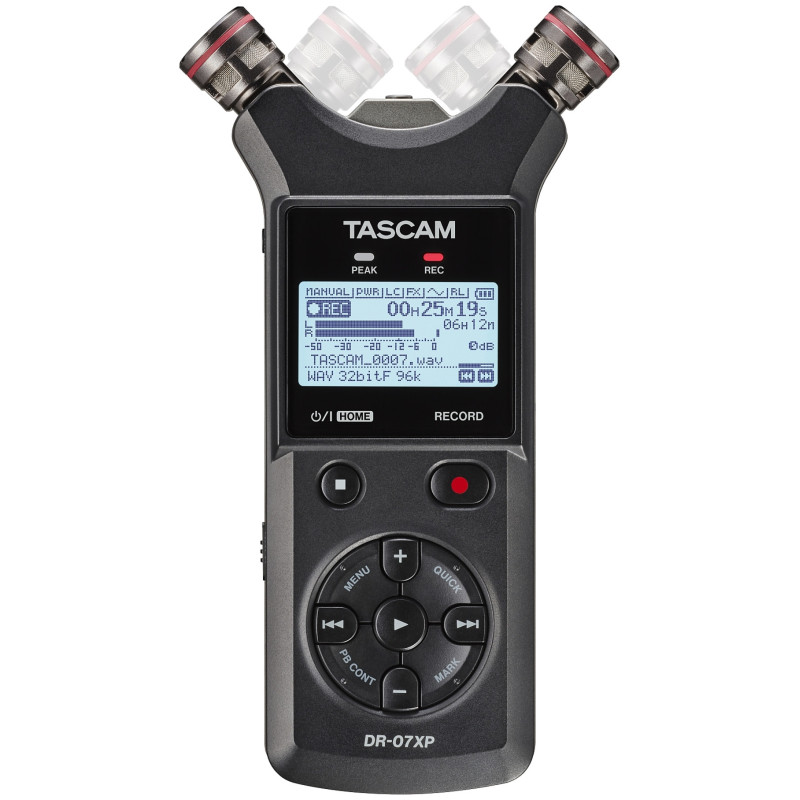

Tascam Stereo Handheld Audio Recorder With USB Audio Interface and Adjustable Microphones (32-Bit Float Mobile Recording)

The DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more.
With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound.
With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.

Adjustable Stereo Condenser Microphones
The DR-07XP features stereo condenser microphones with adjustable A-B or X-Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.

Simplicity in Your Palm
With the DR-07XP, the complexities of audio recording are a thing of the past.
Easily access every feature from the palm of your hand.
Plus, the backlit LCD screen means no squinting, just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio
The DR-07XP isn't only a powerful portable recorder ? it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

General
Recording media: microSD/microSDHC/microSDXC card (up to 512 GB)
Recording/playback format:
WAV: Sampling frequency: 44.1/48/96 kHz | Quantization bit depth: 16-bit / 24-bit / 32-bit float
MP3: Sampling frequency: 44.1/48 kHz | Bit rate: 32/64/96/128/192/256/320 kbit/s
Number of channels: Input channels: 2 (stereo) | Recording tracks: 2 (stereo)

Analogue audio inputs and outputs
Microphone/External input (can provide plug-in power): 3.5-mm stereo mini jack
Input impedance: greater than or equal to 18 kO (plug-in power off) | greater than or equal to 2 kO (plug-in power on)
Nominal input level: -20 dBV
Maximum input level: -4 dBV
Headpones/Line output: 3.5-mm stereo mini jack
Output impedance: 12O
Nominal output level: -14 dBV (10 kO load)
Maximum output level: +2 dBV (10 kO load)
Maximum output power: 20 mW + 20 mW (32 O load)
Working impedance: 16-250 O
Built-in loudspeaker: 0.3 W (mono)

Control inputs and outputs
USB: Type-C connector
Format: USB 2.0 HIGH SPEED mass storage class | USB 1.1 FULL SPEED audio class
USB Audio:
- Sampling frequency: 44.1/48 kHz
- Quantization bit depth: 24 bit
- Number of audio inputs: 2 channels
- Number of audio outputs: 2 channels

Audio performance
Frequency response:
20 Hz - 20 kHz, +0/-1 dB
(MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA)
20 Hz - 22 kHz, +0/-1 dB
(MIC/EXT IN to LINE OUT, 48 kHz, JEITA)
20 Hz - 40 kHz, +0/-1.5 dB
(MIC/EXT IN to LINE OUT, 96 kHz, JEITA)
Total harmonic distortion ratio (THD+N): less than or equal to 0.01 % (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA)

Power supply and other specifications
Power supply:
- 2 AA batteries (alkaline or NiMH, sold separately)
- USB bus power from a computer
- Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A)
Power consumption: 1.7 W / 5 V, 0.5 A (maximum)
Permissible operating temperature range: 0 -40°C
Dimensions (W × H × D):
- 68 mm × 160 mm × 27 mm (microphones in XY configuration)
- 90 mm × 160 mm × 27 mm (microphones pair in AB configuration)
Weight: 184/136 g (with/without batteries)
